RME / ADI-6432R

RME's 2 x 64-channel MADI/AES converters are housed in a 2U rack. Typical applications include using two ADI-6432s as a digital multicore, or using the ADI-6432 in combination with an interface such as an HDSPe MADI card as an AES/EBU front end.

MADI-AES/EBU Format Converter
Number of Channels: 64
Input/Output Connectors:
- MADI Coaxial (BNC) x 1
- MADI Optical (Duplex SC) x 1
- AES/EBU (D-Sub 25-pin) x 8 (Input/Output): 64 channels, TASCAM format/inch screws
- Bit Depth: 24-bit
- Sampling Frequency: 44.1/48/88.2/96/17.64/192 kHz
- Dimensions: 48.3 (W) x 8.8 (H) x 24.2 (D) cm
- Weight: 2 kg

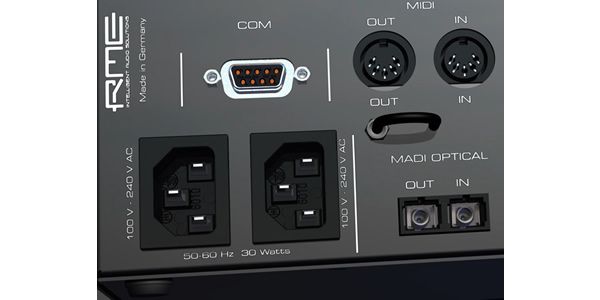

The RME ADI-6432R is identical to the ADI-6432, but features two independent power supplies. The two power supplies operate simultaneously and can be connected to two different power sources for redundant mode. This allows the ADI-6432R to continue operating uninterrupted if one of the power sources fails.
