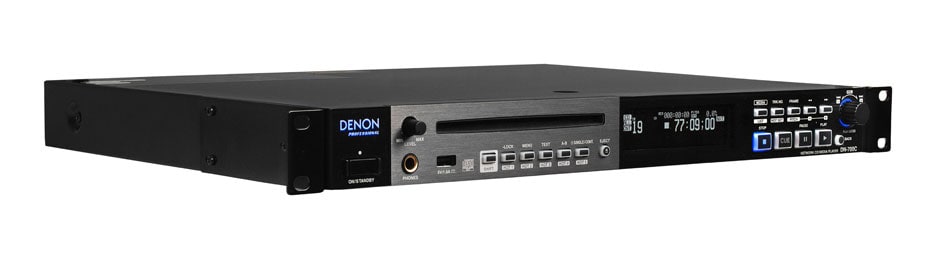

DENON / DN-700C

The DENON DN-700C is a CD/media player equipped with the diverse functions required for professional audio equipment, supporting playback of a variety of audio sources. In addition to playing audio files from CD media and USB-connected storage, it also supports streaming audio playback via a network.

■Features
- Plays CDDA and data CDs (WAV, MP3, AAC, and AIFF files).
- Streams audio over the network and copies audio files from a server to local storage (USB memory).
- Remotely controls the DN-700C via the network using a web browser on a PC or tablet or dedicated software (compatible with PCs and Macs).
- Features a pitch control function that adjusts the CD playback speed, and a master key control function that changes only the playback speed while maintaining the original key.
- Dedicated app (Pitch Control App; downloadable from the App Store) displays track information and controls playback (including pitch and master key control) on iPod/iPhone.
- External control is possible via serial and parallel ports. Additionally, by connecting the dedicated remote controller (RC-F400S, sold separately) to the serial port, it can be used as a 20-point hot start system.

■Specifications
・Compatible Media: CD, USB Memory, USB HDD, iPod
・Playback Format/File System
CD: CD-DA (CD TEXT), CD-ROM (ISO9660)
USB: FAT16/FAT32/HFS+
・File Extensions: WAV, AIFF, AIF
Quantization Bit Rate: 16/24-bit
Sampling Frequency: 96, 48, 44.1 kHz
・Playback Formats
MP3: File Extension - MP3 / Bit Rate: 32 - 320 kbps and VBR / Sampling Frequency: 48, 44.1 kHz
AAC: File Extension - M4A, AAC / Bit Rate: 64 - 320 kbps and VBR / Sampling Frequency: 48, 44.1 kHz
・Number of Channels: 2 (Stereo), 1 (Mono)
・Audio Frequency Response: 20 Hz - 20 kHz (±0.5dB)
- Pitch Adjustment Range: -16% - +16%
- Trim Adjustment Range: ±2.0 dB

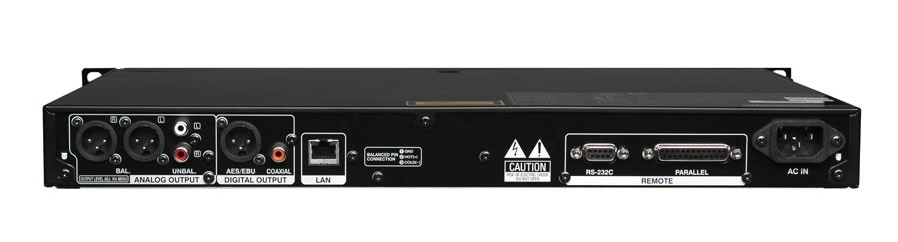

- Analog Balanced Output L/R Terminals: XLR Terminals (1: GND, 2: Hot, 3: Cold)
- Analog Unbalanced Output L/R Terminals: RCA Terminals
- Digital Balanced Output Terminals: XLR Terminals (1: GND, 2: Hot, 3: Cold)
- Digital Unbalanced Output Terminals: RCA Terminals
- Headphone Output: 20 mW / 32 Ω
- Dimensions: 482.6 (W) x 44.0 (H) x 324.8 (D) mm
- Weight: 4.1 kg
