CLASSIC PRO / LAV4+UT63LCD+UD810

This is a new model of the CWT804LS. It features an auto scan mode that automatically searches for channels without interference, and a SYNC function that sends receiver settings to the transmitter. You can select any one of the 16 channels in the B band and use it. Up to four sets can be used in the same area.

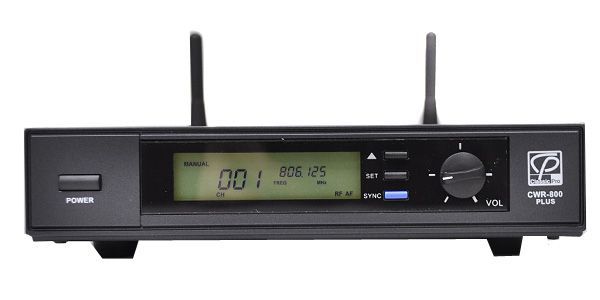

Receiver

■ Receiving Frequency: B-band
■ Oscillation Method: PLL Synthesizer
■ Frequency Stability: ±0.005%
■ S/N Ratio: >94dB
■ AF Response: 80Hz - 16kHz
■ T.H.D: <1% (at 1kHz)
■ Dynamic Range: >100dB
■ Tone Signal: 32.768kHz
■ Output Terminal: Balanced/Unbalanced
■ Power Supply: DC12V
■ Current Consumption: 260mA (Max)
■ Dimensions: 200 x 42 x 183mm

Beltpack Transmitter

■ Transmitting Frequency: B-band
■ Channel Setting: Synchronizing
■ Transmitting Power: 10mW (Max)
■ Transmitting Method: PLL Synthesizer
■ Frequency Stability: ±0.005%
■ T.H.D.: <1% (at 1kHz)
■ Tone Frequency: 32.768kHz
■ Power Consumption: 120mA ±10mA
■ Dimensions: 65 x 100 x 27mm
■ Power Supply: 2 x AA alkaline batteries

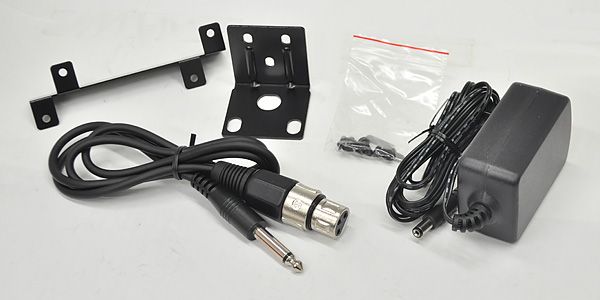

*Rack mounting brackets for a single receiver are sold separately (CWR800RK).
Brackets for connecting two units are included with each unit.
