audio technica / AT4050ST

The audio-technica AT4050ST is a stereo condenser microphone with a large twin diaphragm. This stereo version of the world-famous best-selling AT4050 features two switchable stereo modes: MS Direct, LR Wide, and LR Narrow. The newly developed ""Double Wave Diaphragm (PAT.P.)"" and unique transformerless circuitry ensure a flat frequency response, wide dynamic range, and low noise.

■Condenser microphone, DC bias condenser type
■Cardiac + bidirectional

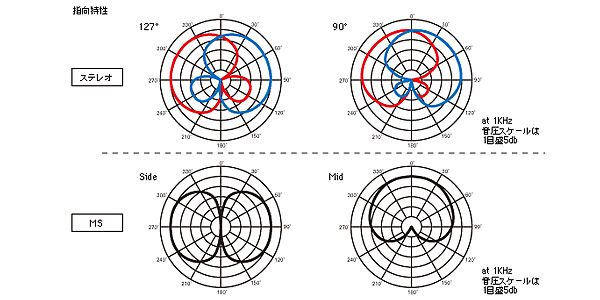

■Stereo angle: Switchable (127°, 90°)

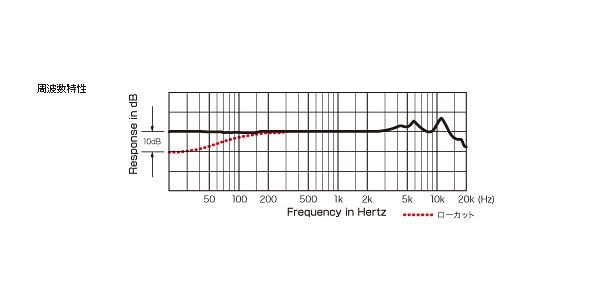

■Frequency response: 20Hz-18kHz
■Output impedance: 50Ω
■Sensitivity: Stereo 90°: -42dB, Stereo 127°: -41dB, Mid: -36dB, Side: -36dB
■Dynamic range:
■Maximum SPL: 149dB S.P.L.
■Equivalent noise:
■Self-noise:
■S/N ratio: Stereo 90°: 69dB, Stereo 127°: 78dB, Mid: 79dB, Side: 77dB
■Output connector: Microphone side (XLR-F5PIN), Output side (XLR-M3PIN)
■ Power supply: Phantom DC 48V, 6.4mA
■ Filter: 80Hz, 12dB/octave
■ Pad switch: 10dB

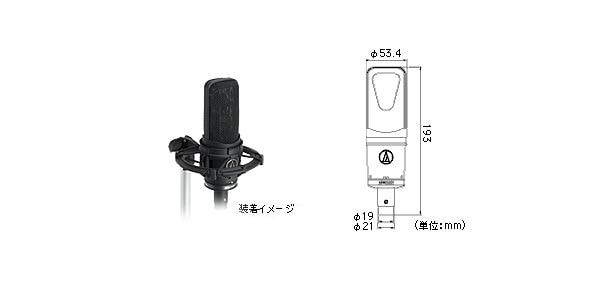

■ Size/Weight: Width 53.4mm, Shaft diameter 21mm, Length 193mm, 517g
■ Accessories: Dedicated shock mount (AT8449), dust cover, dedicated cable (5.0m), microphone carrying case

~From the manufacturer's website~
- This is a stereo microphone based on the global best-selling AT4050.
- While retaining the same large-diameter 1-inch twin diaphragm that delivers excellent directional characteristics across a wide frequency range, it features independent, high-sensitivity microphone units with cardioid and bidirectional patterns. It can be set to MS Direct or two stereo modes: LR Wide (127°) and LR Narrow (90°). It is suitable for a variety of applications, from ambient recording in the studio, where accurate positioning is required, to on-location surround recording.

- A unique transformerless circuit delivers a high-quality, flat response, eliminating low-frequency distortion and ensuring stable transient response.

- Utilizes a newly developed ""Double Wave Diaphragm (PAT.P.)"" for class-leading sensitivity and ultra-low noise levels.

- Includes a dedicated shock mount, a 5-pin XLRM to 2 x 3-pin XLRM microphone cable, a dust cover, and a microphone carrying case.

- An 80Hz, 12dB/octave high-pass filter effectively reduces background noise, and a -10dB pad switch is standard, making it useful in any environment.

- Enhanced RF protection against mobile phones, wireless intercoms, and radio waves. Reduces noise and eliminates problems in challenging environments.
