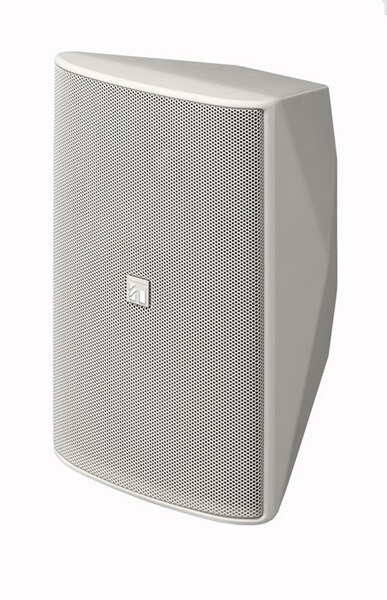

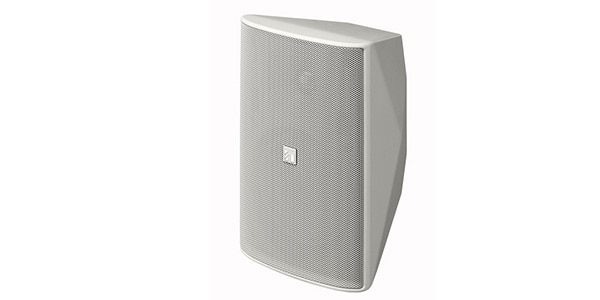

TOA / F-1300WM compact speaker

Compact speaker, 30W, high impedance, single speaker, white This wide-directivity, two-way compact speaker system features high efficiency, wide bandwidth, and high input resistance. Using included or optional mounting brackets, it can be mounted to suit various locations and applications.

Compact Speaker, 30W, High Impedance, Single Unit, White

This wide-directivity, 2-way compact speaker system features high efficiency, wide bandwidth, and high input resistance. Using included or optional brackets, it can be mounted to suit your location and application.

■ Enclosure Type

Bass-reflex
■ Rated Input Power

30W
■ Rated Impedance

330Ω (30W), 1kΩ (10W), 3.3kΩ (3W), 10kΩ (1W)
■ Output Sound Pressure Level

90dB (1W, 1m) in a semi-free sound field
■ Frequency Response

80-20,000Hz, -10dB in a semi-free sound field
■ Crossover Frequency

2kHz
■ Dispersion Angle

Horizontal: 110°, Vertical: 100°
■Speakers Used
Woofer: 13cm cone type
High-frequency: 25mm dome tweeter
■Speaker Type
10W, 30W: L-class (92dB(A) or higher when measured with the second signal of the audio alarm according to the Fire Service Act Enforcement Regulations)
3W: M-class (87dB(A) or higher when measured with the second signal of the audio alarm according to the Fire Service Act Enforcement Regulations)
1W: S-class (84dB(A) or higher when measured with the second signal of the audio alarm according to the Fire Service Act Enforcement Regulations) )
■Input Terminal
Push Terminal
■Finish
Enclosure: HIPS, White (Approx. Munsell N9.5)
Punched Net: Surface-treated steel plate, White (Approx. Munsell N9.5), Painted
Joint Fittings, Wall Fittings: Rolled steel plate, t1.6, White (Approx. Munsell N9.5), Painted
Speaker Fittings: Aluminum Die-cast, White (Approx. Munsell N9.5), Painted
■Dimensions Dimensions: 162 (W) x 250 (H) x 161 (D) mm
Weight: 3.6 kg (including included brackets)
Accessories: Speaker bracket x 1, Joint bracket x 1, Wall bracket x 1, Bracket assembly screws x 1
Optional accessories: Board hanger bracket: HY-BH10B
Ceiling mounting bracket: HY-CM10W (for installing speakers horizontally)
Cluster bracket: HY-CL10B
Speaker stand: ST-16A
