TASCAM / MD-CD1MKIII

The TASCAM MD-CD1MKIII is a professional-grade CD player/MD recorder that offers a space-saving 2U footprint while providing a variety of on-site functions. It's the successor to the classic MD-CD1MKII multifunction device. Its CD player and MD recorder can be operated independently or simultaneously, and it offers exceptional ease of use, including continuous playback and CD-to-MD dubbing at up to 4x speed. It's ideal for a variety of settings, including broadcasting stations, facilities, and event venues.

■CD Player/MD Recorder

The CD player and MD recorder can be operated independently and simultaneously, and features include continuous playback and up to 4x speed dubbing from CD to MD, making the most of the combo unit's benefits. The CD player can play not only audio CDs, but also WAV and MP3 files. It also supports CD-R/CD-RW discs. Pitch control from -50% to +16% can be adjusted using a dedicated knob on the front panel, ensuring intuitive and reliable operation. The MD recorder supports LP2 and LP4 long play modes. Both the CD player and MD recorder are equipped with comprehensive playback functions such as auto cue and auto ready.

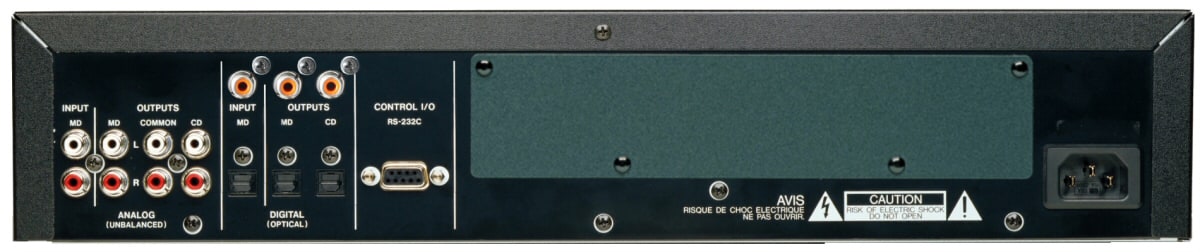

Equipped with unbalanced analog inputs and outputs, as well as coaxial and optical digital inputs and outputs. Ideal for a variety of locations, including concert halls, stores, broadcasting stations, theme parks, museums, and event venues, the unit also supports RS-232C serial control, making it suitable for installation in locations requiring remote control.

≪Main Specifications≫
CD player compatible with CD/CD-R/CD-RW discs

Playback of audio CDs and CDs recorded with WAV and MP3 files

MD recorder compatible with SP (stereo), MONO, LP2, and LP4
(Recording and playback can be performed in different modes on the same MD disc)

CD player and MD recorder can be used independently

Program playback settings can be saved for up to 100 discs combined, including CD and MD
(MP3 and WAV files occupy two tracks of storage space, reducing the number of discs that can be saved)

RCA unbalanced analog CD output

COAXIAL digital CD output

OPTICAL digital CD output

RCA unbalanced analog MD input/output

COAXIAL digital MD input/output

Optical digital MD output

2U rack mount size

≪Changes from the MD-CD1MKII≫
Playback of WAV files and CD discs Save program playback settings for up to 100 discs, including CDs and MDs.

COAXIAL digital input/output (CD output and MD input/output).

MD recorder pitch control is not supported.

Direct playback of tracks 1-10 is possible using the PS/2 keyboard's numeric keypad.

Panel lock function prevents accidental operation.

Disc eject block.

Specifications:
CD Player
- Discs: 12cm/8cm, CD/CD-R/CD-RW
- Playable formats: Audio CD (CD-DA), WAV, MP3
MD Recorder
- Discs: MiniDisc
- Recording modes: STEREO/MONO/LP2/LP4
- Recording time (using an 80-minute disc): 80 minutes (standard), 160 minutes (MONO), 160 minutes (LP2), 320 minutes (LP4)
Analog Input
- Unbalanced input (MD): RCA
Analog Output
- Unbalanced Output (CD/MD/COMMON): RCA
PHONES
- Headphone Output: Standard stereo jack
- Maximum Output: 20mW + 20mW (32Ω load)
Digital Input
- COAXIAL (MD): RCA
- OPTICAL (MD): TOS
- Format: Compliant with IEC 60958-3 consumer standard (S/PDIF)
Digital Output
- COAXIAL (CD/MD): RCA
- OPTICAL (CD/MD): TOS
- Format: Compliant with IEC 60958-3 consumer standard (S/PDIF)
Power Consumption: 22W
Dimensions: 483 (W) x 94 (H) x 308 (D) mm
Weight: 5.4 kg
