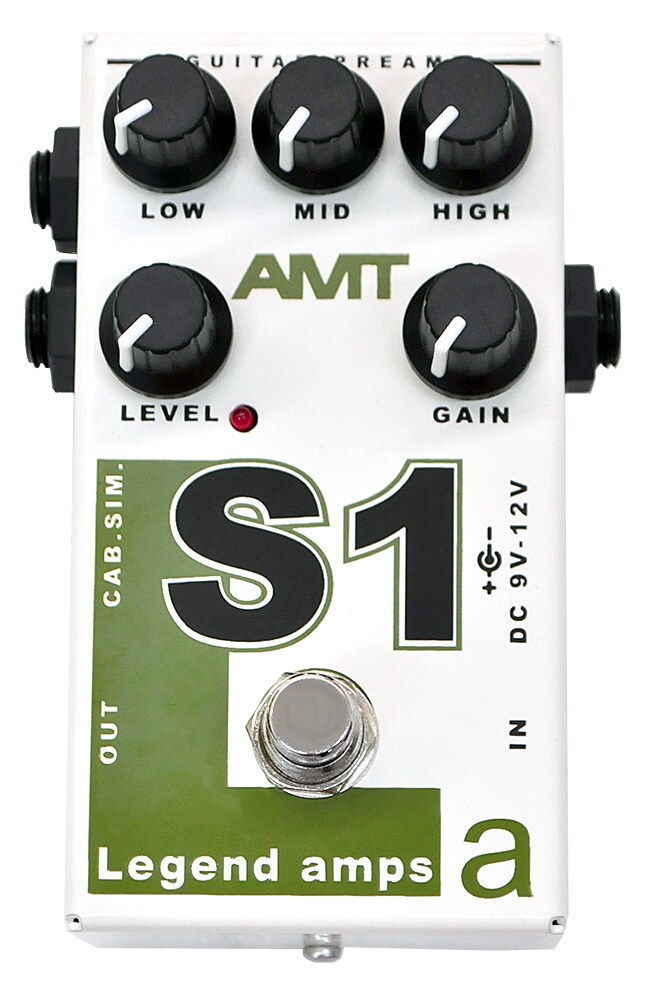

AMT ELECTRONICS / S-1

An amp simulator / preamp pedal that reproduces the sound of a Soldano amp preamp. By connecting to the FX RETURN of a guitar amp, you can create sounds that are not affected by the character of the amp. This model is recommended for those who want to produce their own sound with any amplifier.

[直輸入品][Direct Import]

■ Guitar amp simulator / preamp
A pedal-type preamp series that perfectly reproduces the sound of a well-known guitar amp preamp with a compact analog circuit. It also has a built-in cabinet emulator and supports silent recording.

■ Soldano type
The S-1 emulates the Soldano drive channel. It reproduces that glossy and tense tone and a dynamic and tough distortion sound.

■ Connection
・ IN:
Connect the guitar.

・ OUT:
You can get the output from the preamplifier. Connect to the FX RETURN or power amp of your guitar amp.

・ CAB.SIM .:
Outputs a sound with cabinet emulation added to the output from the preamp. It can be directly connected to a mixer or interface.
When this terminal is not connected, the power consumption is automatically reduced from 6mA to 4mA, which is also excellent in power saving.

■ Specifications
・ TRUE BYPASS
-Power supply: AC adapter / DC9V-12V Center minus (sold separately) or battery
・ Maximum + 10 dB gain
-Energy saving mode: When the "CAB.SIM." Terminal is not connected, current consumption: 6mA → 4mA
