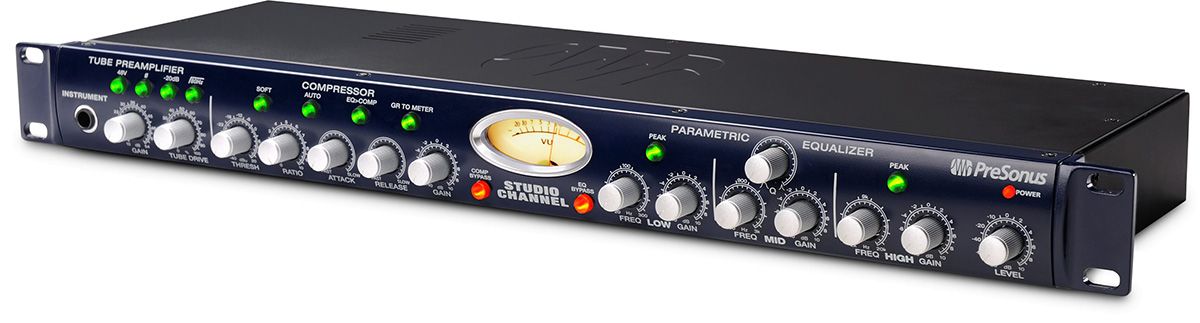

PRESONUS / Studio Channel Tube Channel Strip

A channel strip consisting of a Class A 12AX7 tube mic preamplifier, a VCA-based compressor, and a studio-grade 3-band parametric equalizer. It supports all types of input sources such as keyboards and synths, not just microphones. It supports a wide range of situations such as realistic vocals, clear acoustic guitars, thick and solid basses, dynamic pianos, and fine snares.

■ Type: 1ch, tube, mic preamp, comp, EQ, channel strip
■ Frequency characteristics: 10Hz-50kHz
■ Dynamic range: 115 dB or more
■ THD + noise: less than 0.050% (0% TUBE DRIVE), less than 0.10% (100% TUBE DRIVE)
■ Power consumption: 16W
■ Input terminal: XLR, TRS phone
■ Output terminal: XLR, TRS phone
■ Maximum sound pressure level: + 22dBu
■ Dimensions: 48.2 x 4.5 x 13.9 cm, 1U
■ Weight: 2.26kg
■ Power supply (power adapter included)
Type: Linear
Input: 16VAC / 1000mA
Power consumption: 16W
AC adapter drive

[Mic preamplifier]
・ GAIN, TUBEDRIVE
・ Supports + 48V phantom power
・ Pad switch: 0dB / -20dB
・ Phase switch: 0 ° / 180 °
・ High-pass filter switch (ON / OFF): 80Hz, -3dB

【compressor】
・ Thereshold (-40dBu ～ + 2dBu), Ratio (1: 1 ～ 2: 1), Attack (0.1 ～ 200ms), Release (0.05ms ～ 3S), Gain (-10dB ～ + 10dB)
・ VU meter (Gain Reduction or Output)

[Parametric equalizer]
・ LOW: Frequency (40-500Hz), Gain (± 10dB), Q (0.7)
・ MID: Frequency (200Hz-3kHz), Gain (± 10dB), Q (0.7-2.5)
・ HIGH: Frequency (2kHz to 20kHz), Gain (± 10dB), Q (0.7)
