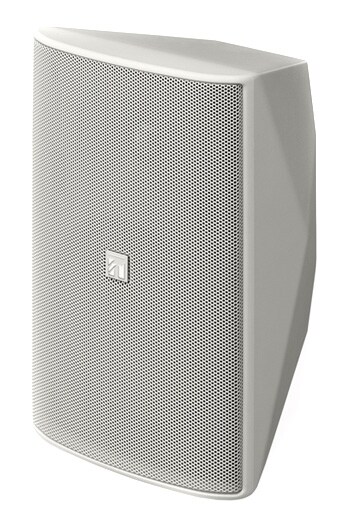

TOA / F-1300W

The TOA F-1300W is a wide-directivity, compact two-way speaker system designed for high efficiency, wide bandwidth, and high input resistance. It has a low impedance of 8 ohms and an input capacity of 150 watts (PGM). By using the included or separately sold brackets, it can be installed to suit the installation location and application.

■Compact Speaker
■13cm x 1
■150W
■8Ω
■White
■1 Speaker

■Enclosure Type
Bass-reflex
■Power Rating
Continuous Pink Noise: 50W
Continuous Program: 150W
■Rated Impedance
8Ω
■Sound Pressure Level
90dB (1W, 1m) in a Semi-Free Sound Field
■Frequency Response
80-20,000Hz, -10dB in a Semi-Free Sound Field
■Crossover Frequency
2kHz
■Dispersion Angle
Horizontal: 110°
Vertical: 100°
■Speakers Used
Woofer: 13cm Cone Type
High-Frequency: 25mm Dome Tweeter
■Input Terminal
Push Terminal
■Finish
Enclosure: HIPS White (Approximate Munsell N9.5 Color)
Punched Net: Surface Treatment Steel plate, white (approximate Munsell N9.5 color), painted
Joint bracket, wall bracket: Rolled steel plate, t1.6, white (approximate Munsell N9.5 color), painted
Speaker bracket: Aluminum die-cast, white (approximate Munsell N9.5 color), painted
■Dimensions
162 (W) x 250 (H) x 161 (D) mm
■Weight
3.1 kg (including brackets)
■Accessories
Speaker bracket... 1, Joint bracket... 1, Wall bracket... 1, Bracket assembly screws... complete set
■Sold separately
Board hanger bracket: HY-BH10B
Ceiling mounting bracket: HY-CM10W (for installing speakers horizontally)
Cluster bracket: HY-CL10B
Speaker stand: ST-16A
*Bolts and nuts for attaching the bracket to a wall or ceiling are not included.
