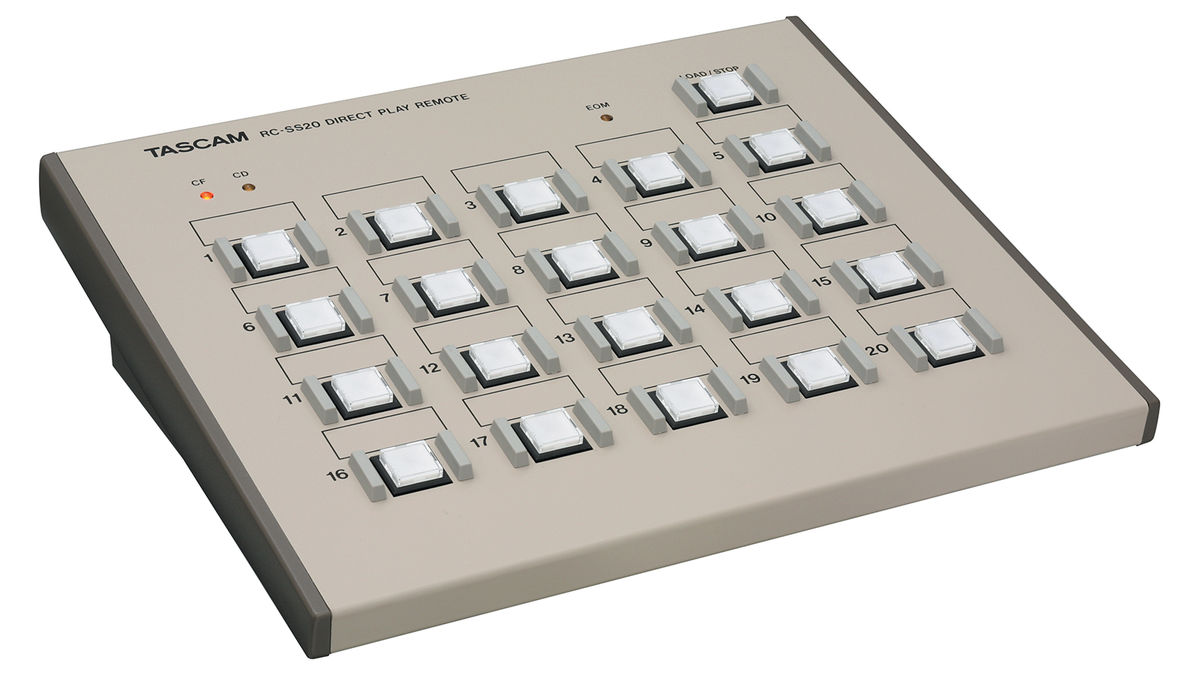

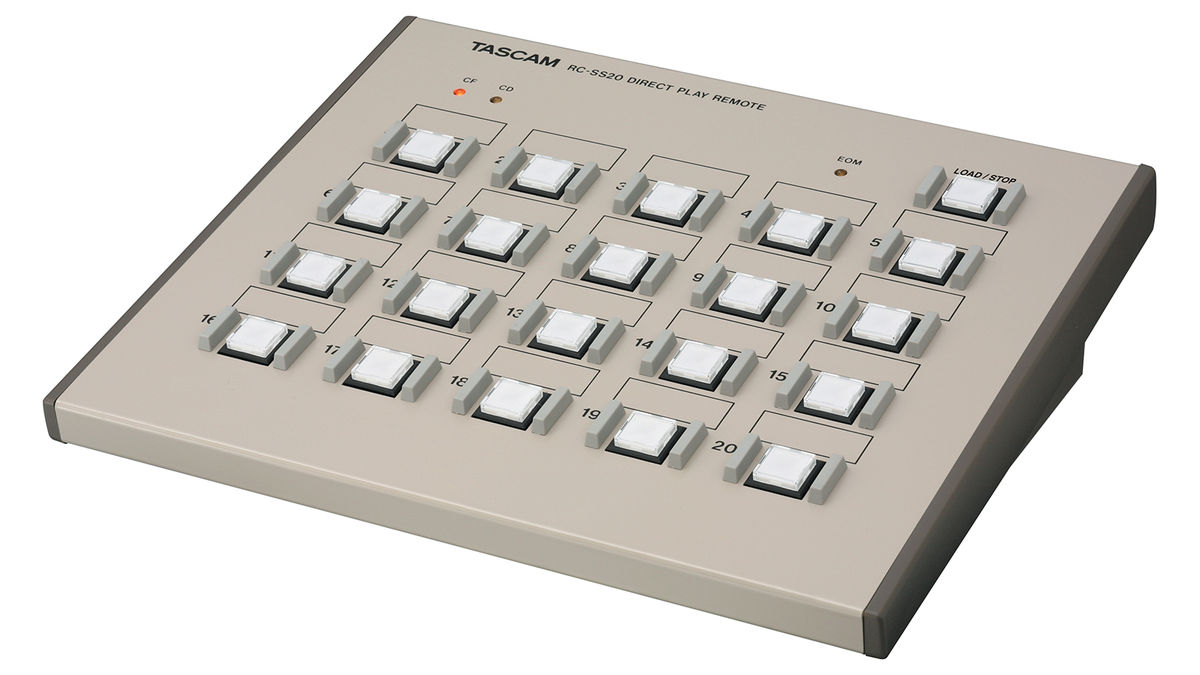

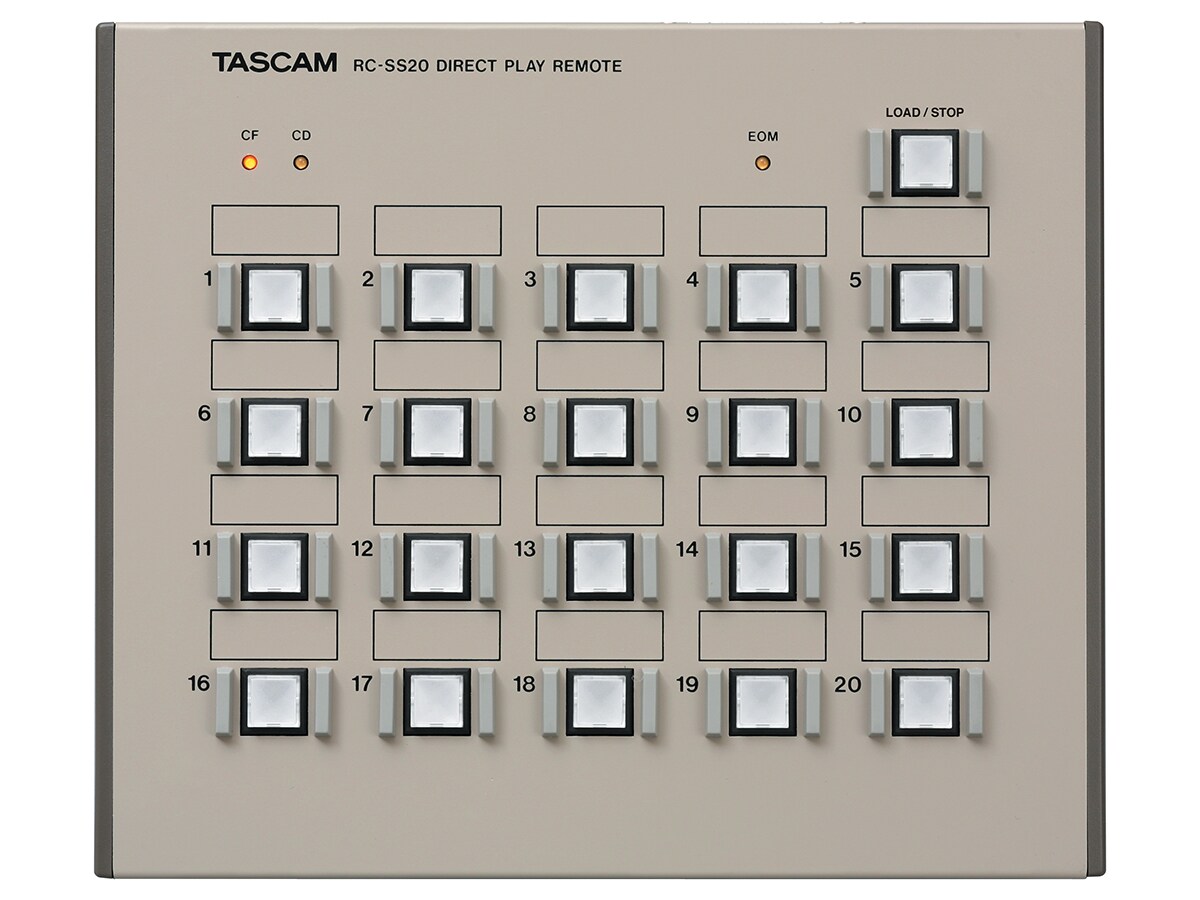

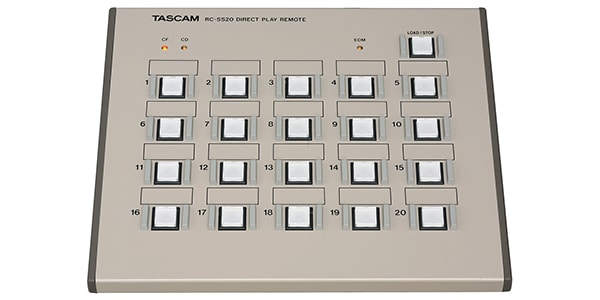

TASCAM / RC-SS20

The TASCAM / RC-SS20 is a remote controller compatible with TASCAM professional players. It allows direct playback of up to 20 tracks and flash start (push start) operation. It features illuminated keys for excellent visibility.

■ Controller for TASCAM Professional Players

[Product Specifications]

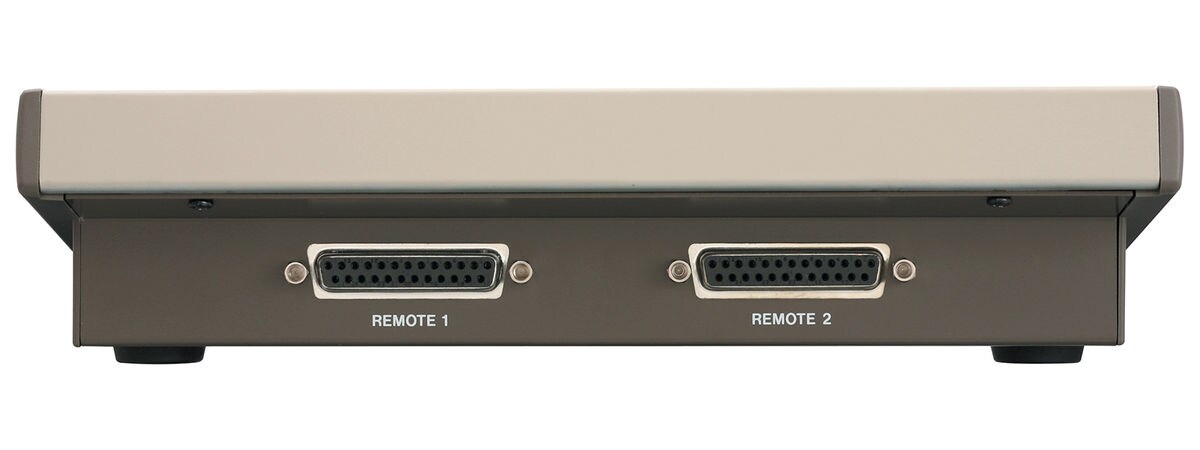

■ REMOTE 1
Connector: D-sub 25-pin
Compatible Models: HS-4000, HS-2000, HS-2, HS-8, CD-6010, SS-CDR250n, SS-R250n, SS-CDR200, SS-R200, SS-CDR1, SS-R1
■ REMOTE 2
Connector: D-sub 25-pin
Compatible Model: HD-R1
■ Power: Supplied from connected device
■ Power Consumption: Less than 500mW
■ Dimensions: 237 (W) x 58.5 (H) x 200.5 (D) mm
■ Weight: 1.2 kg
■ Accessories: Connection cable (PW-SS20), warranty card , Instruction Manual

[When Connected to HD-R1]
- Direct play of up to 16 tracks possible
- The Direct Play key lights up during track playback
- The Direct Play key flashes while a track is waiting for playback
- Track playback can be stopped with the LOAD/STOP key
- EOM indicator shows when the HD-R1's BUSY2 is active
(BUSY2: Tally selected from Playback/Recording/End of Playback/Ducking in Progress/CF Card Slot Door Open/CF Card Media Full)
