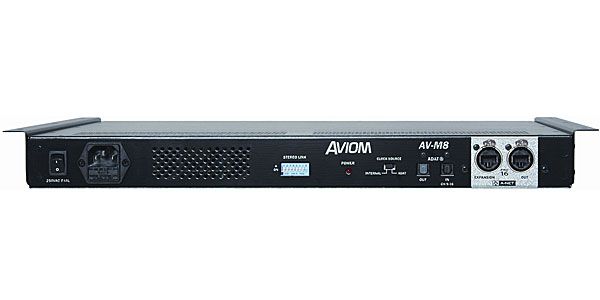

AVIOM / AVM8

This is an 8-channel microphone input module. Two units can be linked together to provide 16 channels.

■Cue System Pro16 Series
■8-channel microphone input module
■Can be connected to two units for 16 channels.
■6 channels: Mic/Mic level
■2 channels: Balanced Line or Mic Input
■8 x Euroblock
■Gain Settings: +16dB to +64dB (10 settings), 6-position DIP switch
■Maximum Input Level: Mic=-2dBu, Line=+18dBu
■ADAT In/Out: A-Net routing
■+48V phantom power
■Low Cut switch
■100-240V 50-60Hz 60W
■Size: 1U x 245mm (D) 3.6kg
