LEHLE / 110203

LEHLE input selector. It has three inputs and two outputs, and can be used in stereo with TRS connections.

[直輸入品][Direct Import]

■Guitar Effects Pedal
■Input Selector
~From the Manufacturer's Website~

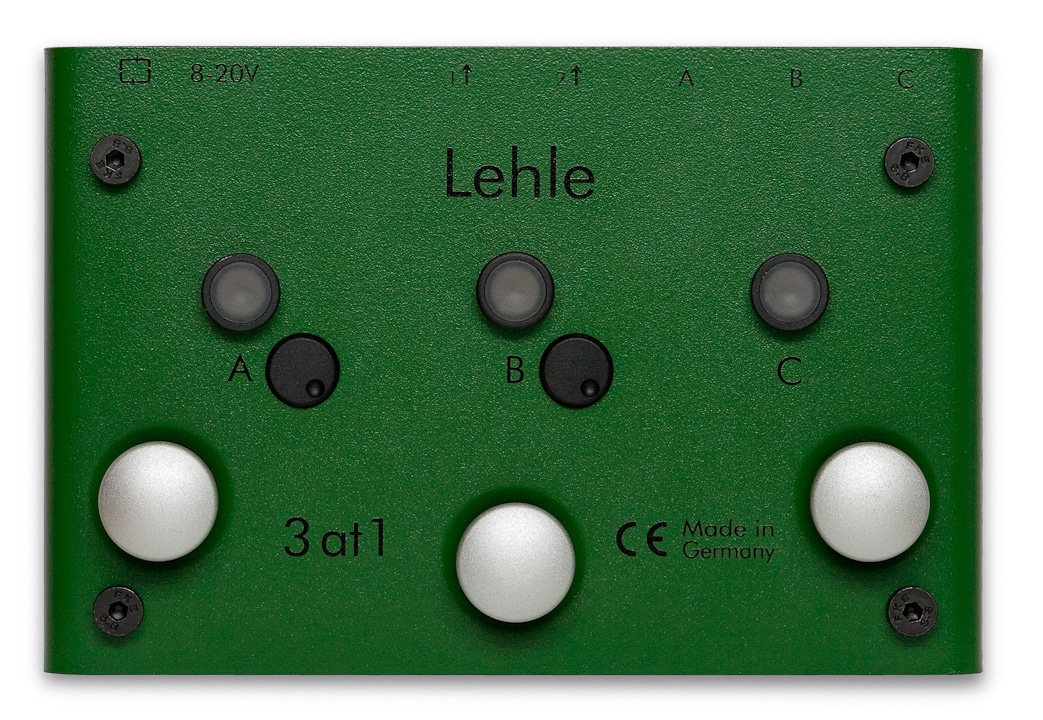

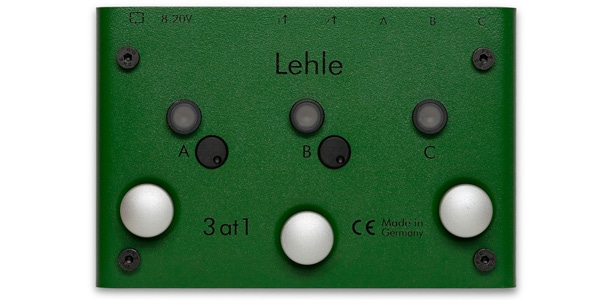

The Lehle 3at1 SGoS is an input selector. It has three inputs and two outputs, allowing stereo use with TRS connections. It has three operation modes. Mode 3 allows MIDI program change control (send and receive), enabling the linking of multiple Lehle SGoS pedals. Signal switching uses gold-plated relays, and the footswitches feature durable microswitches for superior durability.
Mode 1: The first press of the footswitch for each LED (Input A, B, or C) outputs that input to Output 1. A second press selects Output 2.
Mode 2: This is the same as Mode 1, until Output 2 is selected. Pressing it a second time mutes that output, meaning all outputs are muted.
Mode 3: The input selected for MIDI Program Change # is programmable. This means that you can program the unit to use other connected Lehle pedals (by changing the program change number sent by the footswitch depending on the pedal).
