LEHLE / 110201

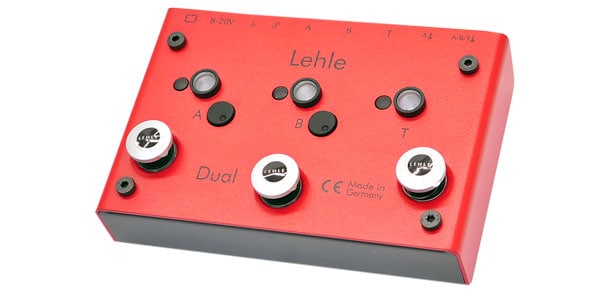

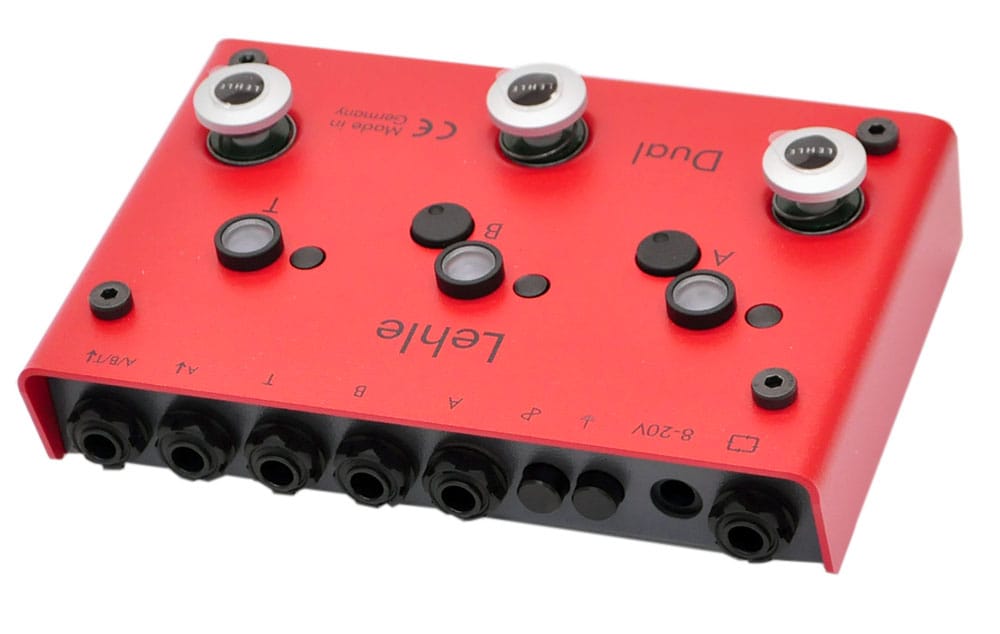

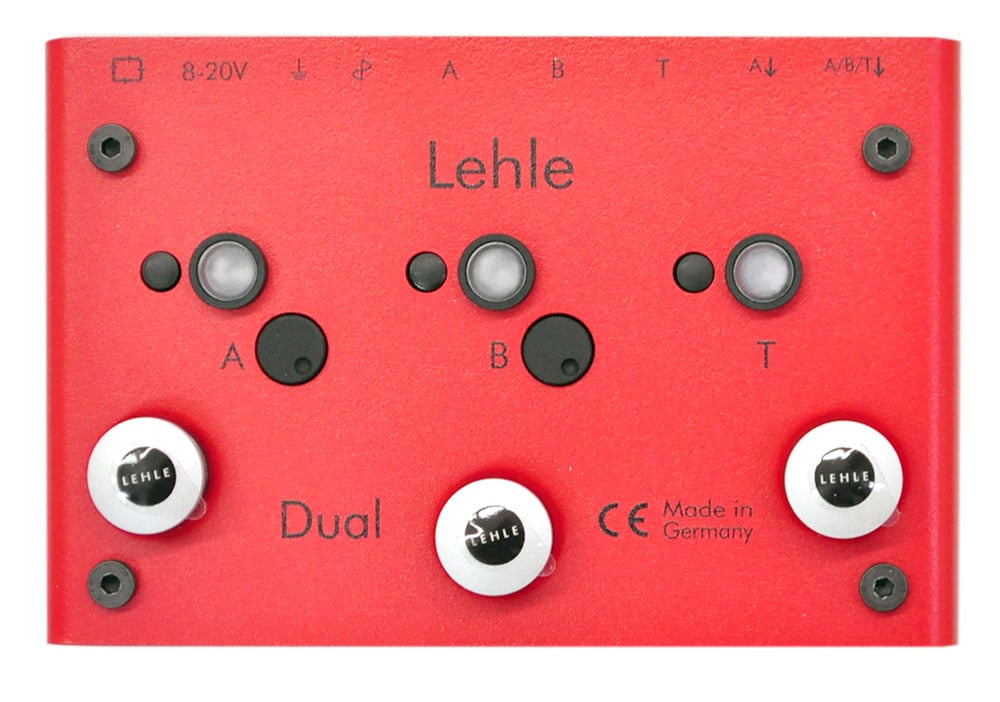

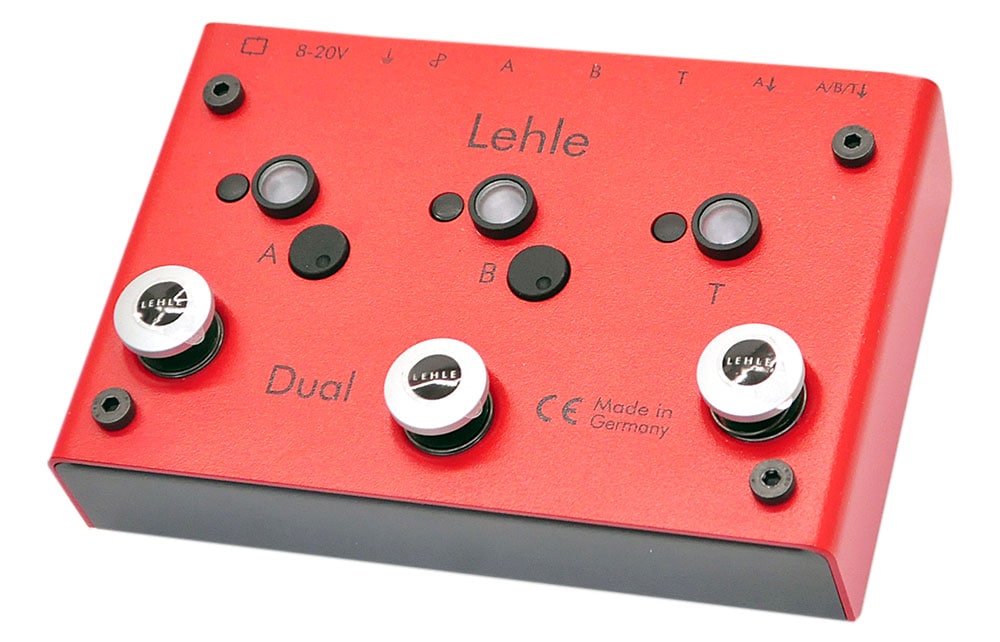

This guitar effect pedal from LEHLE can be used in four different modes with three outputs, making it ideal for a wide range of applications.

[直輸入品][Direct Import]

■Guitar Effects Pedal
■A/B Switcher
~From the Manufacturer's Website~
The Lehle Dual SGoS is essentially an A/B switcher, but A is isolated from B by a high-impedance, high-performance transformer, separating the grounds of amplifiers A and B and preventing hum caused by ground loops. It also has a tuning output (T), allowing these three outputs to be combined in four modes. Mode 3 also allows MIDI program change control (send/receive), allowing multiple Lehle SGoS pedals to be linked. Signal switching uses gold-plated relays, and the footswitch uses a durable microswitch for excellent durability.

Mode 1: Each LED (Output A, B, T) is independently turned on/off by the footswitch on the side of the footswitch. This is the default mode.

Mode 2: The left footswitch turns Output A on/off only. The right footswitch turns Output B on/off only. The center footswitch turns Outputs A and B on/off simultaneously. When both A and B are off, the T output is on.
Mode 3: The programming switches allow you to set the A/B/T output on/off when each foot switch is selected. MIDI program change # can also be programmed. This means that you can program the unit for other connected Lehle pedals. (The program change # sent varies depending on the pedal.)
Mode 4: The left foot switch turns either output A or B on. The center foot switch turns outputs A and B on simultaneously, or turns one of them off. The output that was turned on first will remain on. The right foot switch turns the T output on and turns A/B off.
