AUDIX / APS910

This is an AUDIX conversion adapter/microphone preamp compatible with the Audix ADX10, ADX20i, HT5 series, HT7 series, MicroD, MicroHP, and L5 series.

■ Phantom power adapter for Audix compact condenser microphones
■ Frequency response: 20Hz–20kHz
■ Output resistance: 200Ω
■ Input resistance: >50kΩ
■ Input power: Phantom power (9–52V)
■ DC output: 2.5VDC (max. 2mA)
■ Voltage gain: >-0.3dB

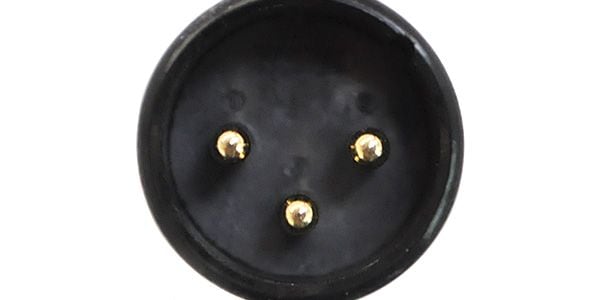

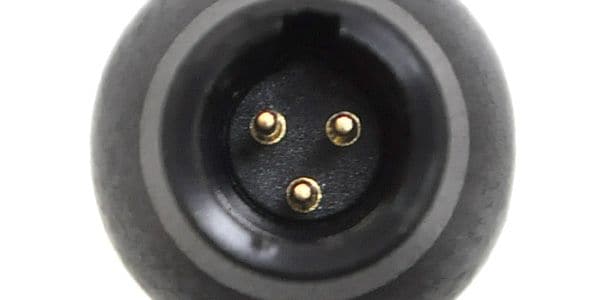

■ Connectors: XLR connector (PA system end), mini-XLR connector (male, microphone end)
■ Distortion: <0.03% (1kHz, 100mVrms), <1% (1kHz, 1Vrms)
■ Compatible models: Audix ADX10, ADX20i, HT5 series, HT7 series, MicroD, MicroHP, and L5 series
*Not compatible with Audix HT2. Use the HT2 in conjunction with the APS911.
■Size/Weight: Length 65mm, Width 20mm, 53g

*Requires phantom power (9-52V) from an external device.
*Cannot be used with HT2/HT5 headset microphones.
*Does not include a hook.
