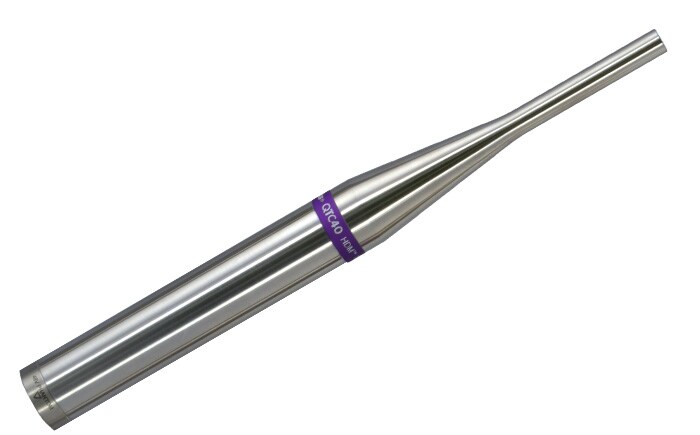

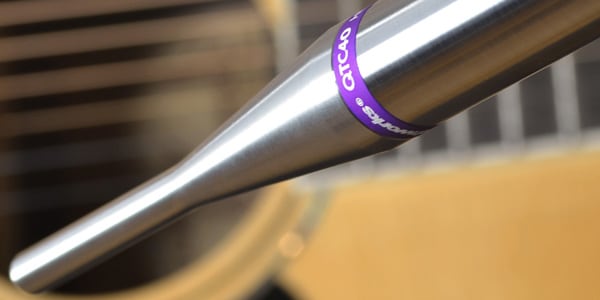

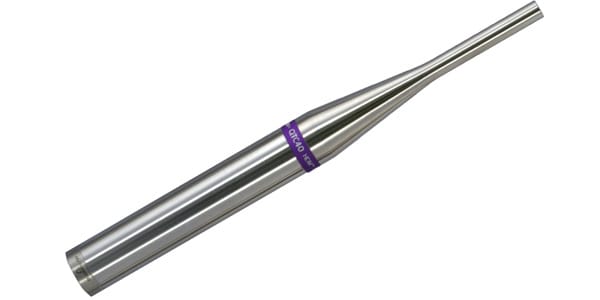

EARTHWORKS / QTC40

EARTHWORKS' QTC series omnidirectional condenser microphones are designed for measurement. They feature a flat frequency response, delivering sound that is as close to the original as possible. They are also suitable for low-volume sound sources, such as acoustic instruments and outdoor recordings.

■Small diaphragm condenser microphone
■Frequency response: 3Hz to 40kHz ±1dB
■Omnidirectional: Omnidirectional
■Sensitivity: 34mV/Pa (-29dBV/Pa)
■Phantom power: 24-48V Phantom, 10mA
■Maximum SPL: 140B SPL
■Output connector: XLR (pin 2+)
■Output impedance: 65Ω balanced (between pins 2 & 3)
■Signal-to-noise ratio: 20dB SPL equivalent (A weighted)
■Dimensions: 229mm x 22mm
