STAGE EVOLUTION / PROCLAMP

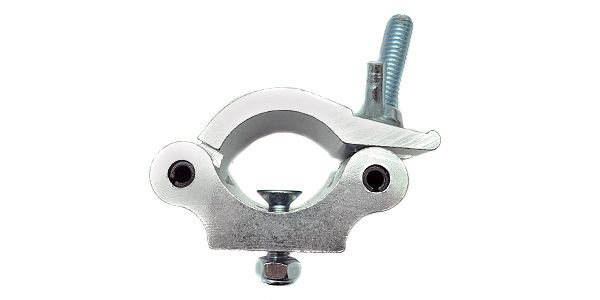

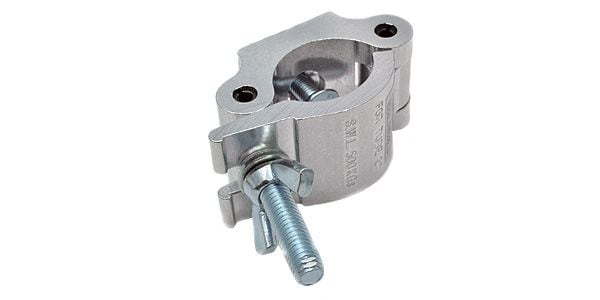

It is a clamp for heavy mirror scan and moving head.

■ Type: Lighting clamp
■ Compatible baton diameter: φ48 ~ 51mm
■ Withstand load: 500kg
■ Mounting screw diameter: 10mm
■ Mounting screw length: 22mm
■ Moving head, for various mirror scans
* 1 There is a resin at the end of the fixing nut to prevent loosening. Securely screw the resin to the end of the screw.
* 2 When suspending the equipment, use a fall prevention wire in consideration of safety.
