STAGE EVOLUTION / PAR36SBG/4

STAGE EVOLUTION / PAR36SBG/4

  • STAGE EVOLUTION / PAR36SBG/4 画像1
  • STAGE EVOLUTION / PAR36SBG/4 画像2
  • STAGE EVOLUTION / PAR36SBG/4 画像3
  • STAGE EVOLUTION / PAR36SBG/4 画像4
  • 動画を見るMovie
  • 製品マニュアルProduct Manual

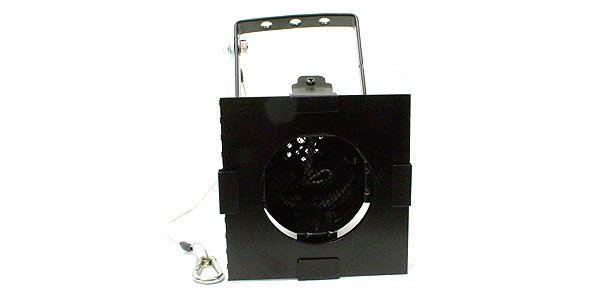

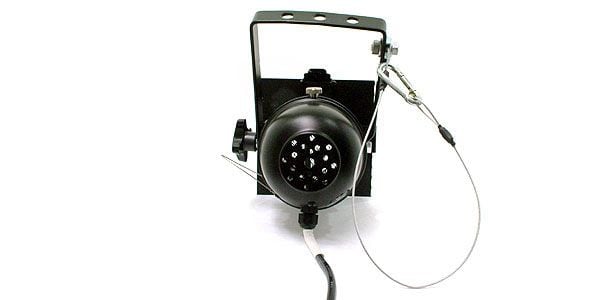

PAR36 Short type Black Highest grade PAR lite based on GS standard. A safety cable is also included.

パーライトの電球取り付け方法を確認してみましょう。
【Y型ネジ端子の場合】
1. カバーを開け、電球固定金具を取り外す
2. 電球と固定金具を取り付ける
3. +ドライバーでY型ネジ端子を接続する
4. カバーを戻して完了

■ PAR36
■ Short type
■ Black
■ Yoke mechanism specifications
■ Square gel frame included
■ With disc brake
■ Base: Y-type screw terminal
■ Light bulb sold separately: PAR36, up to 300W bulb can be used.
■ Dimensions: 17W × 17H × 22.4Dcm, 1kg (excluding bracket)
■ Length from the tube top when the bracket is vertical: 27.6cm
■ Gel frame dimensions: 13.5 × 13.5cm
■ Circle size in gel frame: 10cm
■ Compliant with Europe's highest GS standard
■ With fall prevention safety cable
■ With mesh grill guard for the safety at the time of bulb damage
■ Bracket fixing hole diameter: 15mm
■ AC100V50 / 60Hz. Parallel plug specification
■ Cable length: 90cm
* The internal anti-reflection coating may burn due to heat and emit smoke, but this is not a malfunction. If you use it for a while, the smoke will not come out.

* Using a bulb other than a 300W bulb is outside the scope of product specifications.
