WHIRLWIND / PCDI

WHIRLWIND Stereo Direct Box for CD Players/Sound Cards

■ Stereo Direct Box
■ Input Impedance: 20kΩ x 2
■ DI for CD Players and Sound Cards

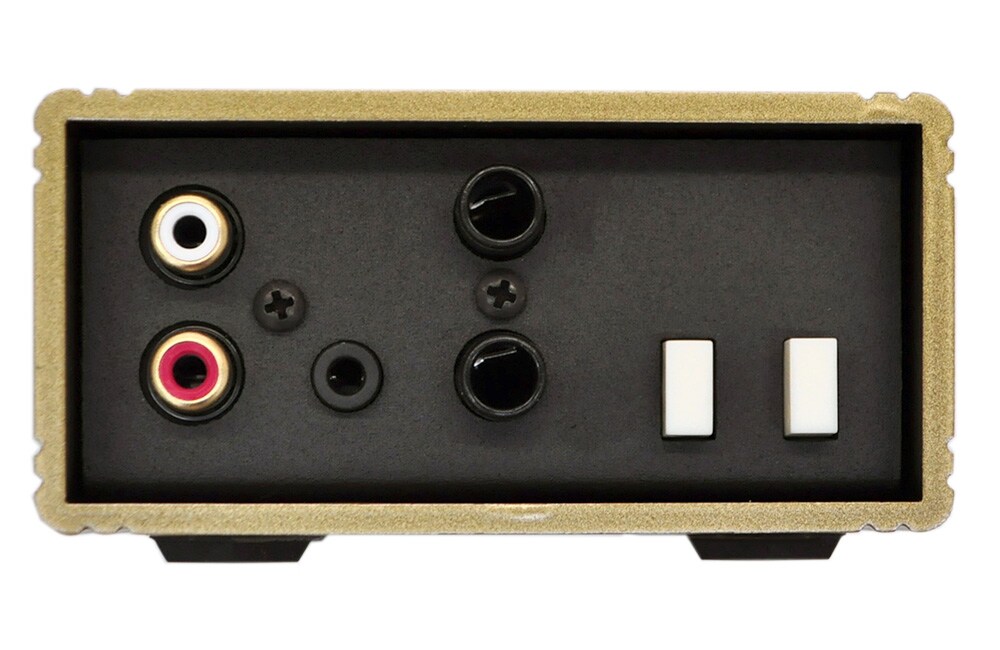

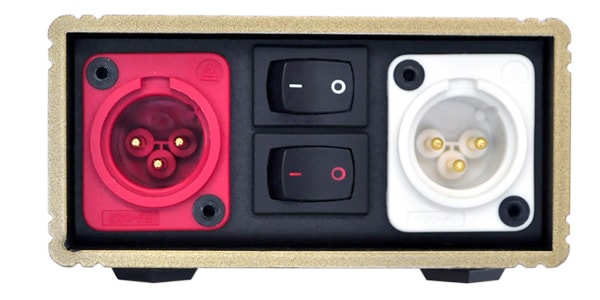

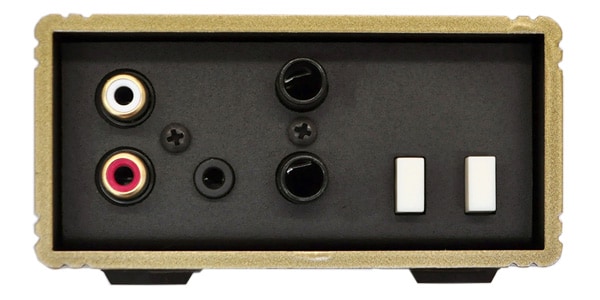

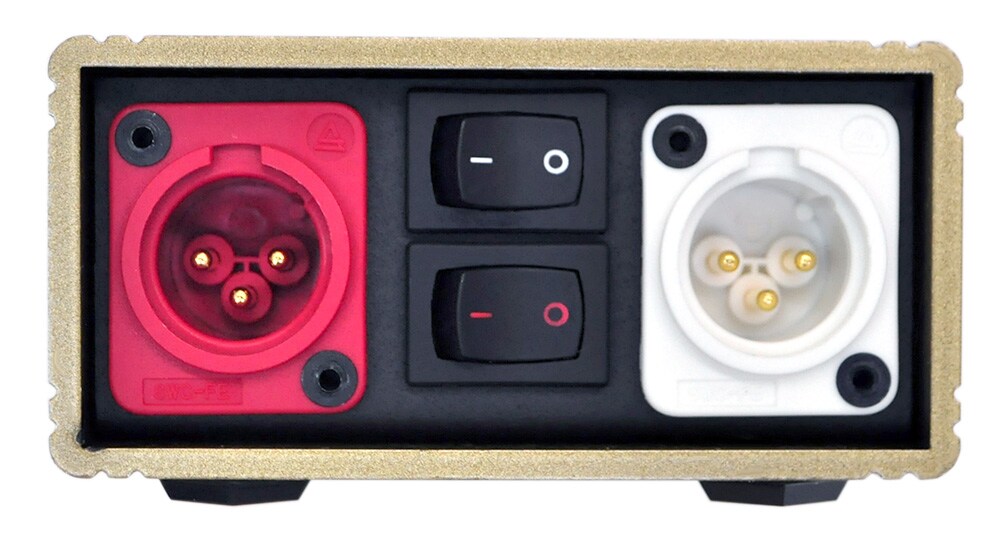

■ This passive direct box converts unbalanced stereo line signals from devices like CD players, MD players, computer sound cards, and tape decks to low-impedance balanced signals. The input connectors are a 3.5mm mini-TRS stereo jack or RCA phono jack, the through connector is an RCA phono jack, and the output is an XLR male connector. The stereo mono switch selects between stereo operation and combining the stereo inputs to mono and outputting them separately. It also features a ground lift switch and a 20dB pad switch.
