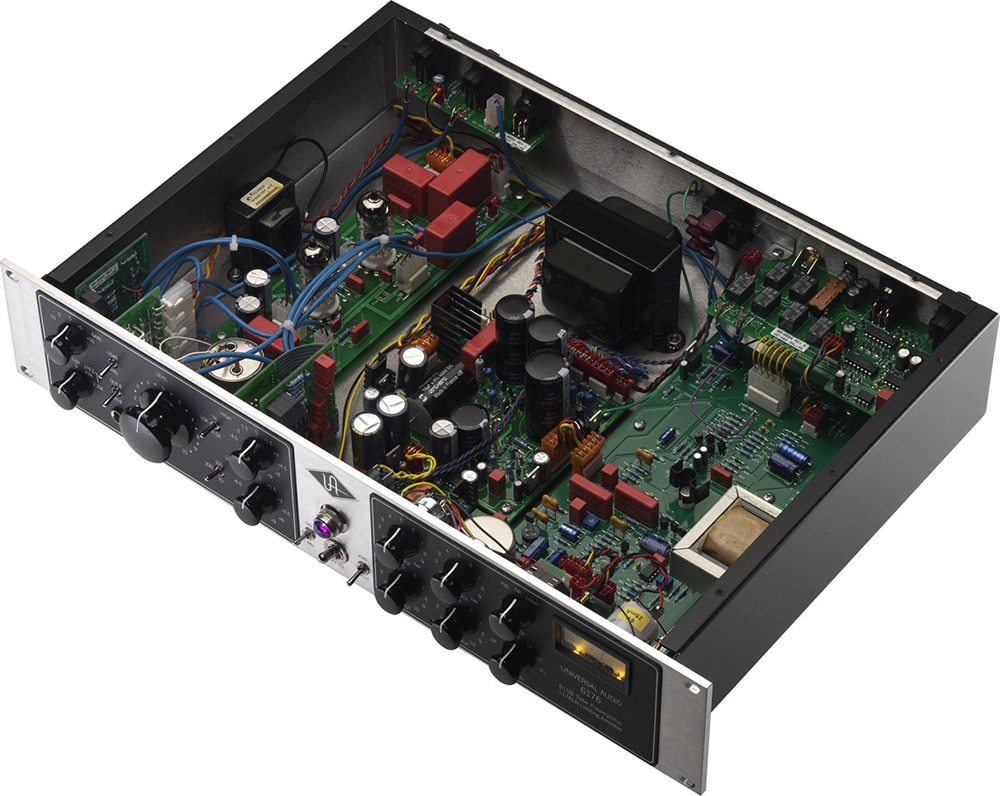

UNIVERSAL AUDIO / 6176

The legendary all-tube sound?combining a Bill Putnam-designed 610 microphone preamp and an 1176LN FET compressor into a single unit.

■Channel Strip, Mic Preamp, Compressor, EQ

The 6176 Vintage Channel Strip combines the legendary all-tube sound?Bill Putnam-designed 610 mic preamps?with the 1176LN FET compressor. Its warm, smooth tone is exceptional, as heard in recordings by Frank Sinatra and Van Halen.


■ All-tube microphone preamp, identical to the legendary 610 console designed by Bill Putnam

■ 1176LN Class A FET compressor

■ Split/Join switch allows individual or simultaneous use of the compressor and preamp sections

■ High & Low shelving EQ

■ Variable input impedance, gain, and output level

■ Microphone, line, and Hi-Z inputs

■ USA handmade

Preamp Section

■ Inputs: XLR (microphone), XLR (line), phone (unbalanced line/instrument)

■ Outputs: XLR (in ""Split Mode"")

■ Input Impedance: 500Ω/2MΩ (microphone), 3.8kΩ (line), 47kΩ/2.2MΩ (Hi-Z)

■ Variable Gain: -10, -5, 0, +5, +10dB

■ HF EQ;

Boost/Cut: 1.5, 3, 4.5, 6, 9dB

Frequency: 4.5k, 7k, 10kHz

■LF EQ

Boost/Cut: 1.5, 3, 4.5, 6, 9dB

Frequency: 70, 100, 200Hz

Compressor Section

■Input: XLR (""Split Mode"")

■Output: XLR

■Ratio: 1:1, 4:1, 8:1, 12:1, 20:1, ALL

■-15dB Pad Switch

■Phase Inversion Switch

■+48V Phantom Power Switch

■Join/Split Switch

■Vacuum Tubes: 12AX7, 12AT7

■2U

■Dimensions: 483W x 89H x 310D mm / 5.1kg

*This product is 120V specification. This product is not compatible with 100V power.
