TUBETECH / MEC1A

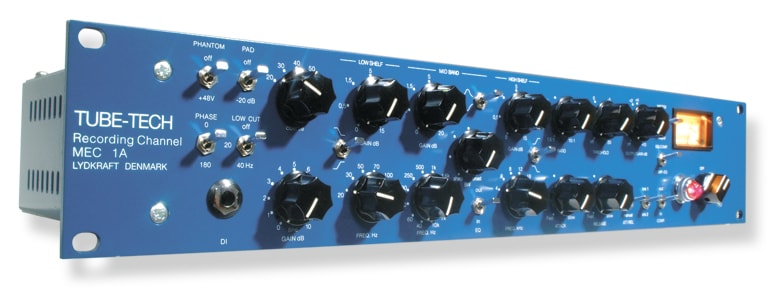

The MEC1A is an all-tube mono channel strip that combines classic TUBE-TECH designs (MP1A mic preamp, EQ1A active EQ, and CL2A compressor) into one powerful 2U package.

■Channel Strip

The MEC 1A is an all-tube mono channel strip combining classic TUBE-TECH design. It's a powerful 2U unit featuring the MP1A microphone preamp, EQ1A active EQ, and CL2A compressor. It delivers warm, clear, and true TUBE-TECH sound.

■Specifications

Frequency Response: -3dB: 5Hz to 60kHz
Low Noise: -85dBU at gains below 10dB
CMRR: >60dB @ 10kHz
Output Gain: Up to +10dB
Clickless Swap Relays (EQ < - > comp)
In/Out Switches per Section
Conductive Plastic Potentiometer
Gold-Plated Switches
Fully Regulated Power Supply with Toroidal Transformer
All-Tube Design (Excluding PSU & Sidechain Circuit)
Ins and Outputs are Transformer-Balanced and Fully Floating.

Microphone Preamp:
Gain: +20 to +70dB (DI: 10 to 60dB)
Input Impedance: >1.2kΩ
+48V phantom power, phase inversion, -20dB pad, low cut
DI input impedance >1MΩ

Equalizer:

Active tube-based equalizer

3 bands

6 low-shelf frequencies

6 high-shelf frequencies

Bell-type mid with 12 selectable frequencies and variable Q

Opto-Compressor:

Low-distortion optical reduction

Ratio: 1.5:1 to 10:1

Variable attack/release

VU meter showing output or reduction gain

Linkable for stereo applications

Vacuum tubes: 3 x ECC81, 1 x ECC82, 3 x ECC83

Dimensions Dimensions: 19 inches (W) x 2U (H) x 205mm (D)
Weight: 5.5kg
Power: 30W (115V/230V, 50/60Hz)

This product is made to order, so we cannot accept cancellations or changes for any reason after your order has been confirmed. Please be sure to inquire about delivery dates before placing your order.
