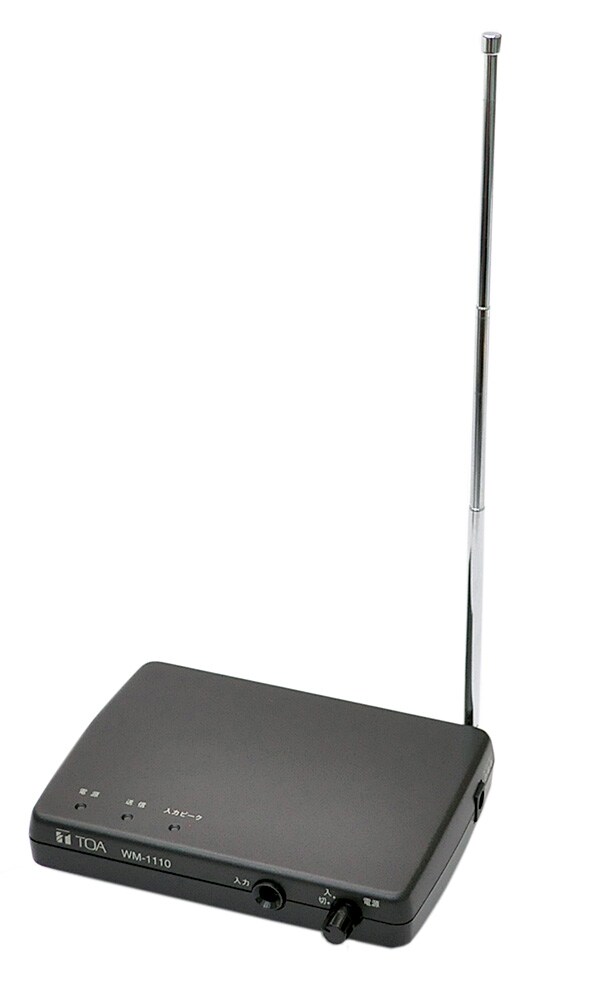

TOA / WM-1110 Desktop transmitter

A desk-top transmitter that uses radio waves in the 322 Mhz band, which is assigned for the C-type wireless microphones.

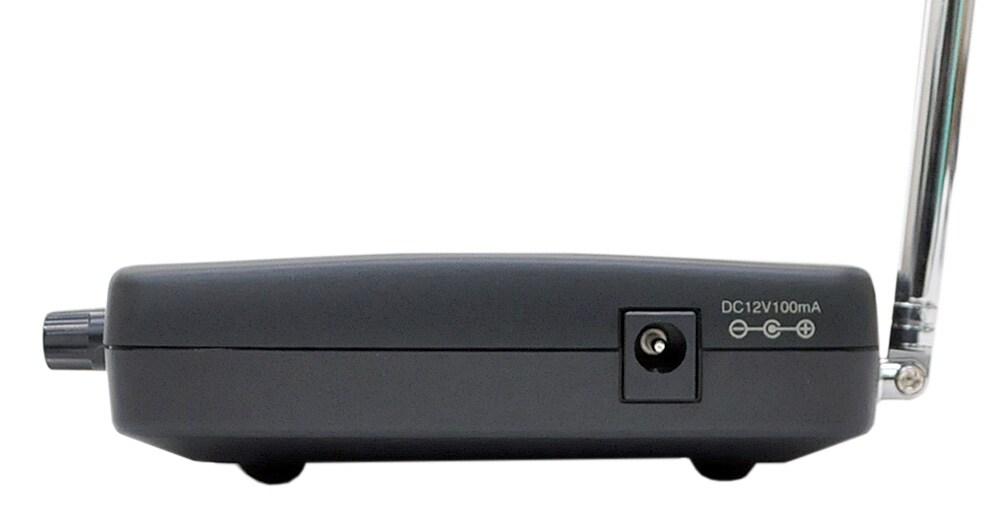

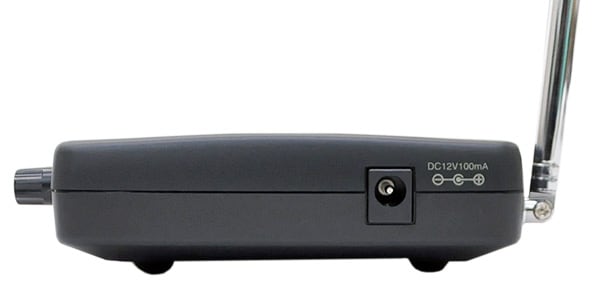

■ Power supply: AC100V 50 / 60Hz (AC adapter)
■ Power consumption: 3W
■ Radio wave type: F3E
■ Transmission frequency: 322.025 to 322.150Mhz, 322.250 to 322.400Mhz 25kHz interval 13 channels
■ Transmission output: 1mW
■ Oscillation method: Crystal control PLL synthesizer method
■ Tone frequency: 14.80kHz, 14.75kHz (1 channel out of 2 channels)
■ Total frequency characteristics
・ 150Hz ~ 6.000Hz (desktop transmitter → portable receiver)
・ 130Hz to 7.000Hz (desktop transmission tree → desktop receiver, wireless speaker)
■ Pre-emphasis: 50μs

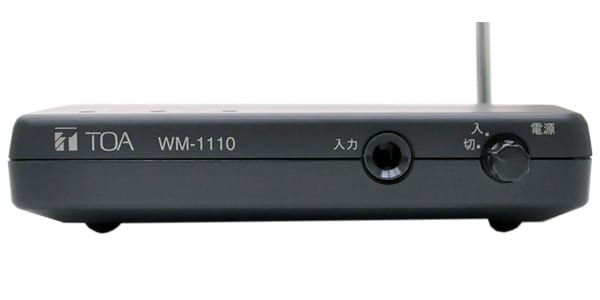

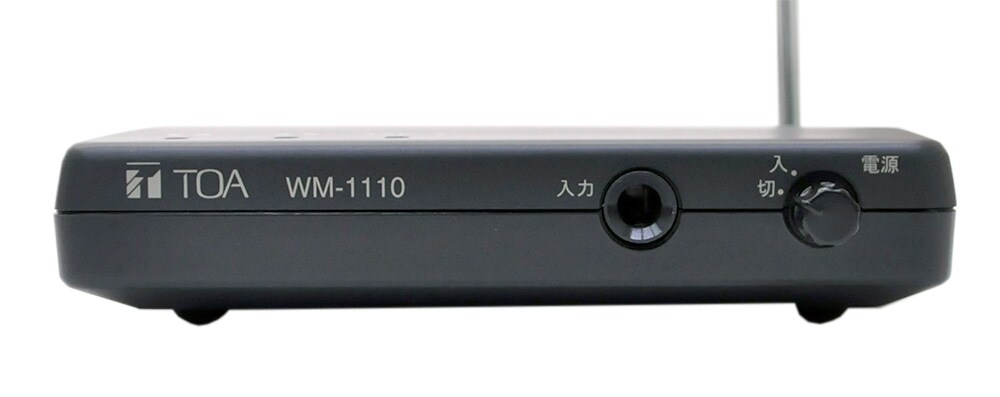

Input level: Microphone / line switching 600Ω unbalanced horn jack
・ Standard input: -54dB / -60dB / -66dB (when microphone) -12dB / -18dB / -24dB (when line)
・ Maximum input: -30dB / -36dB / -42dB (during microphone) + 12dB / + 6dB / 0dB (during line)
■ Remote input:
・ Voltage: DC2V, Short circuit current: 0.2mA, Loop resistance: 100Ω or less
・ Remote control: Radio waves
■ Operating temperature range: -10 ℃ to + 40 ℃
■ Finish: ABS resin dark gray (Munsell N2.5 approximate color)
■ Dimensions: 140 (W) x 31 (H) x 119.5 (D) mm (including protrusions)
■ Weight: 270g (excluding AC adapter)

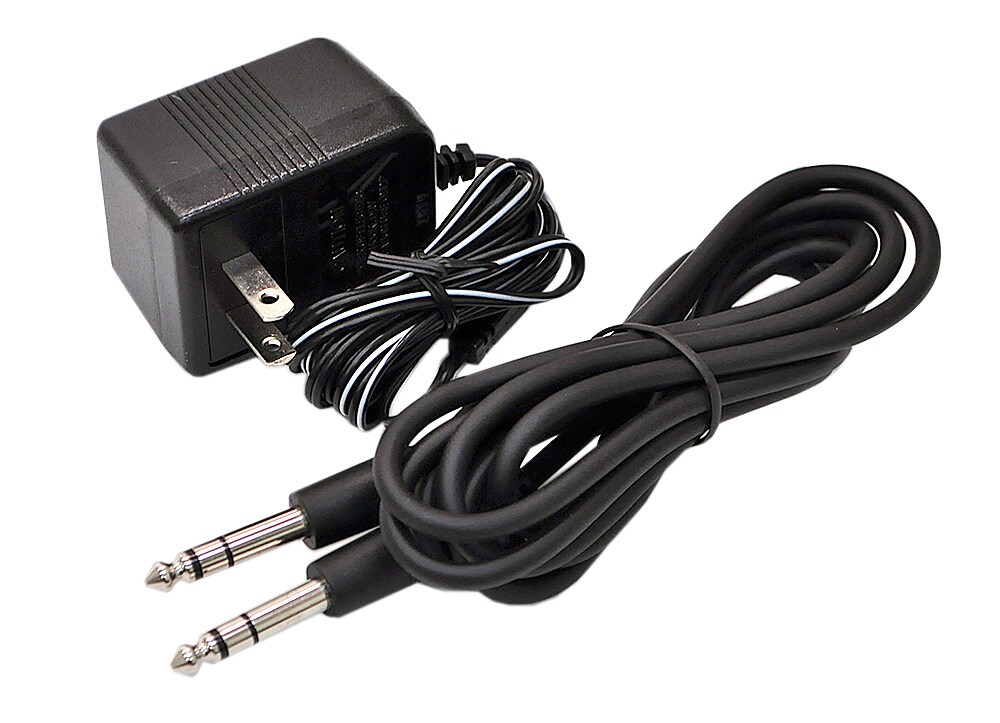

■ Accessories
・ AC adapter (code 1.8m) x 1
・ Setting driver x 1
・ Cable (2m) x 1
