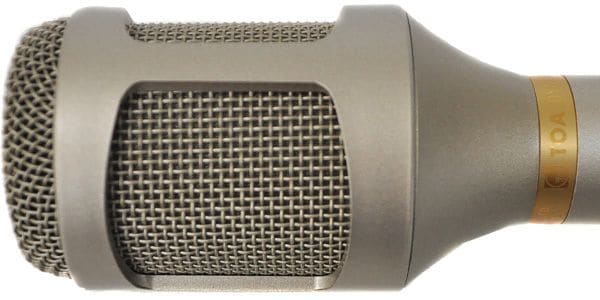

TOA / DM-524B Microphone

This is a unidirectional dynamic microphone with a flexible outlet.

■ Microphone
■ Flexible type
■ Dynamic microphone
■ Directivity: Unidirectional
■ Impedance: 600Ω
■ Frequency response: 100Hz-10kHz
■ Sensitivity: -56dB
■ Total length: 532mm
■ Weight: 465g
■ Output connector: Phi 21 3P metal outlet (BTS21P3B)
■ Finish:
Microphone: Champagne Gold Spacle paint
Flexible shaft: Nickel satin plated champagne gold
■ Compatible stand: ST-73A (sold separately) or φ21 metal outlet can be used
■ Accessories: φ21 3P receptacle (BTS21R3A), + Round plate machine screws M3 × 10 x3, W W3 x3, Spring w / SW3 x3, Natt M3 x3
* It is used together with the ST-73A table stand (sold separately).
