TOA / CS-63

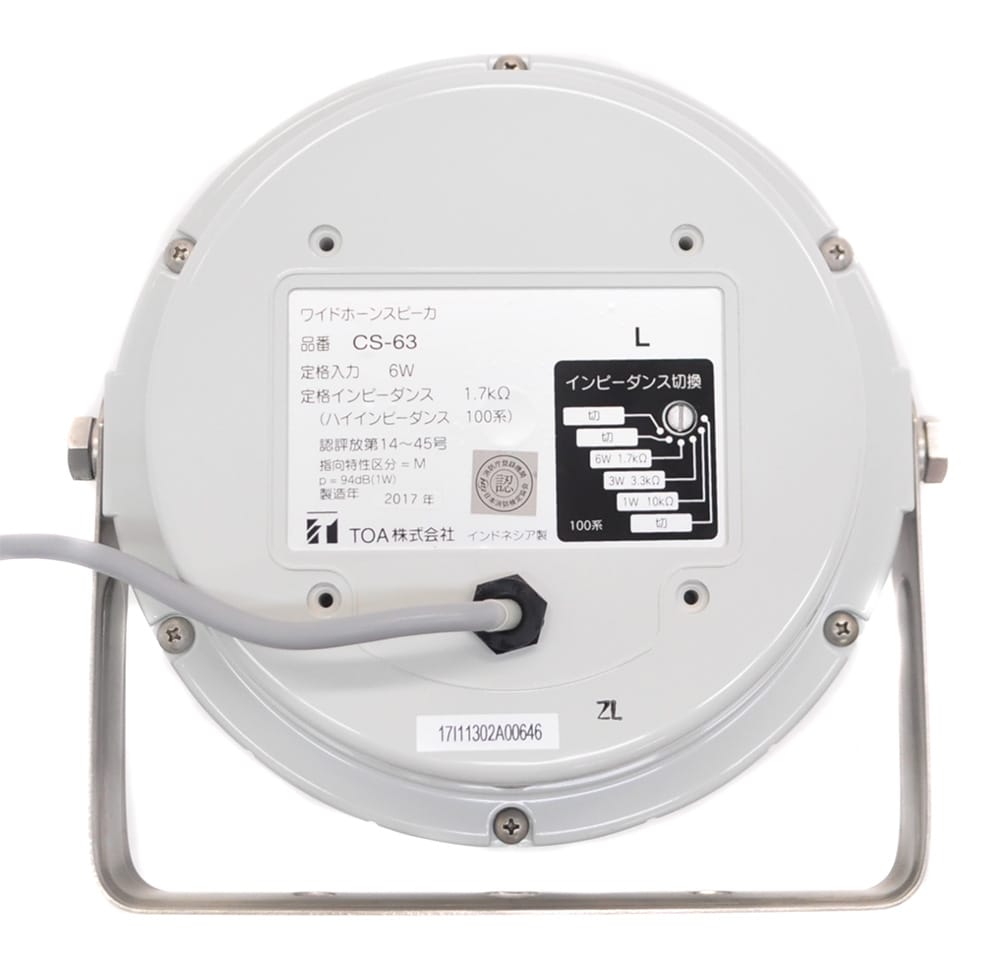

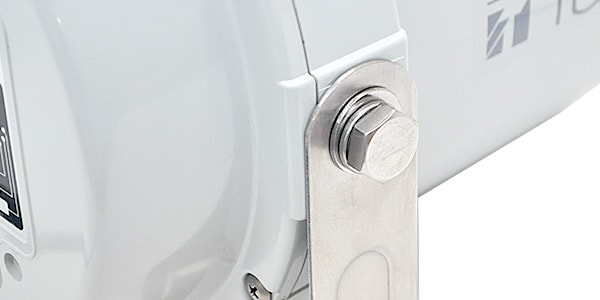

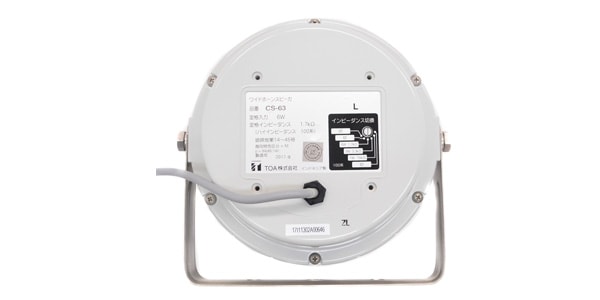

The TOA CS-63 is a horn speaker that combines the waterproofness and clarity of a trumpet speaker with the superior sound quality of a cone speaker. It features stainless steel angles and bolts for corrosion resistance outdoors, and an easy-to-use rotary switch for impedance switching. It can be mounted on the ST-16A speaker stand (sold separately).

■ Wide Horn Speaker

■ Rated Input: 6W

■ Rated Impedance: 1.7kΩ (6W), 3.3kΩ (3W), 10kΩ (1W)

■ Output Sound Pressure Level: 96dB (1W, 1m)

■ Frequency Response: 130Hz～13kHz

■ Speaker Type: 12cm Cone Type (Waterproof)

■ Speaker Classification: Class L (92dB(A) or higher measured with the second signal of the Fire Service Act Enforcement Regulations)

■ Sound Power Level: 94dB (1W)

■ Directivity Classification: M (0° to less than 15° Q=10, 15° to less than 30° Q=3, 30° to less than 60° Q=1, 60° to 90° Q=0.5)

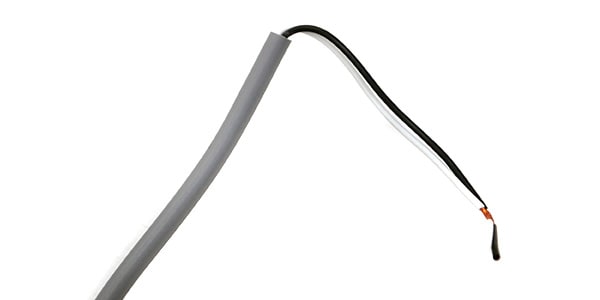

■ Speaker Cord: φ6mm 2-core Cabtyre Cord

■ Operating Temperature Range: -20℃ to +55℃

■ Waterproof Rating: IPX4

■Other: Complies with JIS C 5532 (Speakers for Audio Systems)

■Finish:

Horn/Cover: ABS resin, off-white (approximate Munsell N9.0 color), painted

Angle: Stainless steel

Perforated net: Surface-treated steel plate, dark gray (approximate Munsell N2.5 color), powder coated

Screws: Stainless steel

■Dimensions: 233(W)×224(H)×208(D) mm

■Weight: Approx. 1.5kg

■Optional accessories: Speaker mounting brackets

For pole mounting:

φ90～φ340mm SP-131+YS-60B

φ200～φ340mm SP-201+YS-60B

For wall/flat surface mounting: SP-201, SP-301

* Not suitable for use in strong winds.
