SUMMIT AUDIO / TLA-100A

The classic LOOKS and soft sound unique to SUMMIT AUDIO cannot be imitated by other companies. The TLA100A has been loved by studios and engineers around the world for its simple yet clear operation feeling, natural and warm sound.

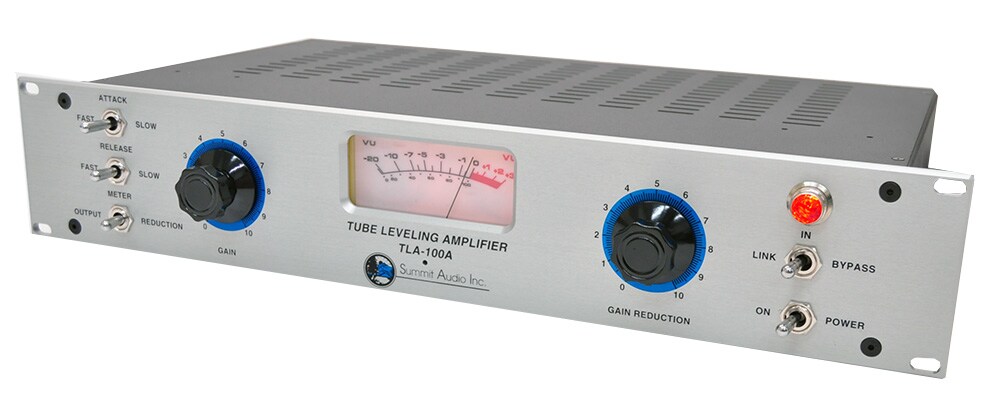

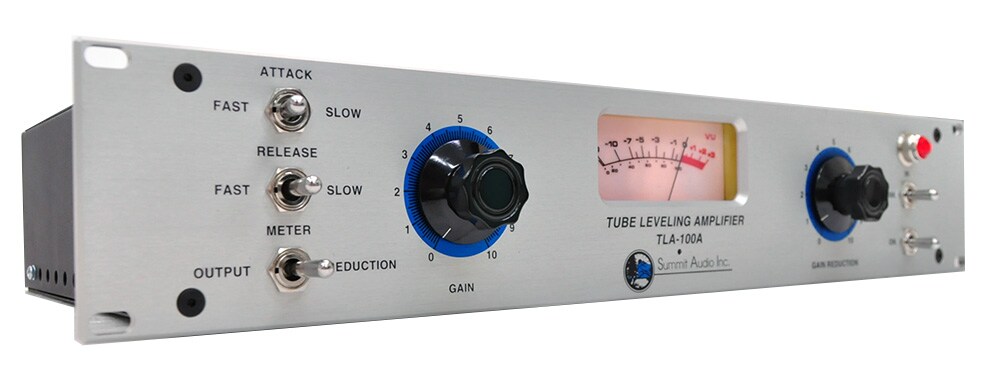

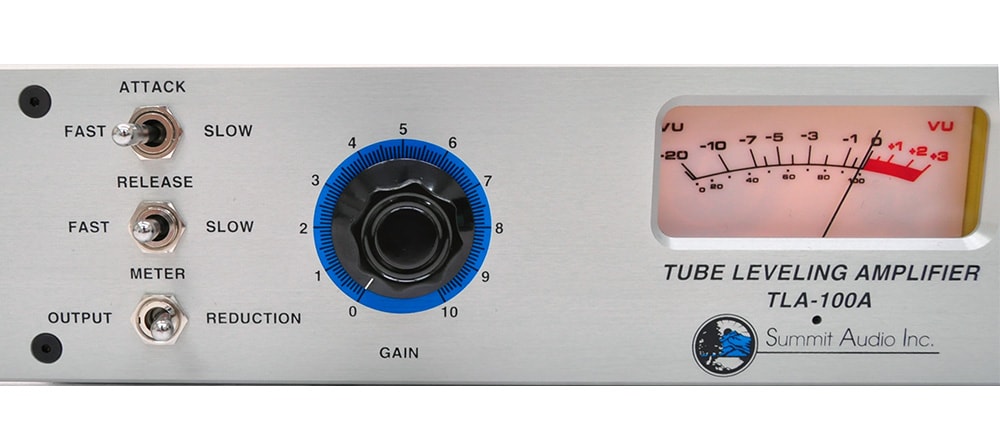

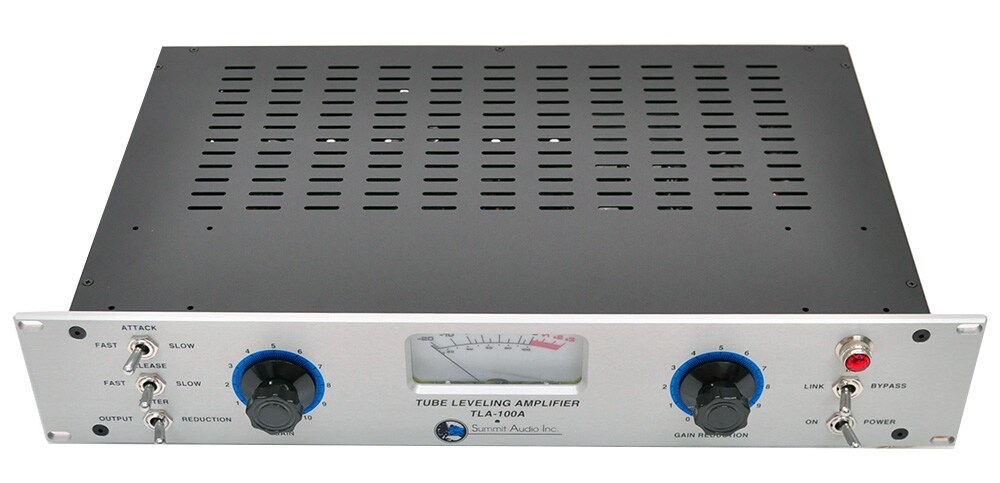

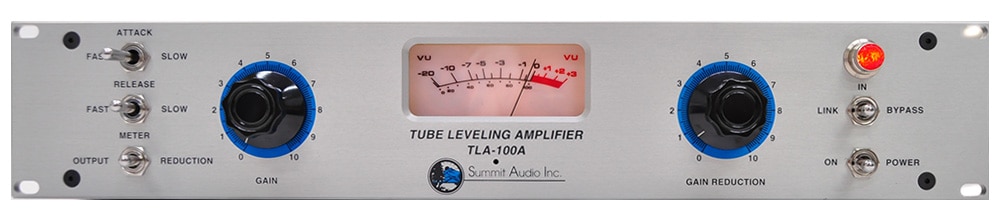

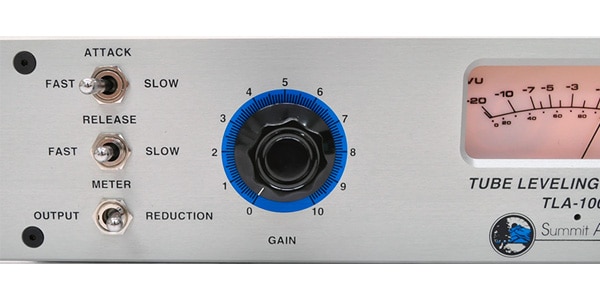

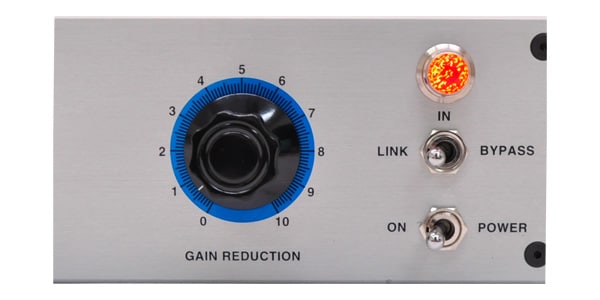

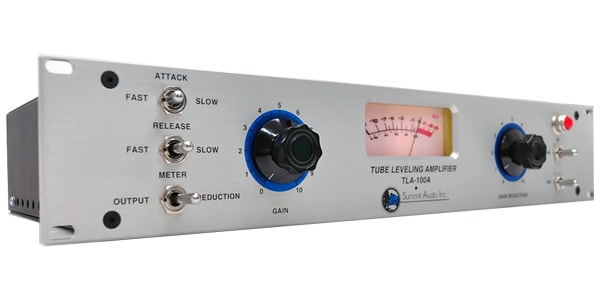

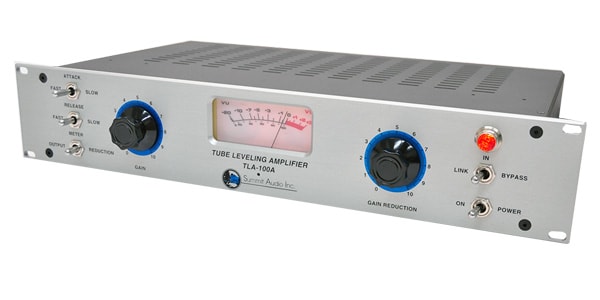

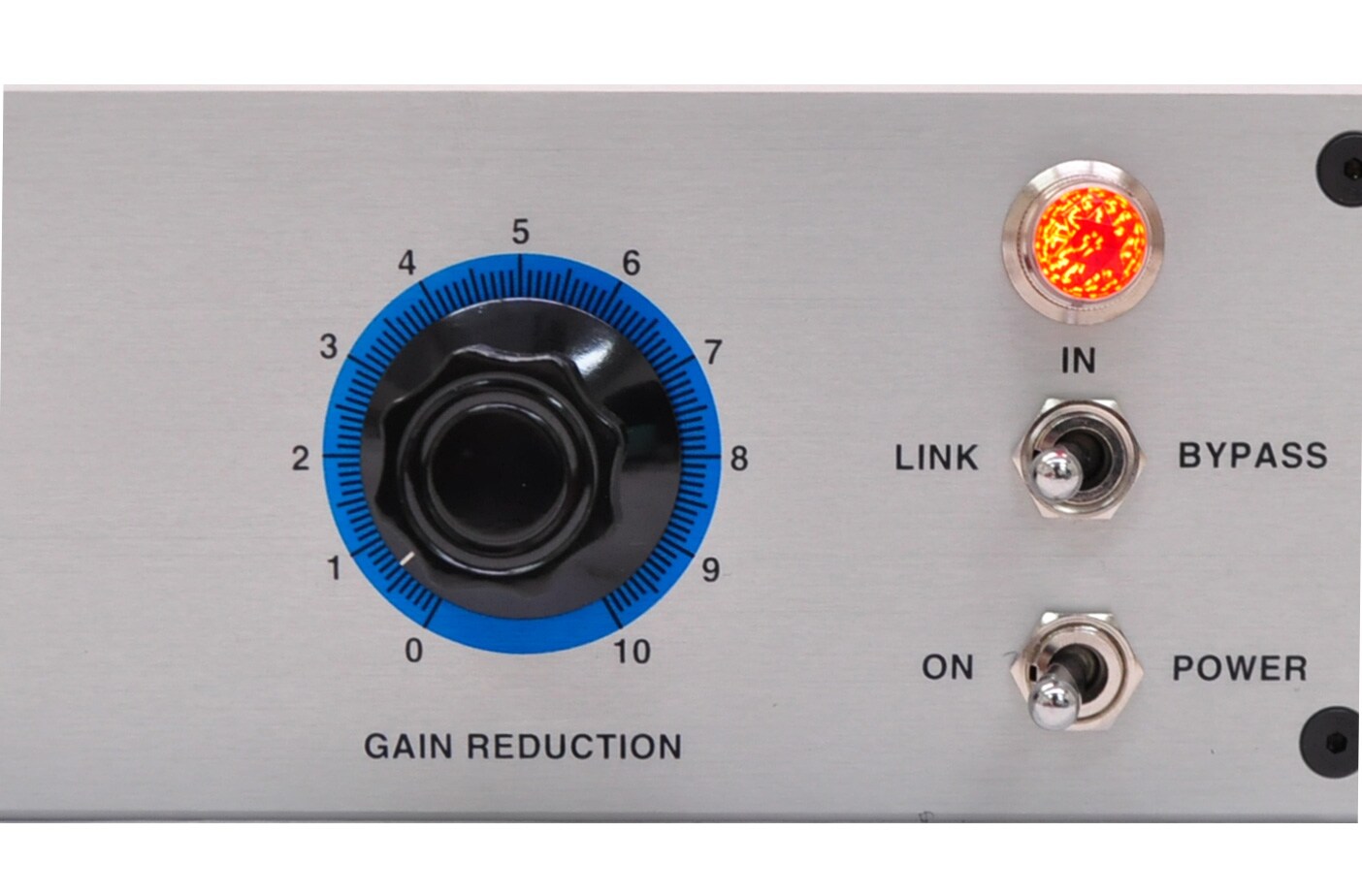

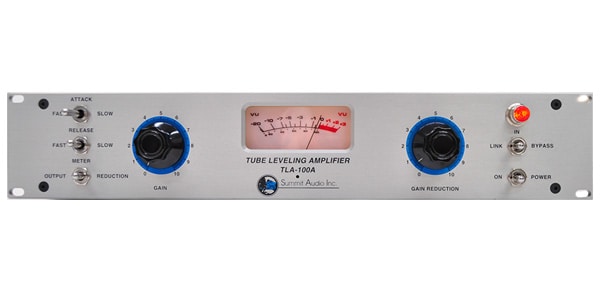

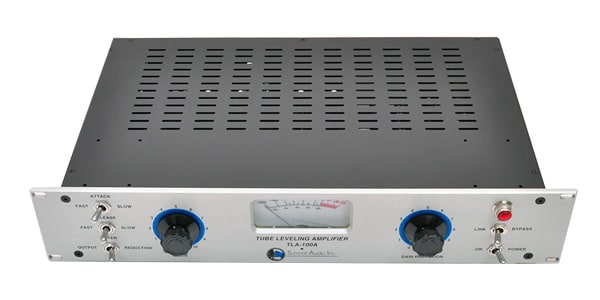

The famous mono compressor "TLA-100A" which is a bit different from the monaural compressor / limiter announced by many manufacturers. The simple front panel and analog VU meter express smooth and warm compression characteristics. SUMMIT's "soft knee" cannot be tasted anywhere else. Attack and release time can be selected from three levels of FAST / MEDIUM / SLOW with independent switches. The gain control and the gain reduction control adopt a big knob and enable a faithful control. Switching between bypass and stereo link is also obvious, and the output gain / reduction switchable meter makes it easy to check the level.

■ Type: Monaural vacuum tube compressor / limiter
■ Output impedance: 75Ω
■ Maximum output level: + 25dBm
■ Input impedance: 20kΩ
■ Maximum input level: + 25dBm

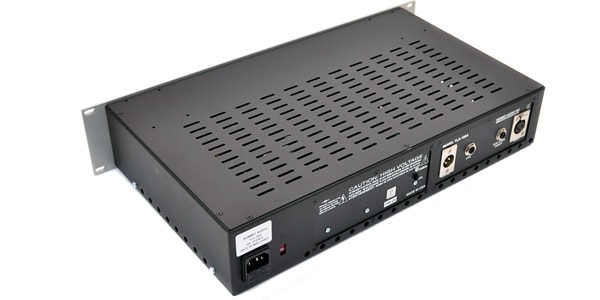

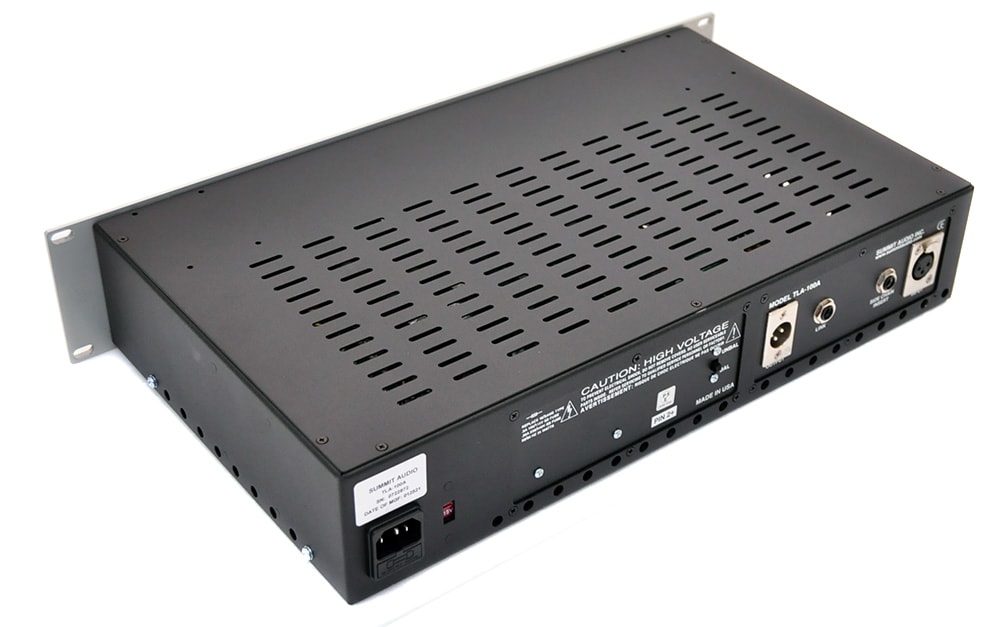

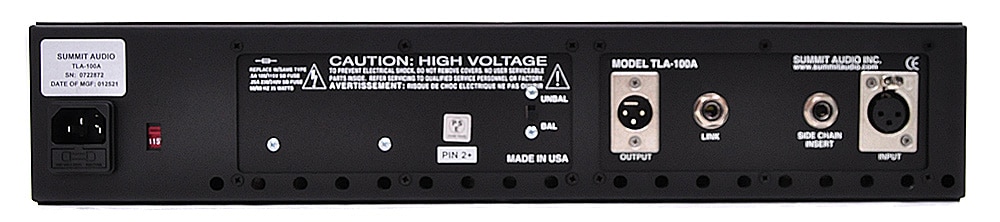

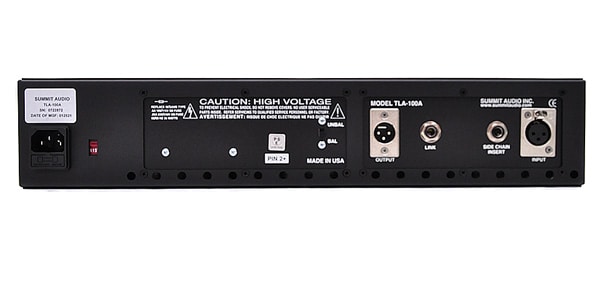

■ Connector: XLR input / output
■ No.2 hot
■ Vacuum tube: 12AX7A
■ Dimensions and weight: 480Wx88Hx270Dmm, 2U, 8.17kg
Power supply: AC100V, 35W
■ Remarks: Soft knee character, side chain access, stereo couple possible. Transformerless signal circuit

High-quality sound and low-compression compression are proven because they have become standard equipment in famous recording studios around the world. The TLA-100A will give you unprecedented sound depth.
