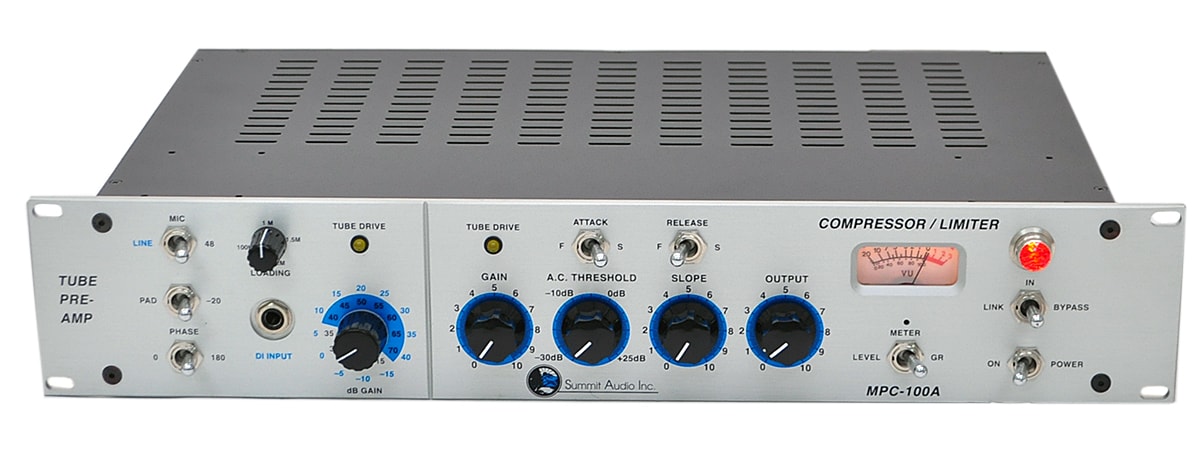

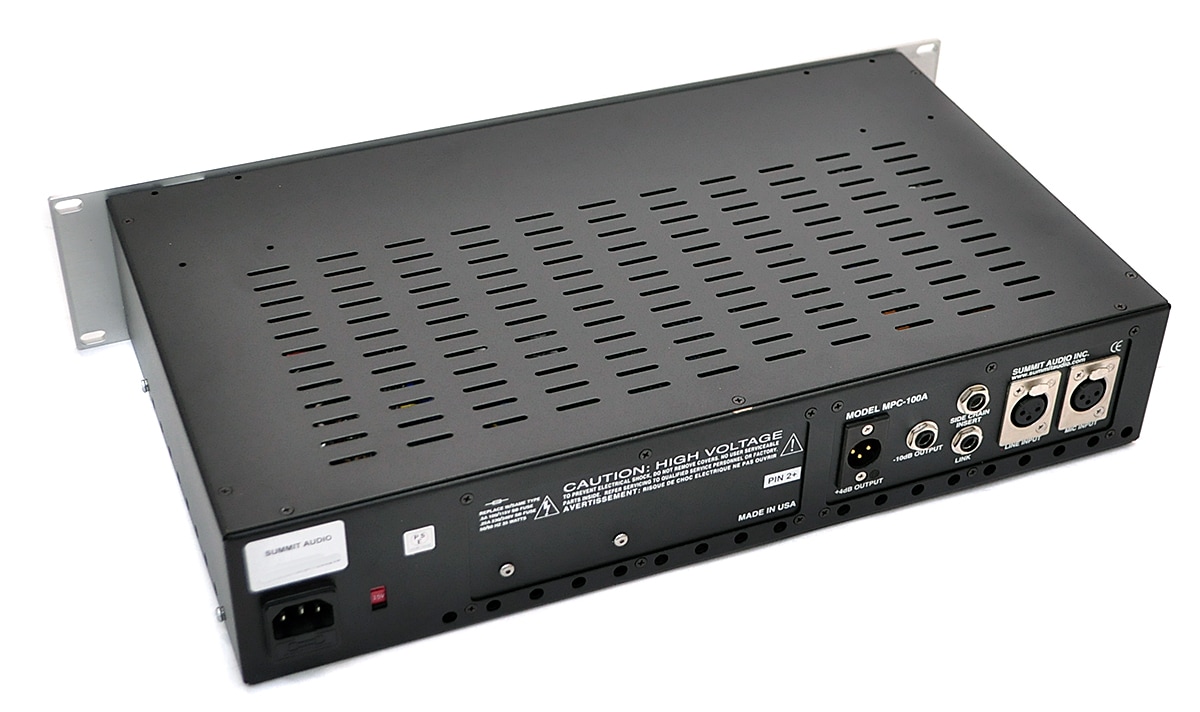

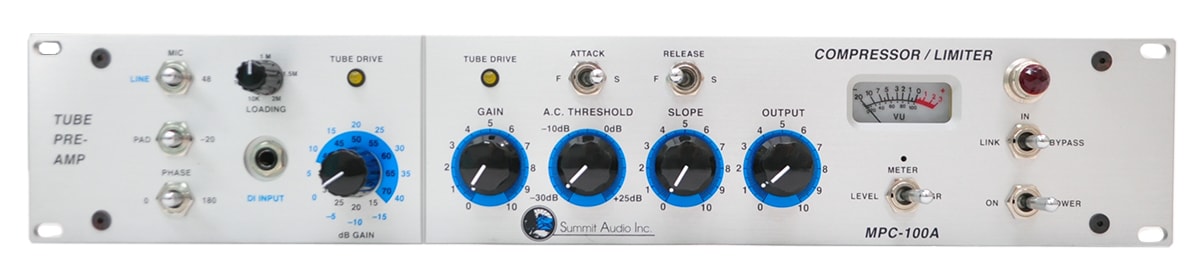

SUMMIT AUDIO / MPC-100A

A hybrid microphone preamp featuring a tube preamp, compressor (with VU meter), and DI loading control! It has earned exceptional trust from professional users.

The MPC-100A integrates a microphone preamplifier and compressor/limiter, eliminating unnecessary wiring and contacts, and delivering a clear output without compromising the tube tone. The microphone preamplifier section supports line input and features 48V phantom power, a 2-position switchable PAD (-15dB/-25dB), and high-impedance loading control. Furthermore, it employs a stepped attenuator and includes a clip indicator. The compressor section features threshold, release, and gain controls, with switchable attack and release times (FAST/MEDIUM/SLOW). It also includes a switchable level/gain reduction meter, clip indicator, and link/bypass switch for easy operation verification. With its rich sound, specifications, and above all, high cost performance, the MPC-100A has become a global hit, used in studios and live scenes worldwide.

■Type: Vacuum tube mono microphone preamplifier/compressor with VU meter

■Controls: Bypass switch, gain, A.C. threshold, slope (ratio: 1:1 to 7:1), attack time (FAST/MEDIUM/SLOW), VU meter (output/gain reduction), 48V phantom power switch, pad (-15dB/-25dB), phase switch, DI loading, clip indicator, gain control (microphone preamplifier section)

■Components: 12AX7A vacuum tube, 990-OP amp, IC circuit, transistor, compression cell

■Input impedance: Microphone: 1.5kΩ, Hi-Z: 10kΩ to 1.75MΩ

■Output impedance: 150Ω

■Maximum input level: Microphone: +15dBu, Line: +35dBu, Hi-Z: +8dBu

■Maximum output level: +30dBu

■Maximum Gain: +75dBu

■Frequency Response: 20Hz?20kHz

■S/N Ratio: 130dB

■THD+N: 0.03%

■Dynamic Range: 100dB

■Attack Time: 180μS?100mS

■Release Time: 32mS?1.5S

■Equipped with 2 x 12AX7A vacuum tubes

■Dimensions: 48.3 x 8.9 x 27 mm

■Weight: 8.2kg
