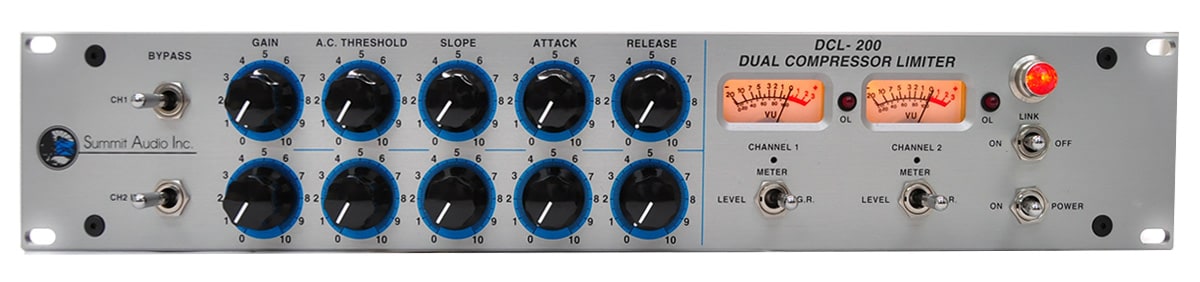

SUMMIT AUDIO / DCL-200

The ultimate in luxurious sound! Variable compression is used for the compression setting, realizing a warm and smooth tube sound. The DCL200, which is often heard at studios and concerts around the world, is a compressor worthy of being the strongest.

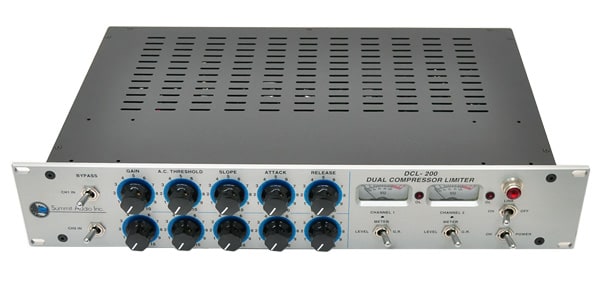

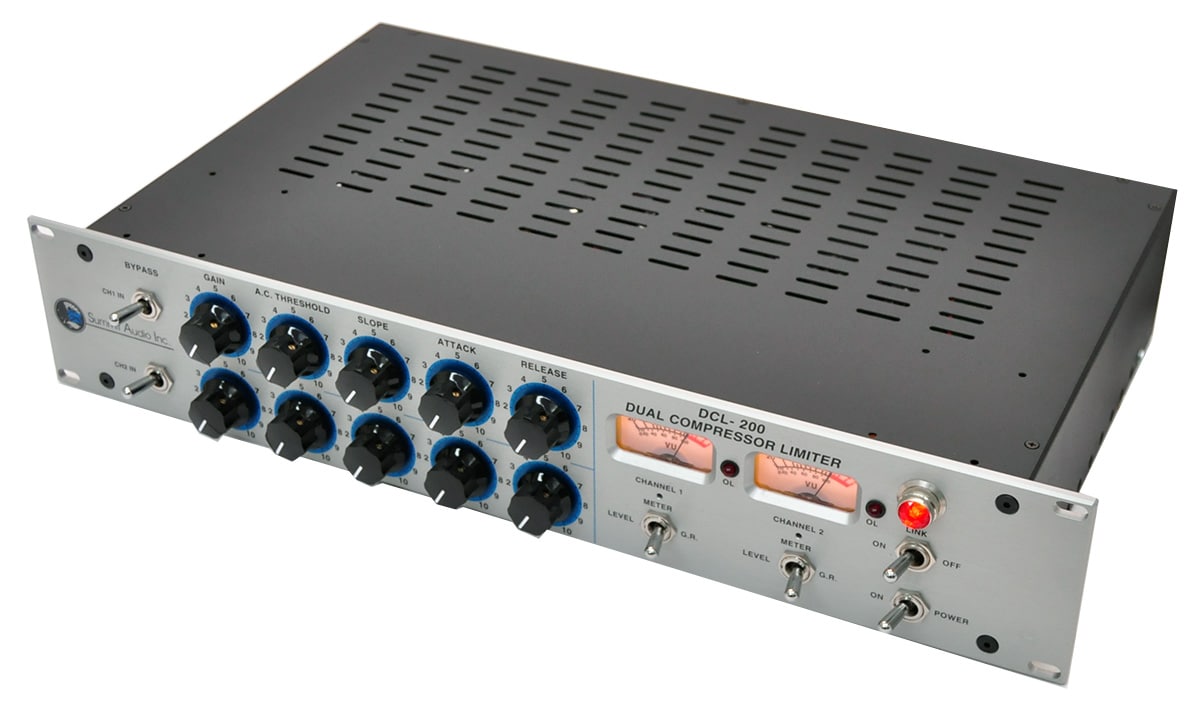

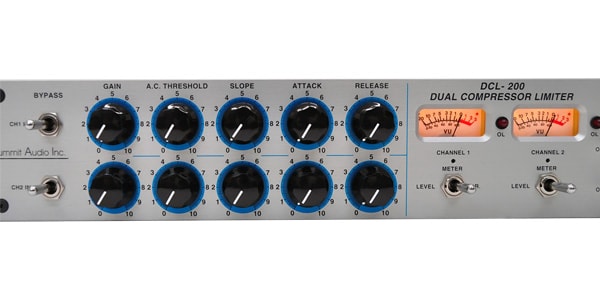

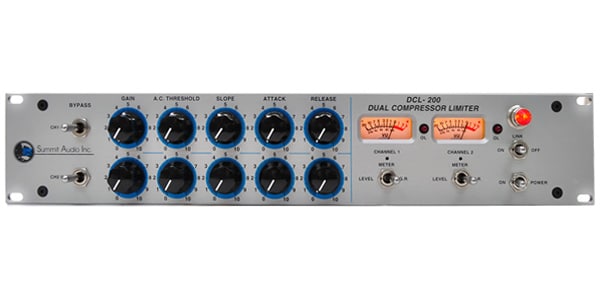

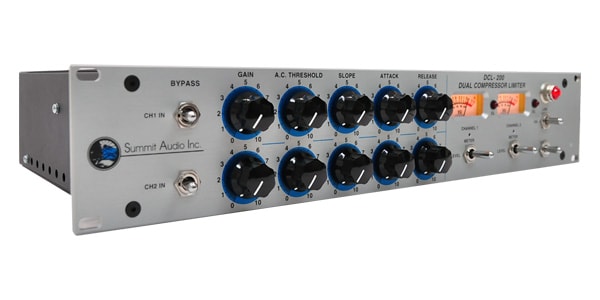

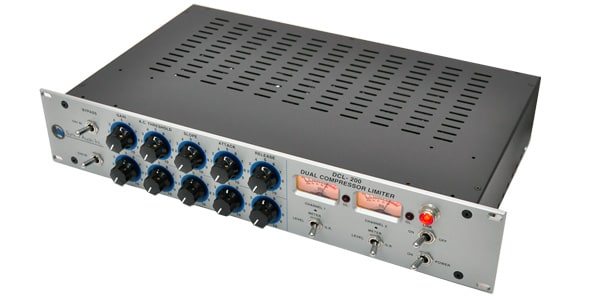

The DCL-200 uses a variable control method for all compression settings, including the threshold hold level, so you can fully enjoy warm and smooth compression. Equipped with gain and A.C. threshold control to faithfully control the operation level. Slope control to determine the attenuation rate, attack time and release time can be controlled freely. Compatible with any source and achieves natural compression. The level / gain reduction meter with overload indicator has excellent visibility. Of course, it also has bypass, stereo link and side chain, so it is a gem that works well for recording studios, broadcasting stations and concert tours.

■ Type: Vacuum tube stereo compressor / limiter
■ Frequency characteristics: 5Hz to 70kHz

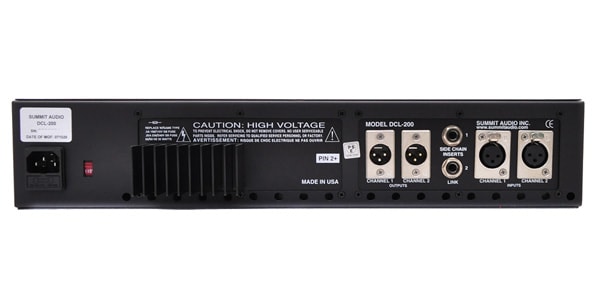

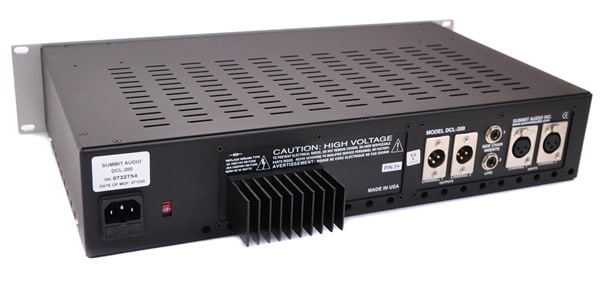

Input terminals: XLR x 2, Side chain phone x 2
Output terminal: XLR x 2
■ THD + noise: 0.05%
■ Power consumption: 40W
■ Dimensions: 48.0Wx8.8Hx27.0Dcm
■ Weight: 9.07kg
■ Noise level: -80dB
■ Attack time: 0.1ms to 40ms
■ Release time: 45ms-10s
■ Input impedance: 40kΩ
■ Output impedance: 75Ω
■ Stereo link, side chain insert, 2 mode dual meter, peak / overload indicator, transformerless signal circuit
■ No.2 hot

The DCL200 can embody the warmth and dense sound quality unique to vacuum tubes. If you use it at the end of the mix, it will give your work a new breath.
