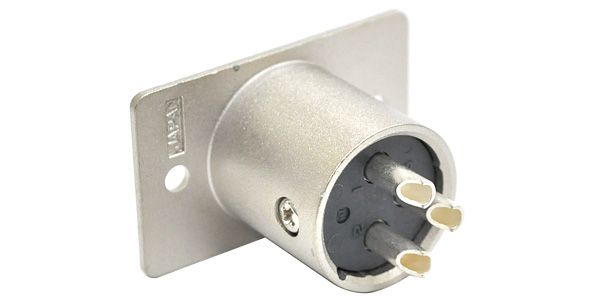

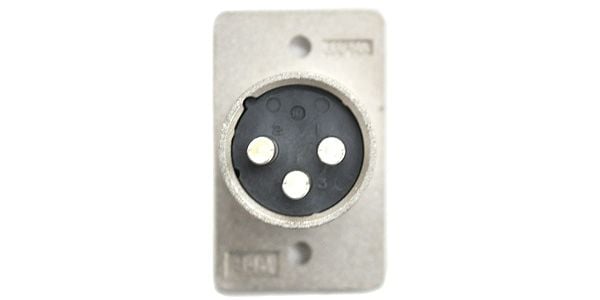

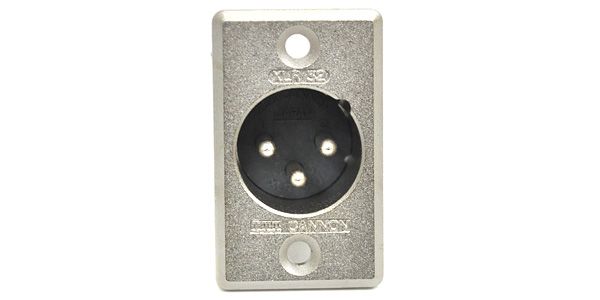

ITT / XLR3-32

ITT receptacle, XLR male, 3-pin, silver, square, connector

■Receptacle
■XLR Male
■3-Pin
■Panel Mounting Flange Type
■Square 22 x 36 mm
■Silver

■Standard XLR Connector
~From the Manufacturer's Website~
■Product Overview
The XLR series, the de facto standard in the audio industry, has been widely used as a high-performance, affordable product since ITT Cannon founder James H. Cannon developed the audio connector. The rugged and highly reliable XL series is a versatile connector suitable for everything from general-purpose microphones to applications requiring high-end environmental resistance.

■ Specifications
- Operating Temperature Range: -35°C +125°C
- Rated Current: 15A
- Rated Voltage: 133V AC
- Withstand Voltage: 1,400V AC rms
- Insulation Resistance: 5,000MΩ or More
- Durability: 500 Cycles
- Applicable Wire Size: 14-20AWG
- Number of Cores: 3

Features
- Satin finish prevents diffuse reflection of lighting and other light sources
- Synthetic rubber insulator (socket) reduces vibration and noise
- Latching mechanism for easy mating and unmating
- Lightweight aluminum shell
- RoHS Compliant

Major Applications
- Broadcasting and Concert Hall Equipment
- Professional Audio Equipment
- Medical Equipment
- Industrial Measuring Equipment
- General Industrial Equipment
