Black Lion Audio / MIDI Eight MIDI Interface

The MIDI Eight is a core 8-in/8-out USB-C MIDI interface for your studio.

■MIDI Interface

■8in / 8out

■USB Type-C

Simply select a mode from the front panel to start making music immediately.

Built-in 5-port USB hub for connecting peripherals.

MIDI Eight is class-compliant, so it works seamlessly on macOS and Windows environments without the need for additional software. USB bus-powered when connected to a computer.

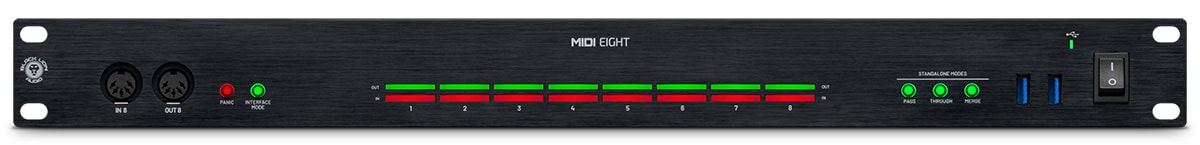

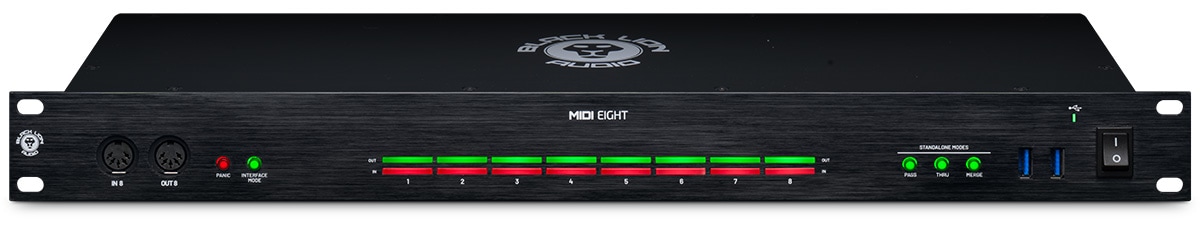

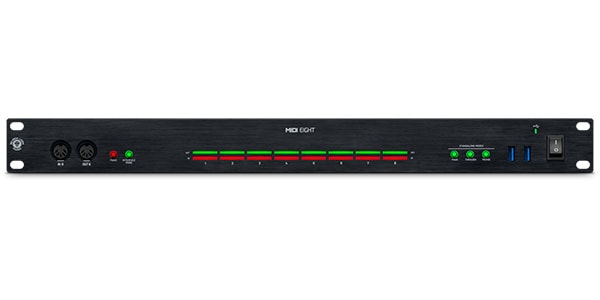

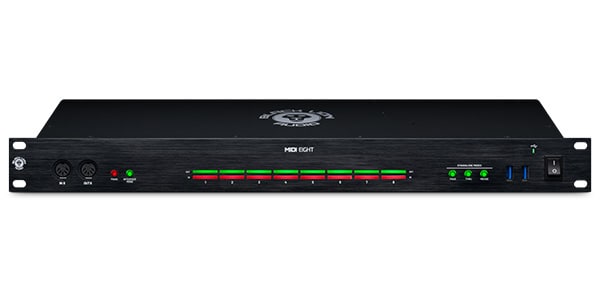

Features one input/output terminal on the front. Convenient for quickly connecting newly acquired equipment.


■Standalone Mode for Computer-Free Use

MIDI Eight offers three independent standalone modes for use without a computer.

In Pass Mode, MIDI inputs are routed directly to the corresponding outputs, allowing for quick and intuitive connections. Connecting a controller or sequencer to MIDI Input 1 sends the data to MIDI Output 1.

In Through Mode, MIDI input signals are sent simultaneously to all output ports. Ideal for users with a single controller or sequencer and multiple synthesizers or drum machines.

Merge mode is the opposite of thru mode; all input ports are merged and sent to MIDI output 1. This is an ideal choice when you own multiple controllers or sequencers and want to send data to a single multi-channel sound module or DAW.

Also, it can be powered by the included DC adapter when not using a computer.

■Convenient Features for a Comfortable Workflow

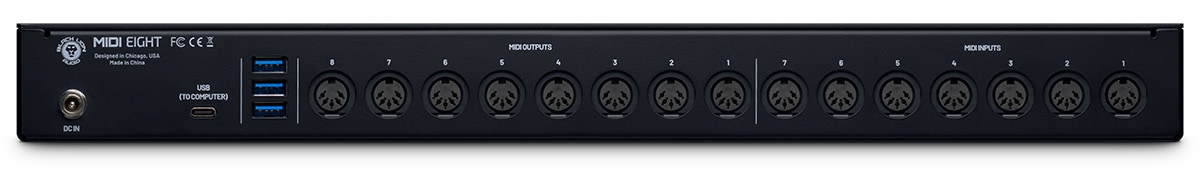

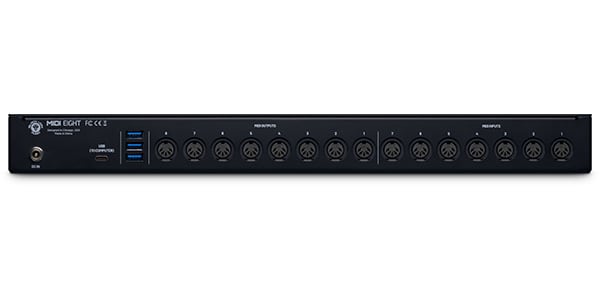

The MIDI Eighr features 8 MIDI in and 8 MIDI out ports on the front panel, with 8 MIDI out ports also located on the back panel for mirroring.
This is convenient for connecting devices that are not always connected.
It also includes a panic button that sends an ""All Notes Off"" message to all output ports in case of sudden data transmission problems.
A USB-A hub is included (requires power supply via the included AC adapter).
It is equipped with convenient features to make your studio workflow more comfortable.

■Specifications

・MIDI Input/Output:

8 in 8 out

8 MIDI in / 8 MIDI out on the front (mirroring on both the front and back of the unit)


・USB:

1 x USB-C for host connection

5 x USB-A (requires AC power connection with included hub)


・Power Supply:

USB bus power or AC adapter (included)


・Dimensions:

Width: 19” (483 mm) Height: 1.7” (44 mm) Depth: 6.1” (154 mm) 1RU
