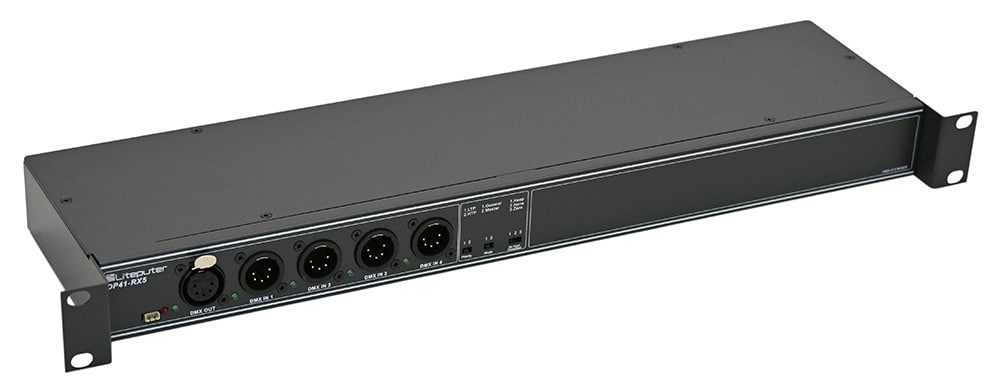

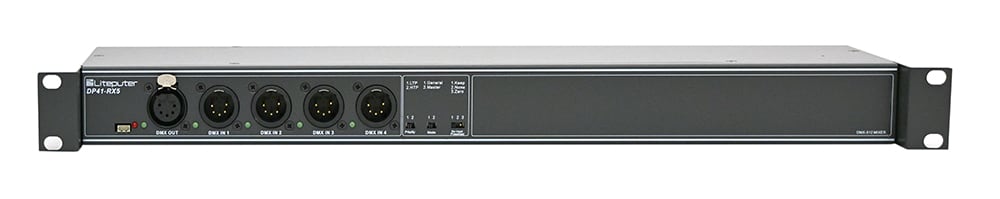

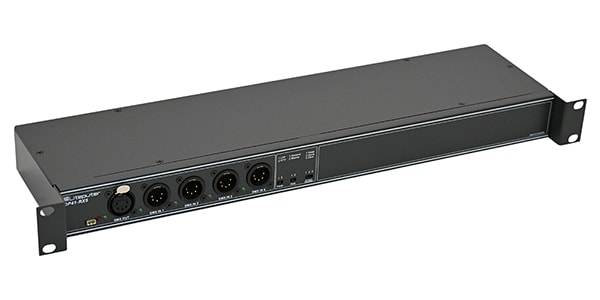

LITEPUTER / DP41-RX5

The DP41-RX5 is a 5-pin DMX-512 mixer that combines four DMX input sources into a single output. It offers LTP/HTP priority selection, General/Master operating modes, and configurable behavior when input signals are lost. Designed for 19-inch 1U rack mounting, it provides stable and reliable signal management for stage lighting and installation environments.

■ DMX MIXER
■ 5-pin XLR
■ DMX-512 inputs: 4
■ DMX-512 output: 1

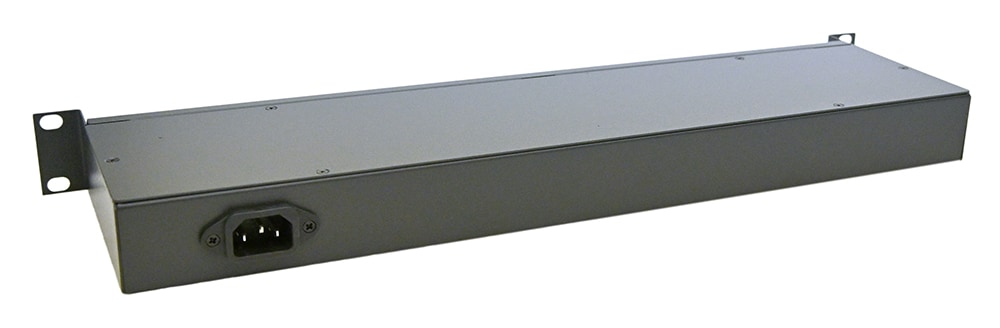

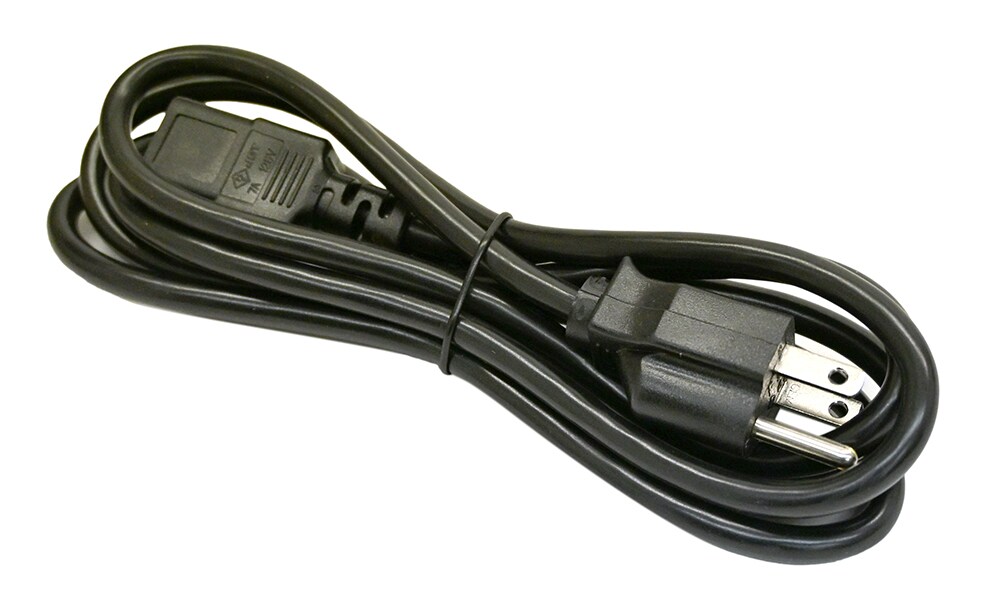

■ Power: AC 100–240V
■ Protocol: DMX
■ Mounting: 19-inch 1U rack
■ Dimensions: 482(W) × 42(H) × 130(D) mm
■ Weight: 1.6 kg

■ FUNCTIONS

Priority Modes
- LTP: Latest received signal takes priority
- HTP: Highest value signal takes priority

Operating Modes
- General: Standard mode
- Master: Only DMX Input 1 is active

Behavior When Input Signal Is Lost
- Keep: Output is maintained even if all DMX inputs are lost
- None: No output when all DMX inputs are lost
- Zero: Output is set to zero when all DMX inputs are lost
