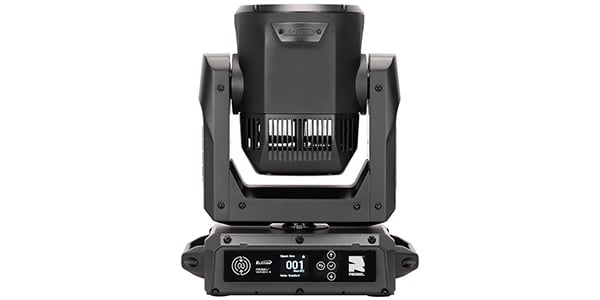

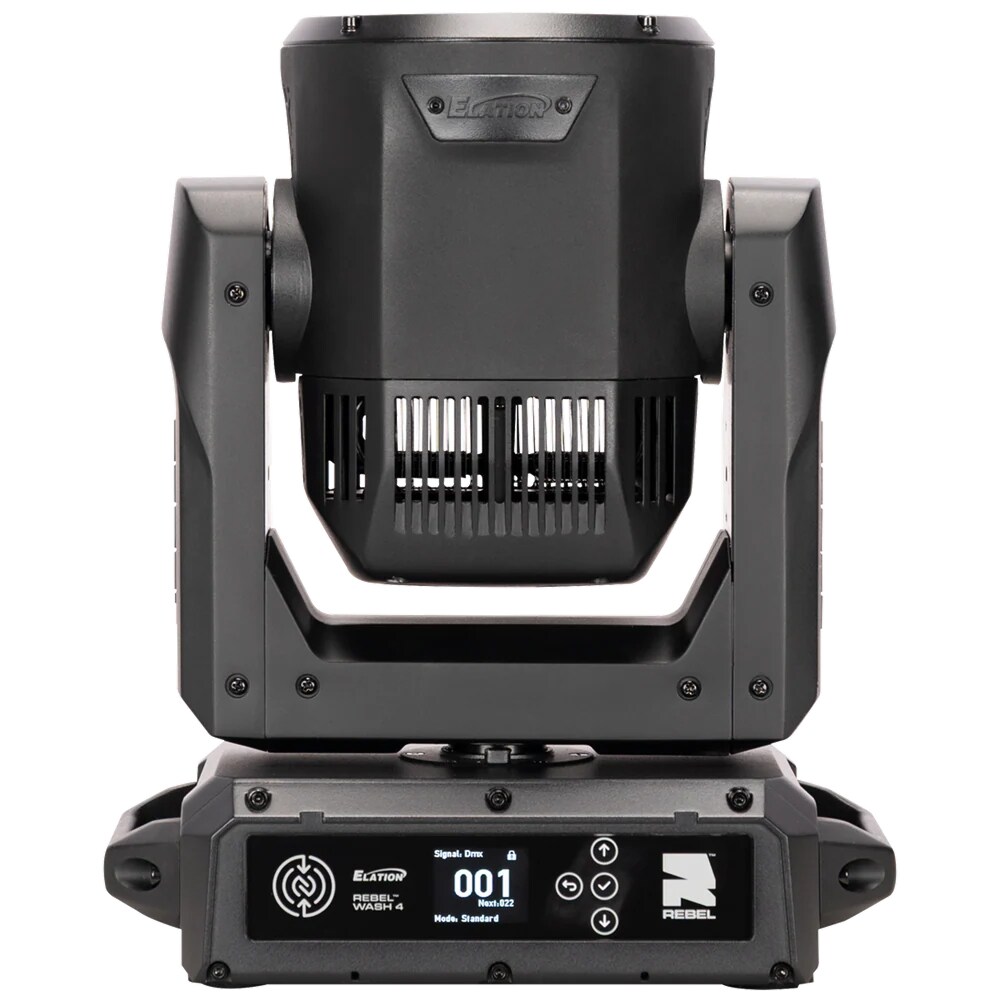

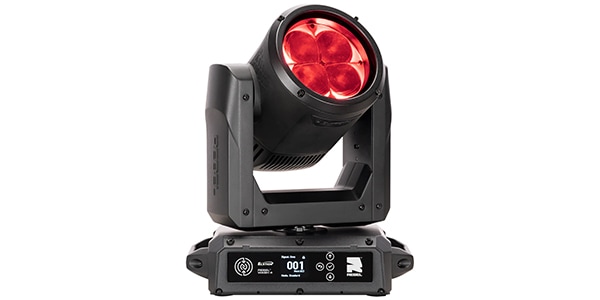

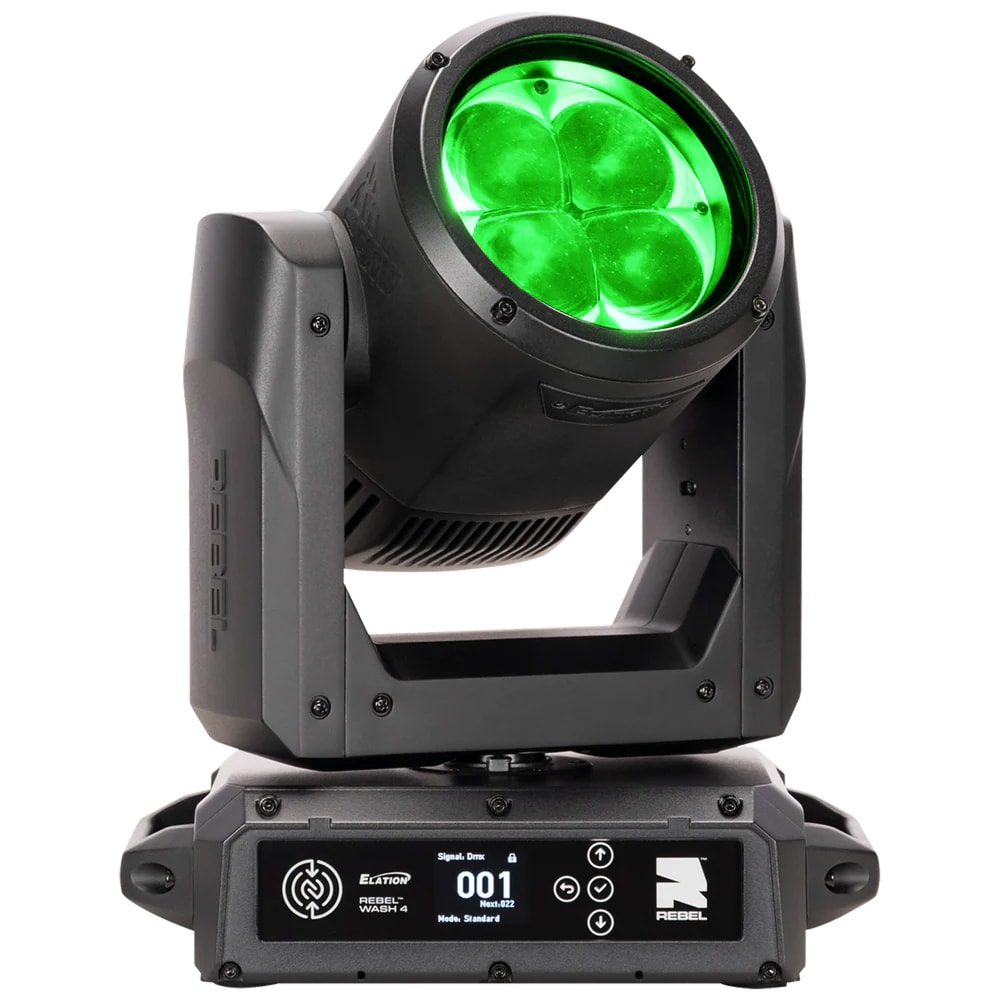

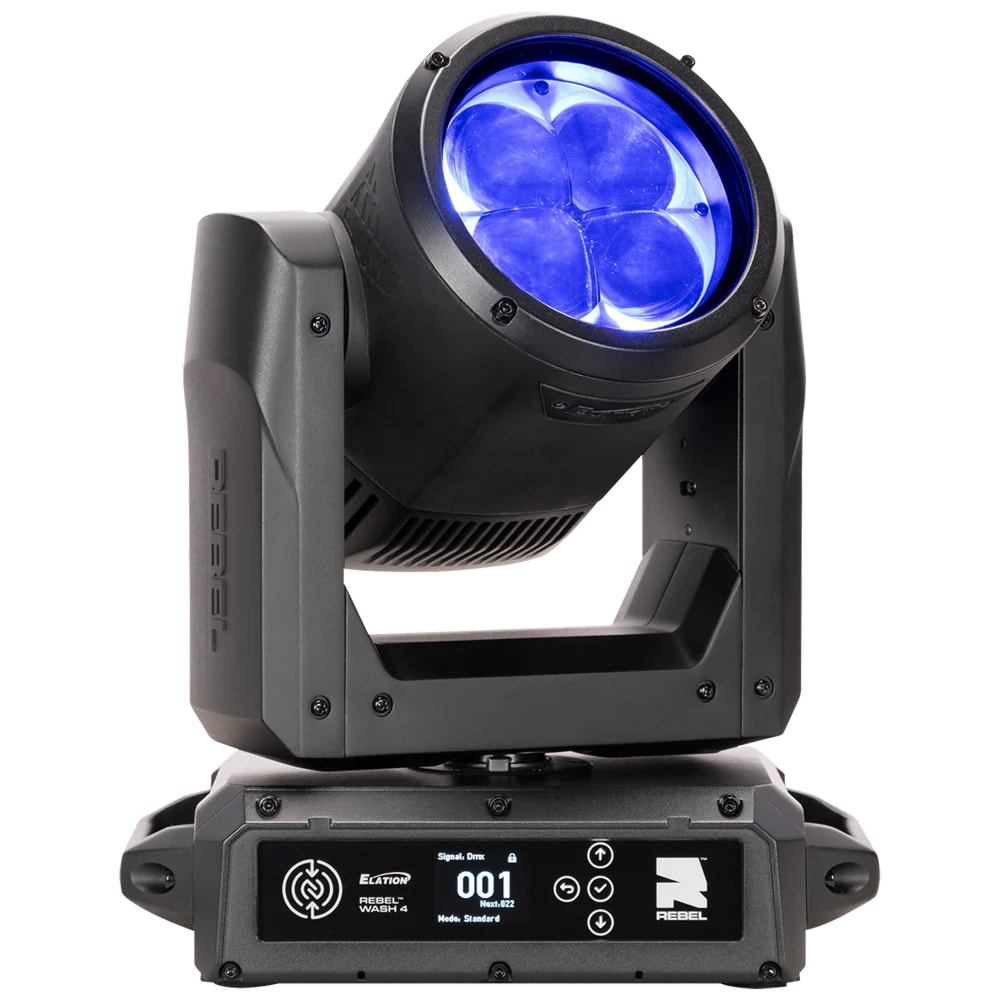

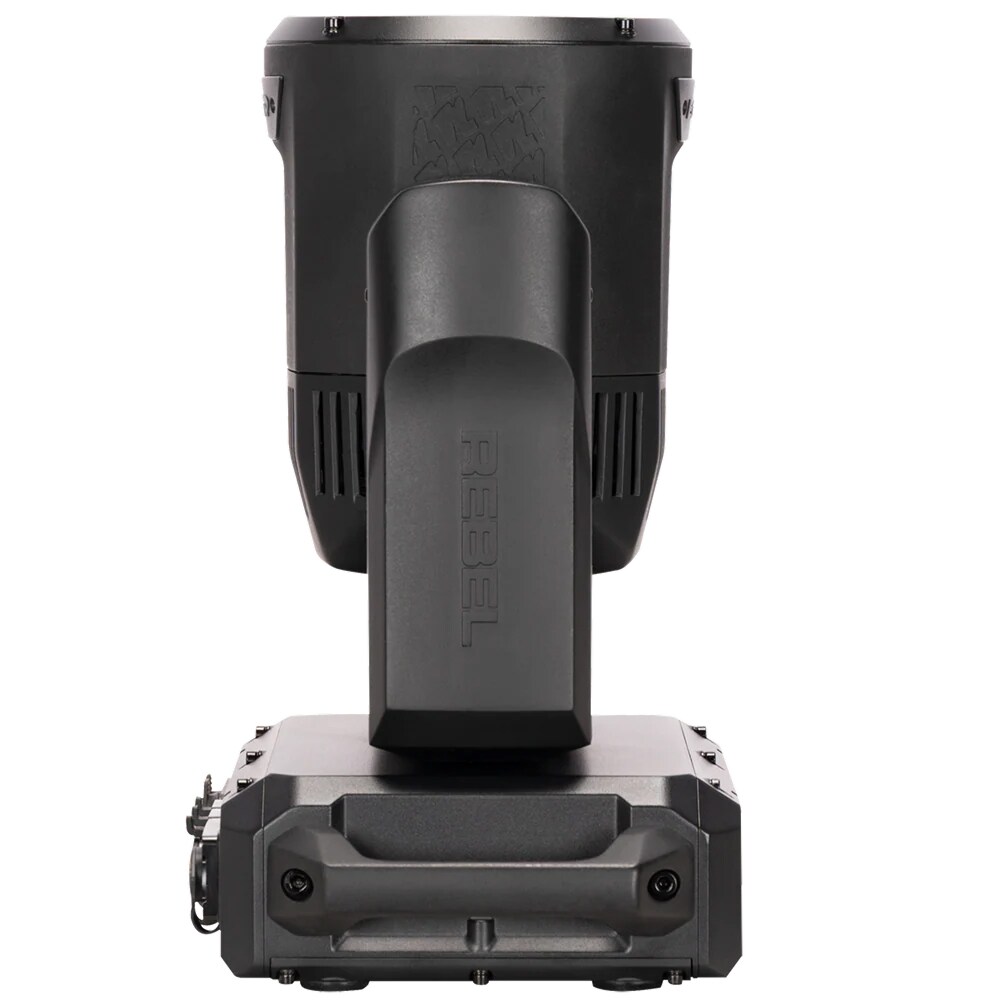

ELATION / REBEL Wash 4

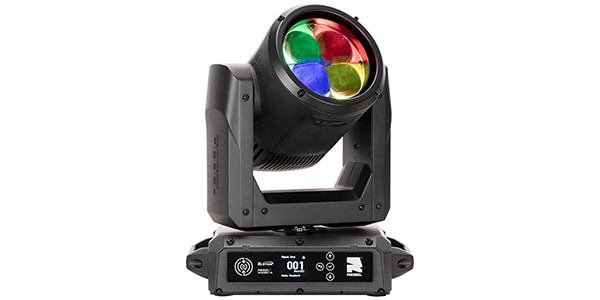

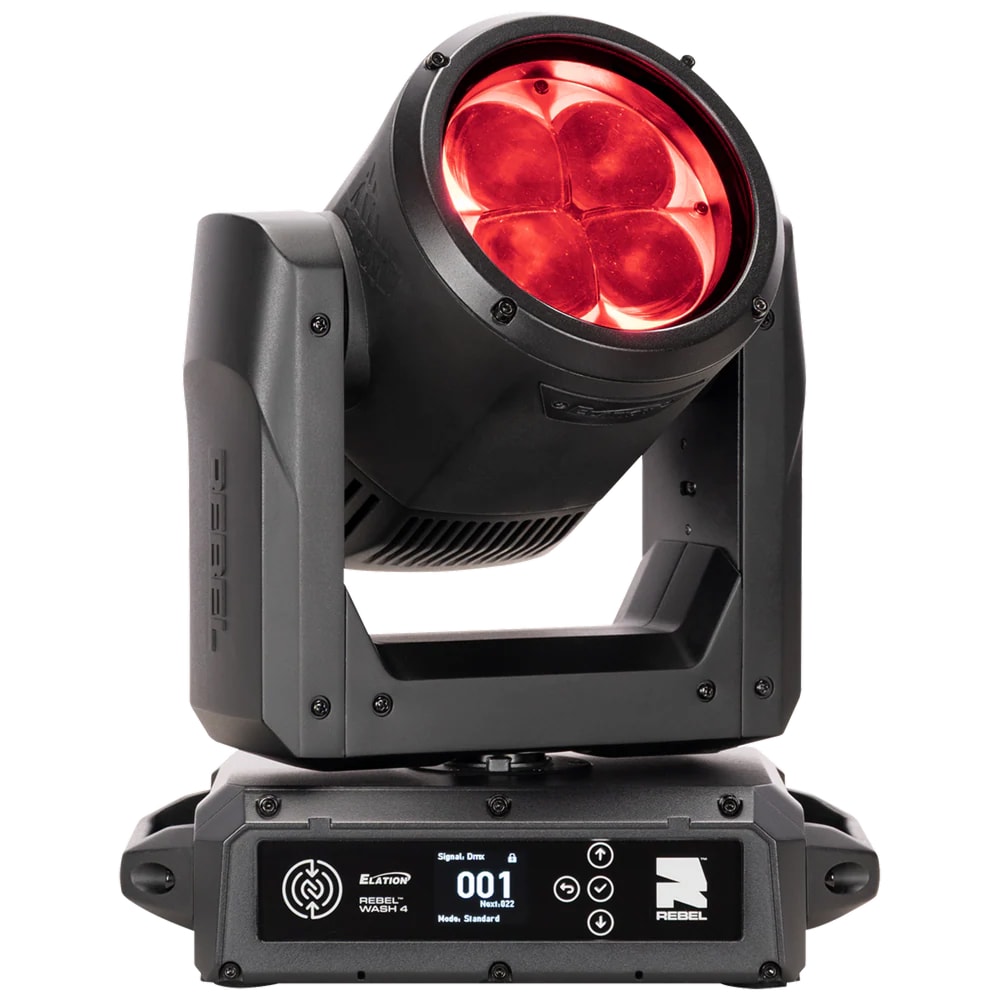

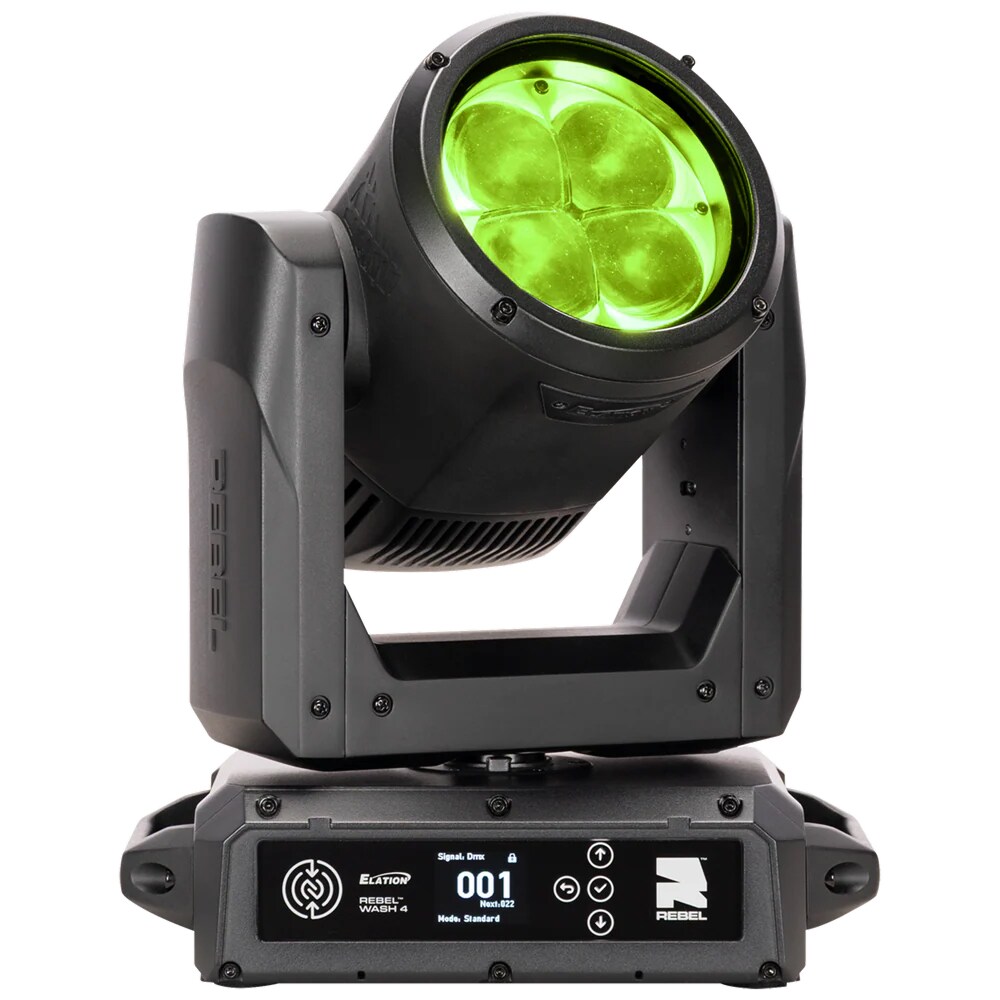

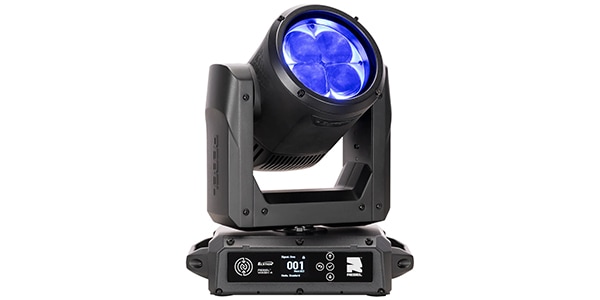

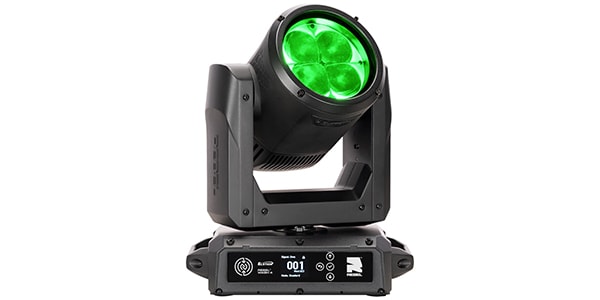

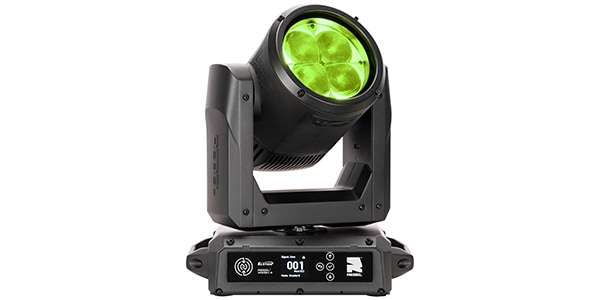

The REBEL WASH 4 is a compact IP65-rated LED wash fixture. With four 60W RGBL emitters delivering up to 4,000 lumens, it provides high-quality color and high-CRI white light. Its fast 5–40° zoom, pixel control, and continuous 360° pan and tilt enable a wide range of dynamic effects. The fully sealed design ensures reliable performance for both indoor and outdoor applications.

■ SOURCE
- (4) 60W RGBL LEDs
- Average LED lifetime: 30,000 hours*
*Measured under laboratory conditions. Actual lifetime may vary depending on environmental conditions, power/voltage, usage patterns, control method, and dimming.

■ PHOTOMETRIC DATA
- Total output: 4,000 lumens
- CRI: 83.4
- TLCI: 67
- Zoom range: 5°–40°
- Beam angle: 5°–40°
- Field angle: 8.5°–56.5°

■ EFFECTS
- Motorized zoom
- Pixel control
- Variable 16-bit dimming curves
- High-speed electronic shutter/strobe
- DMX-adjustable LED refresh rate
- Pan angle: 360° / 540°
- Tilt angle: 360° / 270°
- Continuous 360° pan/tilt rotation

■ COLOR
- RGBL color array
- CMY emulation
- Variable CCT: 2400K–8500K
- Virtual gel swatch book

■ CONTROL / CONNECTIONS
- DMX channel modes: 3 modes
- DMX, RDM, Art-Net, sACN support
- 4-button touch control panel
- Full-color 180° reversible LCD menu
- Hibernation mode (power saving)
- NFC configuration

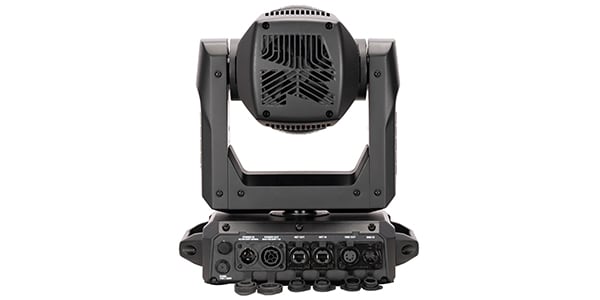

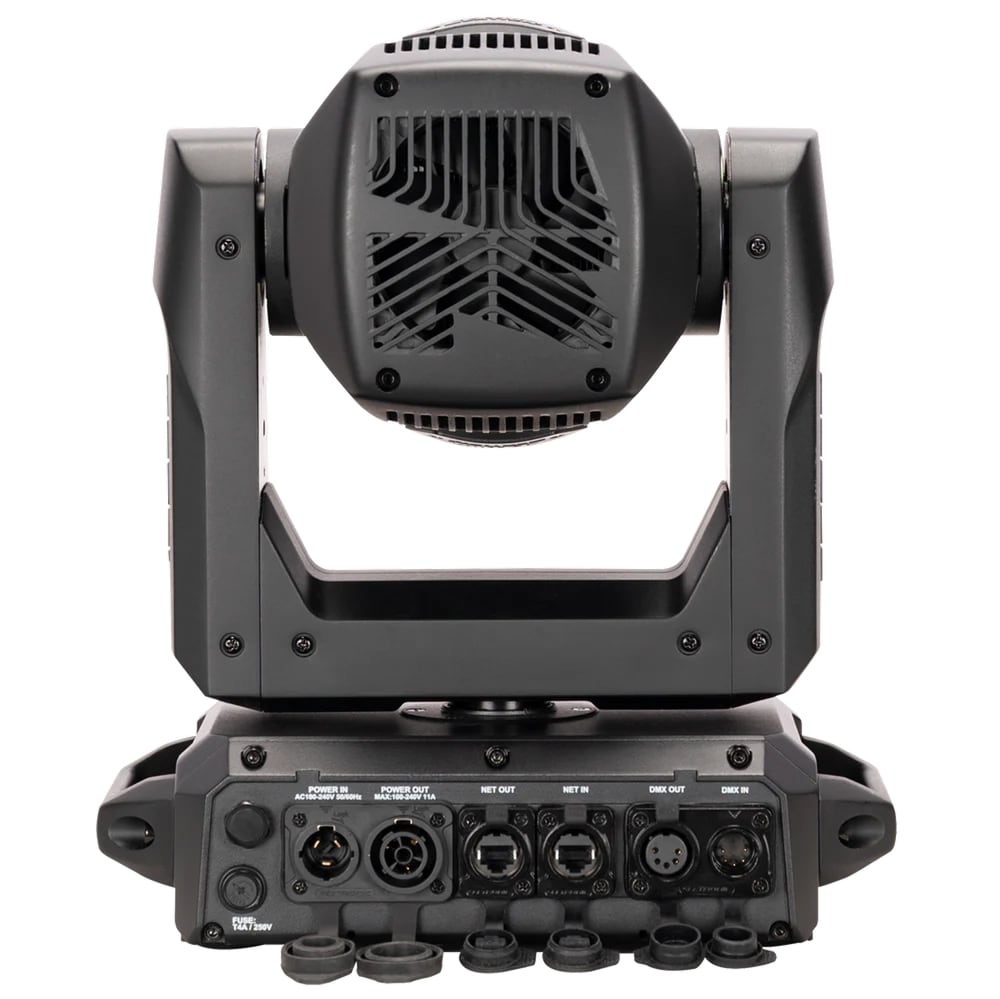

- IP65 locking 5-pin XLR In/Out
- IP65 locking RJ45 Ethernet In/Out
- IP65 locking power In/Through

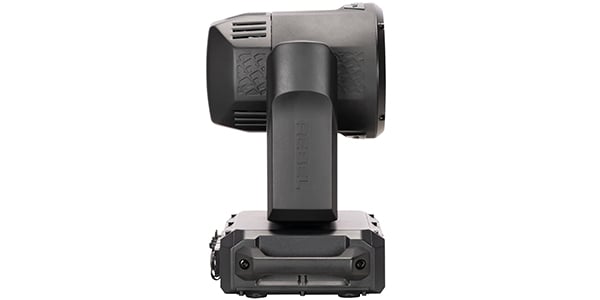

■ SIZE / WEIGHT
- Length: 298 mm
- Width: 205 mm
- Height: 360 mm
- Weight: 8.6 kg

■ ELECTRICAL
- AC 100–240V, 50/60 Hz
- Maximum power consumption: 340 W
- Power-through capacity: 8A (2 units @115V, 5 units @240V)
- Operating temperature range: -20°C to 45°C
- BTU/hr (±10%): 1159.4

■ INCLUDED ITEMS

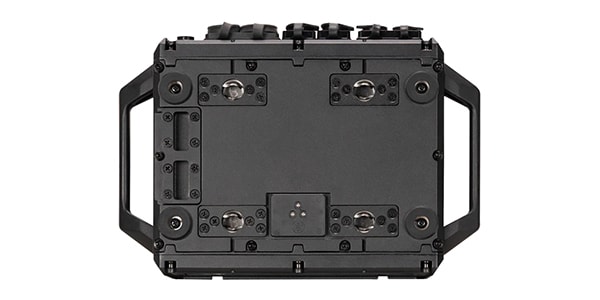

- Omega brackets × 2
- Safety cable
- IP65 locking power cable

■ APPROVALS / RATINGS
- CE / cETLus / FCC / UKCA / IP65
