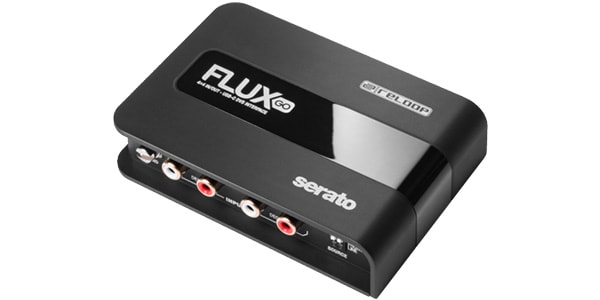

RELOOP / FLUX Go

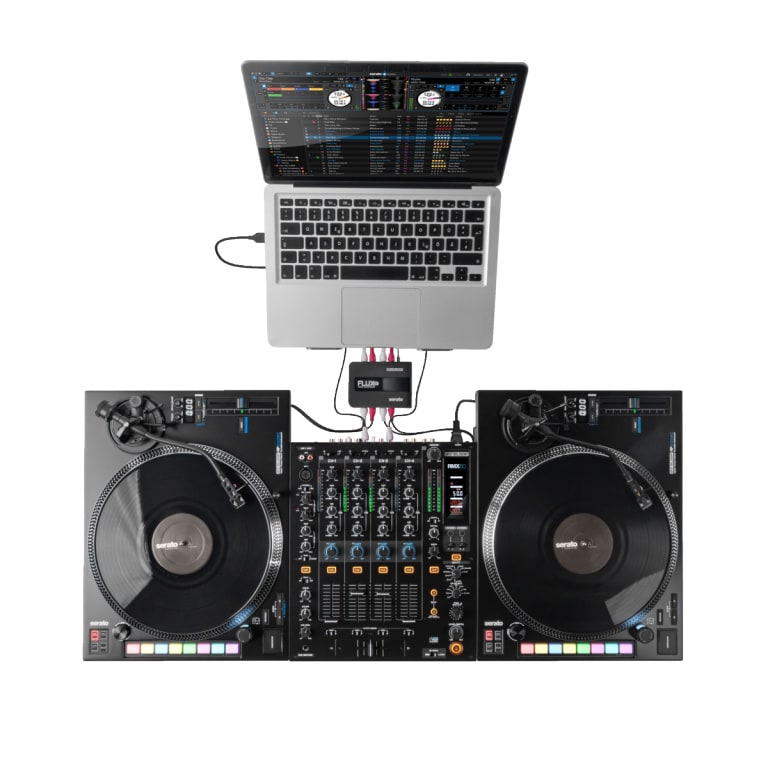

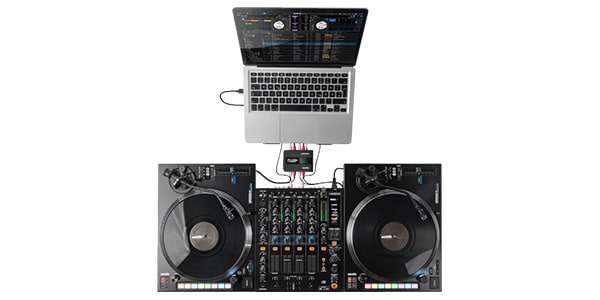

The Reloop FluxGo is a next-generation audio interface that inherits the legacy of ""FLUX"" while successfully miniaturizing its design. It allows you to use Serato DJ Pro with turntables, CDJs, and other media players. Boasting superior audio quality, a refined operating concept, and a club-ready design, it can transform traditional mixers into professional digital vinyl systems (DVS).

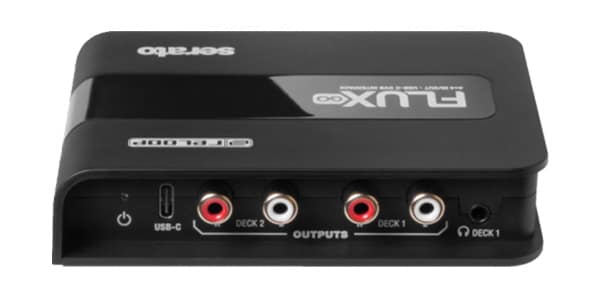

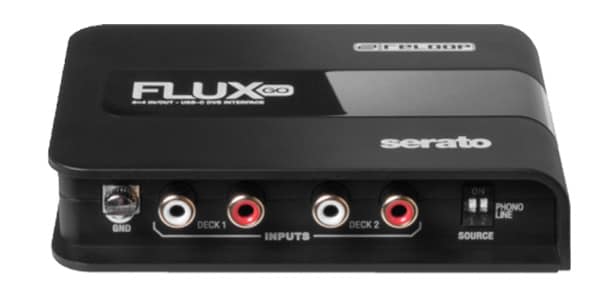

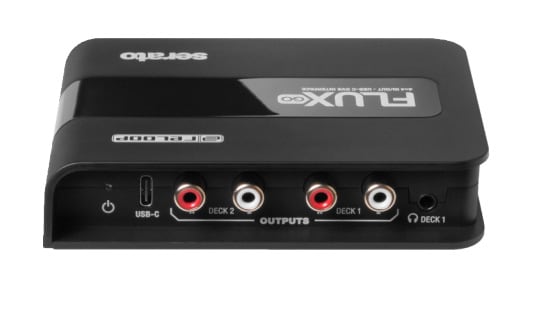

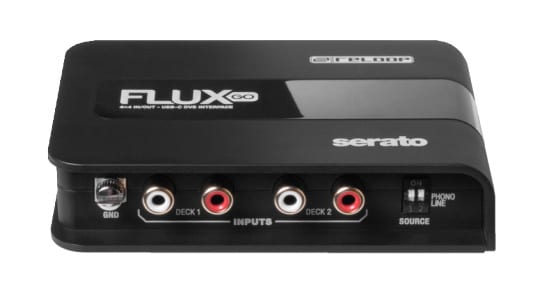

The Reloop ""Flux Go"" features dual stereo inputs and outputs, USB-C bus power for both power and data transmission, and a turntable ground terminal, encompassing all the necessary functions for a professional DVS environment.

Despite its small size, this unit delivers maximum performance, combining lightweight design, compactness, and high durability into a single unit. Its unique enclosure design protects the connections, ensuring long-term reliability even in demanding environments. Its size allows for flexible placement, and its plug-and-play compatibility with Serato DJ Pro makes it ideal not only as a main piece of equipment but also as a cost-effective backup DVS interface.

Furthermore, it delivers studio-grade 24-bit/96kHz sound, making it suitable not only for DJing but also for music production with major DAWs and as a sound card for general listening.

Power/USB:
24-bit/44.1kHz, 48kHz, 96kHz compatible USB audio interface
Class compliant
USB 2.0 high-speed
Power supply: DC 5 V / 500 mA (USB-C)
Audio:
S/N ratio (1kHz reference input level, Aw/20kHz LPF used, input shorted when no signal is present):
Line input +9 dBV, nominal 116 dB, limited to ? 113 dB
Phono input -23 dBV, nominal 97 dB, limited to ? 94 dB
THD + N (1 kHz reference input level, minimum headphone volume, Aw/(20 kHz LPF) used):
Line input 0 dBV, nominal ? 0.007%, limited to ? 0.015%
Phono input -32 dBV, nominal ? 0.015%, limited to ? 0.03%
Maximum Gain (Line mode input at 1kHz/-50dBV, then phono mode reference):

Phono Internal Gain: +32 dB, Nominal ±0.5 dB, Limit ±1 dB

Maximum Input (1 kHz input level to output level less than 1% THD, with Aw/20 kHz LPF):

Line Input: +9 dBV, Nominal +9 dBV, Limit +8 dBV

Phono Input: -23 dBV, Nominal -23 dBV, Limit -24 dBV

Maximum Output (1 kHz input level to output level less than 1% THD, headphone volume at maximum, with Aw/20 kHz LPF):

Line 10K OHM / +9 dBV, Nominal +9 dBV, Limit +8 dBV

Phone 32 OHM / +3 dBV, Nominal +3 dBV, Limit +2 dBV

General:

Dimensions: 115 (W) x 82 (depth) x 26 (height) mm
Weight: 168g
Minimum System Requirements: Refer to the manufacturer's specifications for DJ software system requirements.
Package Contents: 1 x USB-C to USB-C cable, instruction manual
