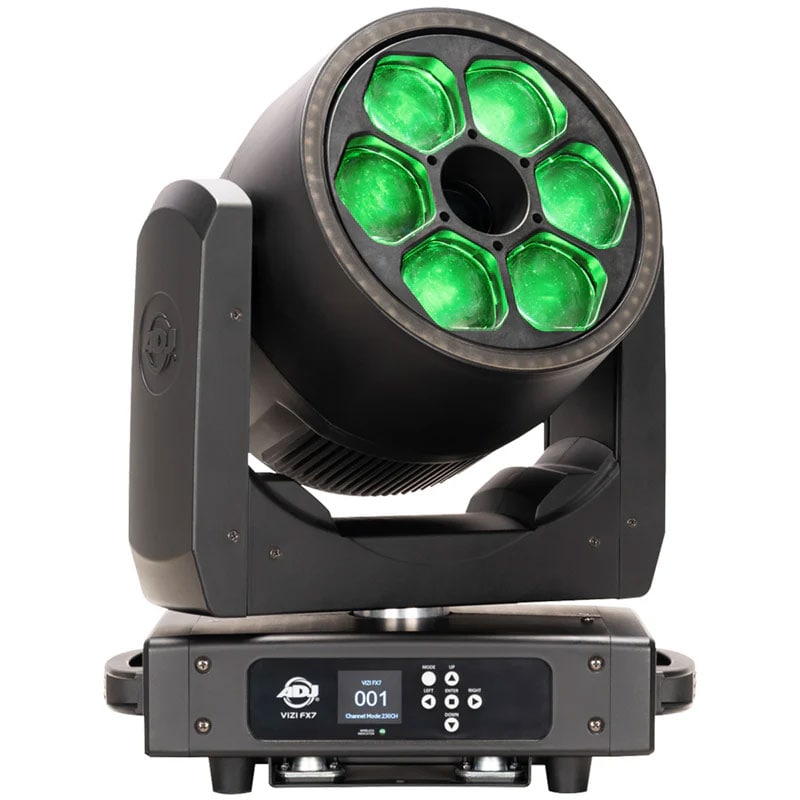

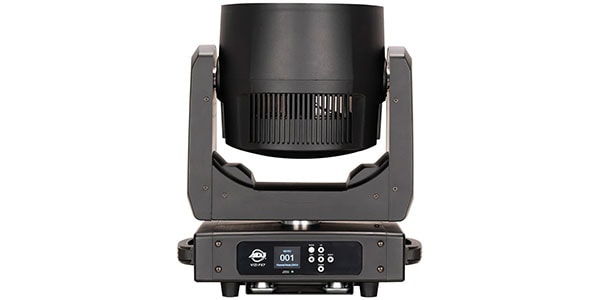

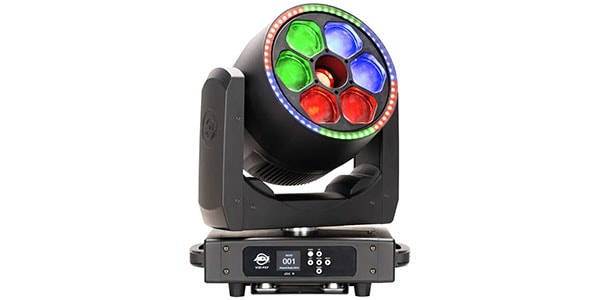

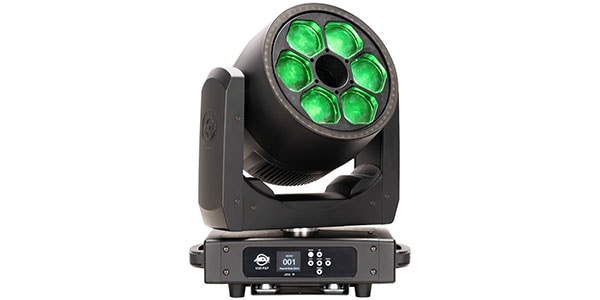

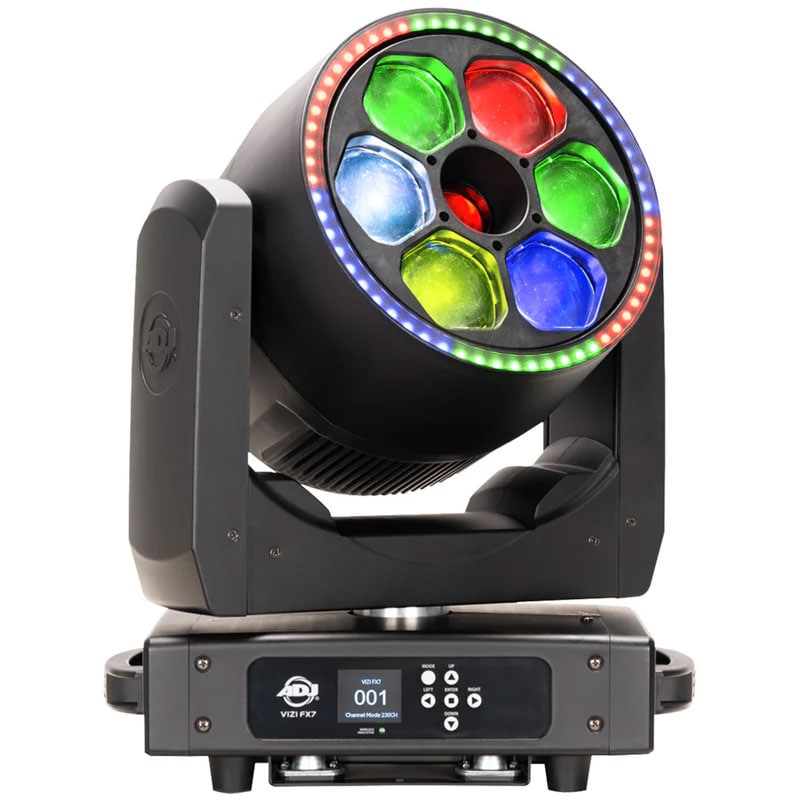

AMERICAN DJ / Vizi FX7

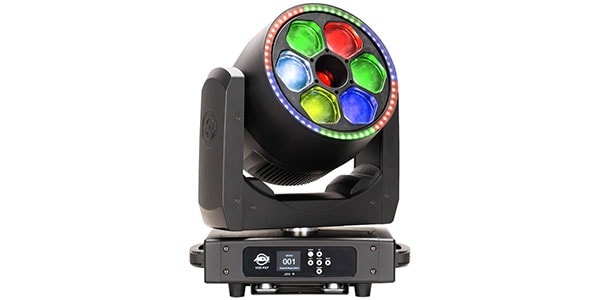

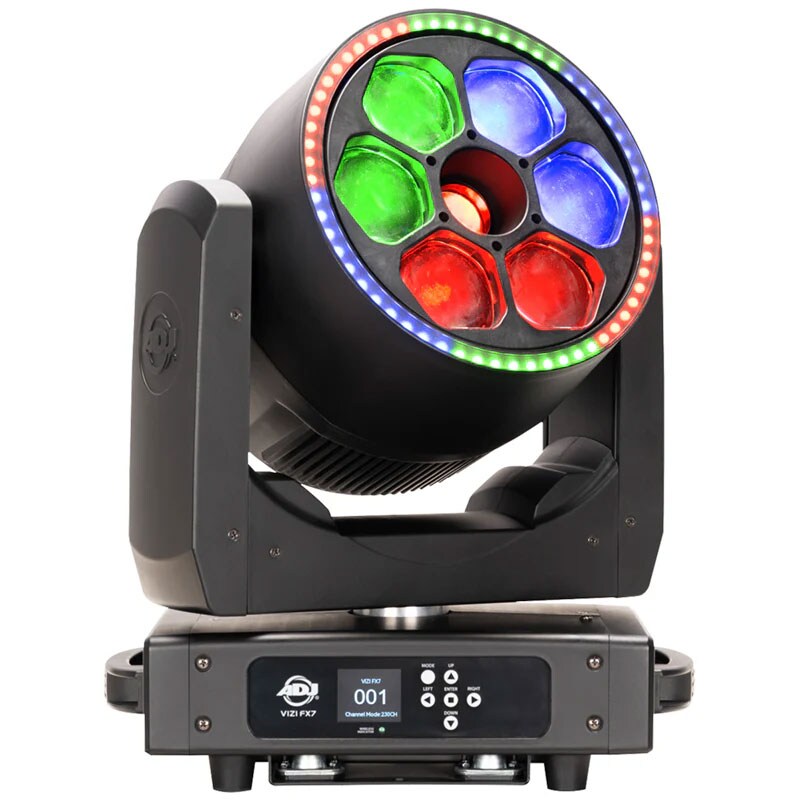

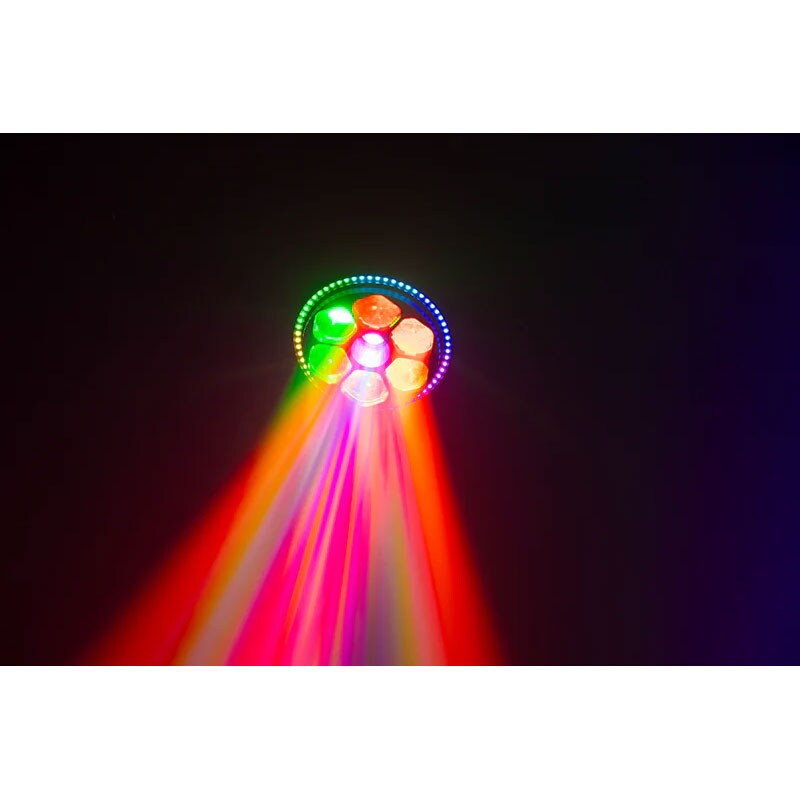

A multifunctional moving‑head fixture that combines four effects in one: beam, wash, kaleidoscope, and LED ring. With pixel control of the main LED and a wide range of built‑in FX, it delivers versatile aerial looks whether used alone or in combination. Designed for professional use, it is ideal for both live events and permanent installations.

■ SOURCE
[Main + Kaleidoscope Center]
- 60W RGBL LED x7
- Color temperature: 2800K-8500K
- Average LED lifetime: 50000 hours*

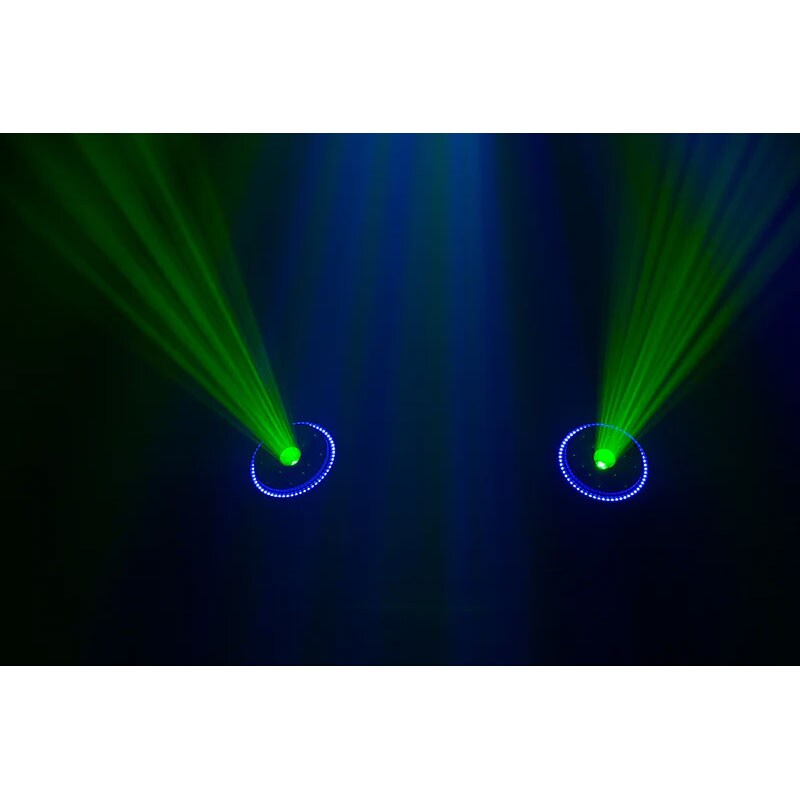

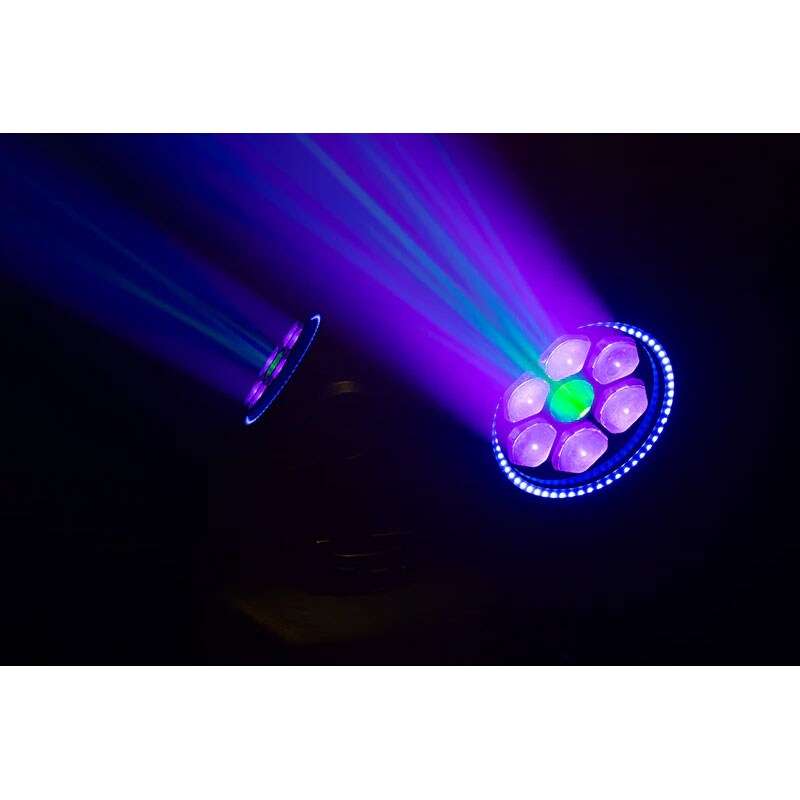

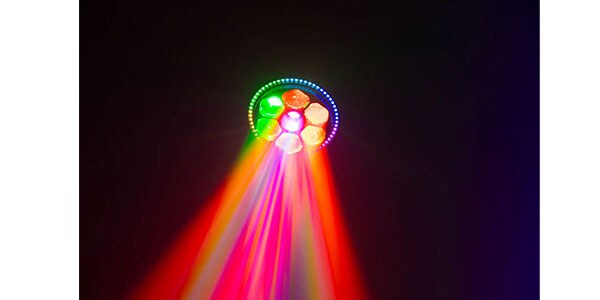

[Ring]
- 0.5W RGB LED x60
- Average LED lifetime: 50000 hours*

*Lifetime varies depending on environmental conditions, voltage, usage patterns, control, and dimming.

■ PHOTOMETRIC DATA
- TBA (zoom out, full on)
- CRI: TBA

■ COLOR
- Main: RGBL x6
- Multi-color kaleidoscope center
- Ring: RGB
- Built-in color macros
- Color temperature control: 2700K-10000K (linear)
- Presets: 2800, 3200, 3600, 4500, 5000, 5600, 6200, 6800, 7500, 8500K

■ EFFECTS

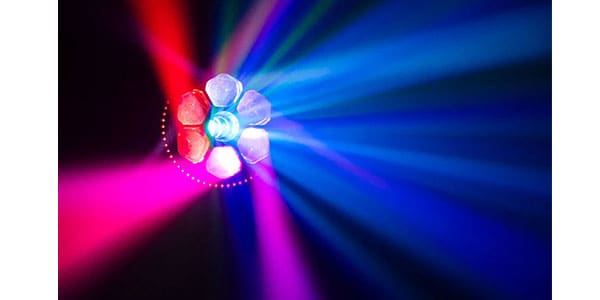

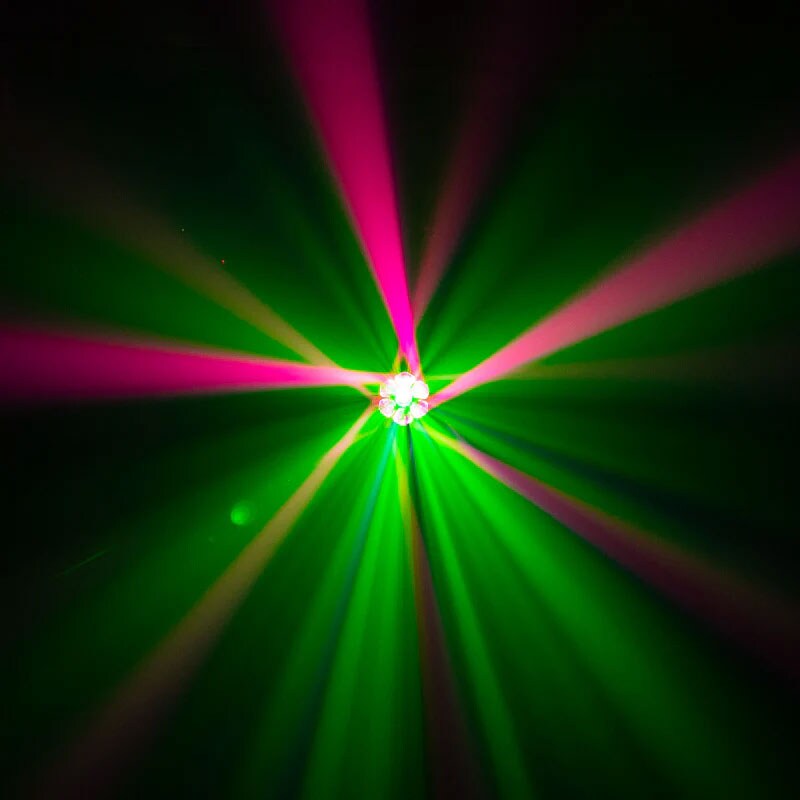

- Bi-directional beam rotation (main LEDs)
- Individual pixel control (main LEDs)

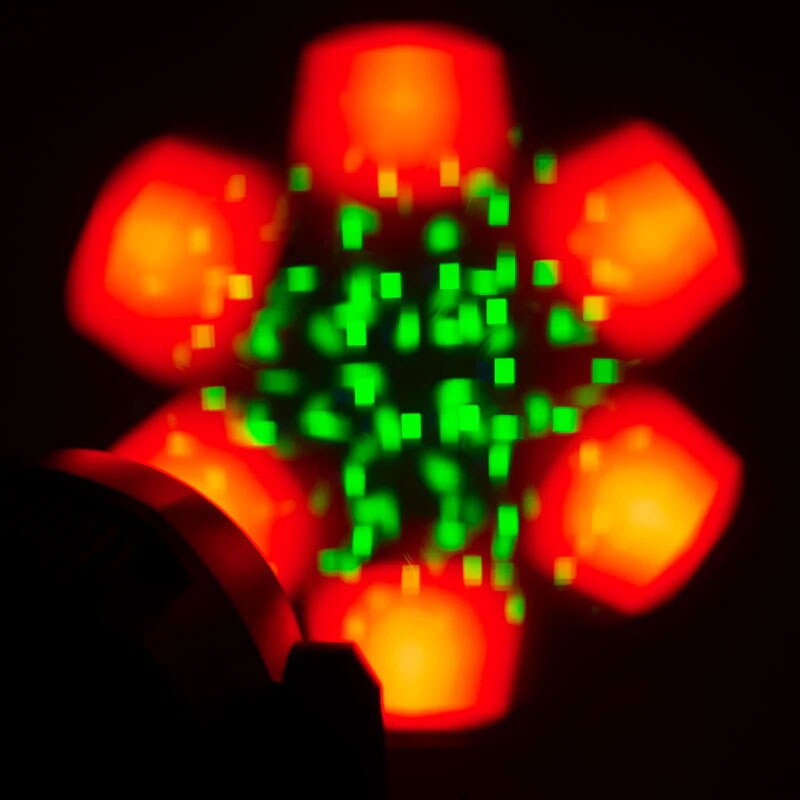

- Bi-directional rotation (multi-color kaleidoscope)
- Built-in FX programs (speed adjustable)
- Motorized zoom: 8-38 degrees
- Electronic strobe: 1Hz-20Hz

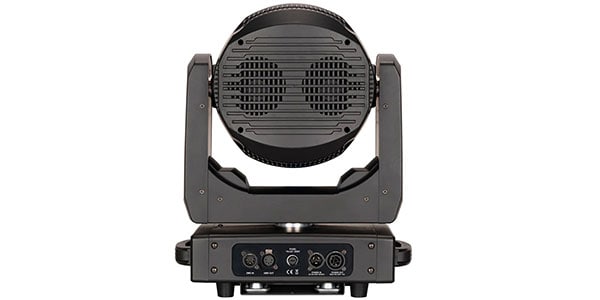

■ CONTROL & CONNECTIONS
- DMX channel modes: 31ch / 55ch / 57ch / 60ch / 237ch + user-defined mode
- Supported: DMX, RDM
- Selectable LED refresh rate (900Hz-25000Hz)
- Dimming modes: Standard, Stage, TV, Arch., Theatre, Stage2, User (0.1s-10s)
- Dimming curves: Square, Linear, Inv. Square, S-Curve
- 0-100% dimming
- Fan cooling

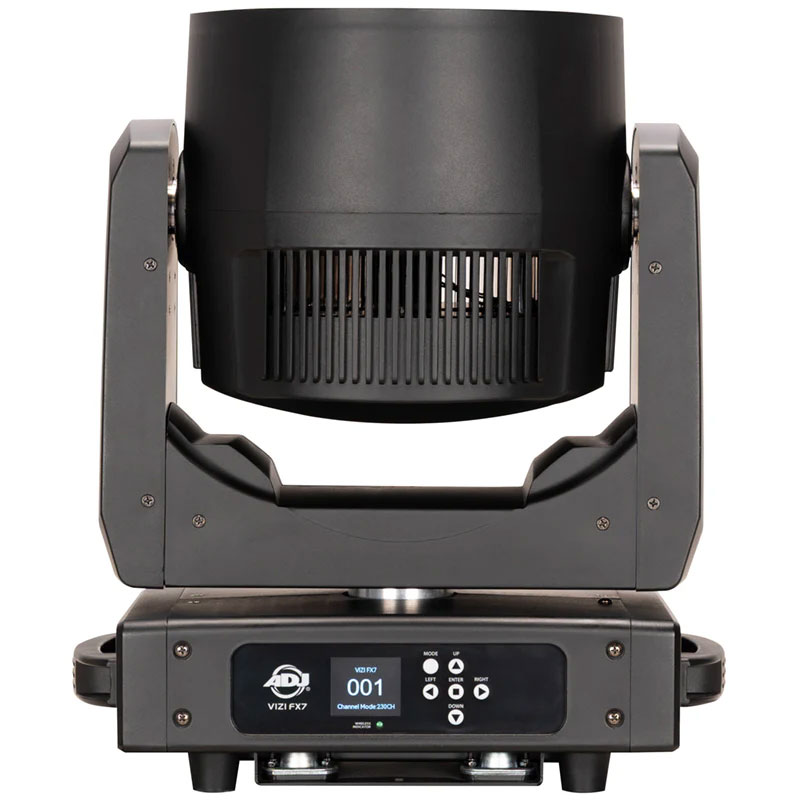

- 6-button touch panel
- 180-degree reversible LCD color menu
- 8-bit / 16-bit resolution

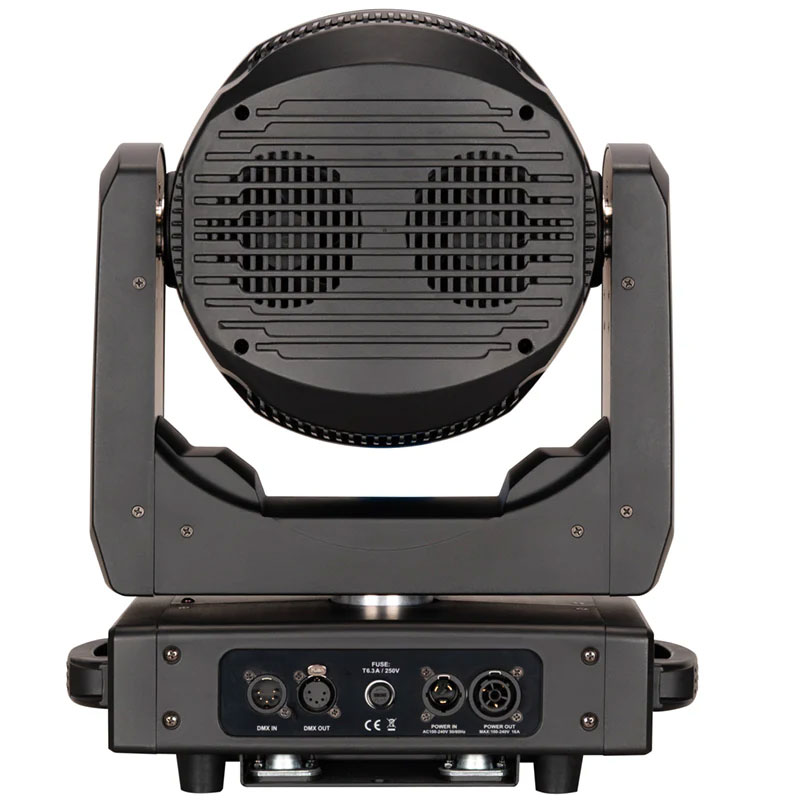

- 5-pin XLR DMX In/Out
- IP65 locking power In/Out

■ PAN & TILT
- Pan: 540 degrees
- Tilt: 190 degrees
- 3-phase motors

■ SIZE & WEIGHT
- Length: 365mm
- Width: 220mm
- Height: 434.4mm
- Weight: 13.5kg (29.8 lbs)

■ ELECTRICAL & THERMAL
- AC100-240V, 50/60Hz
- Max power consumption: 400W (3.7A at 120V)
- Power linking: 3 units at 120V, 6 units at 230V
- Operating temperature: -25 to 45 degrees C
- Max housing temperature: TBA

■ TECHNICAL DATA
- Noise level (3ft): TBA
- BTU: TBA
- BTU/H: TBA

■ APPROVALS & RATINGS
- cETLus (Control #5027824)
- CE
- FCC
- UKCA
- IP20

■ INCLUDED ACCESSORIES
- Outdoor-rated locking power cable (6ft) x1

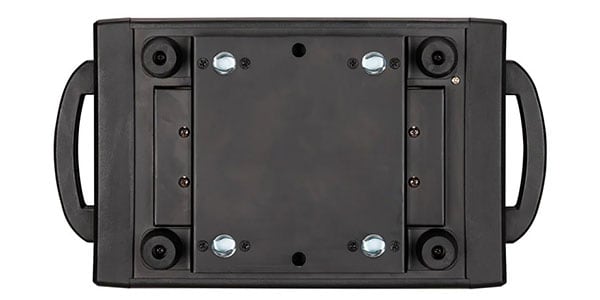

- Omega brackets (107mm) x2

Specifications are subject to change without notice.
