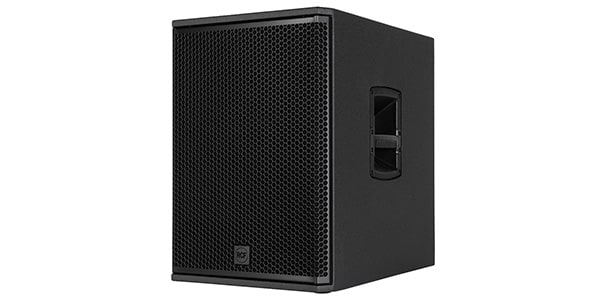

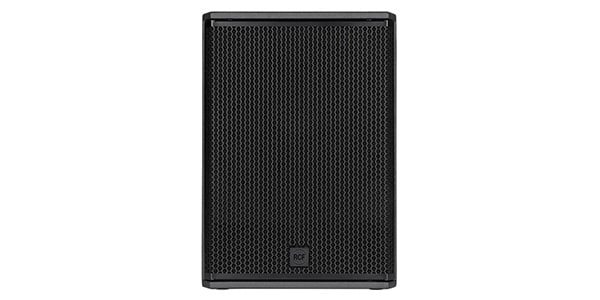

RCF / SUB15-AX　Black

The RCF/SUB 15-AX is a 15"" high-output active subwoofer for live sound applications.

■Powered Subwoofer
■15""
■1100W (RMS)
■31.4kg
■1 unit
■Black

The SUB 15-AX is a high-output 15"" active subwoofer for live sound applications. It features full-featured processing, a color touchscreen, and Bluetooth remote control. The combination of a state-of-the-art transducer and a powerful Class D amplifier delivers up to 133 dB of high-sound pressure for superior clarity and headroom. The SUB AX series subwoofers are designed for small to medium-sized venues and offer excellent portability. The SUB 15-AX is ideal for 10"" and 12"" LF-equipped loudspeakers. Its dual crossovers, 8-band EQ, routing, delay, cardioid settings, and recallable crossover presets allow for speaker management functions to be centralized in the subwoofer. The polyurea-coated plywood cabinet features a shielded Powercon True1 Top connector.

■2200W Class-D amplifier
■Maximum SPL 133 dB
■15"" woofer, bass reflex design
■Digital crossover with presets
■Polyurea-coated plywood cabinet
■LiveRemote app compatible

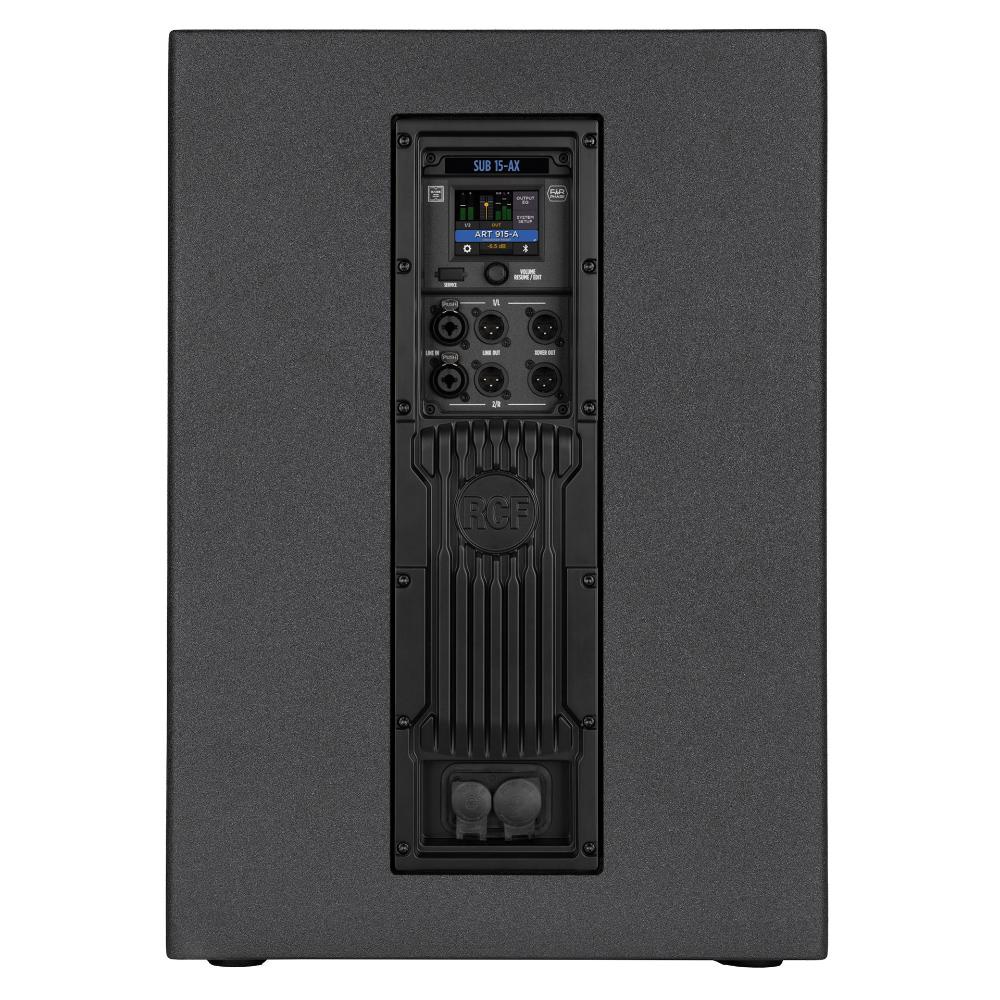

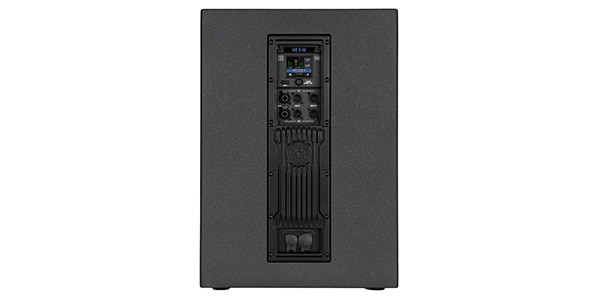

■Dual XLR/TRS combo inputs + Link, dual XLR crossover outputs
■Bass Motion Control for excursion management
■Powercon True1 Top shielded AC connector
