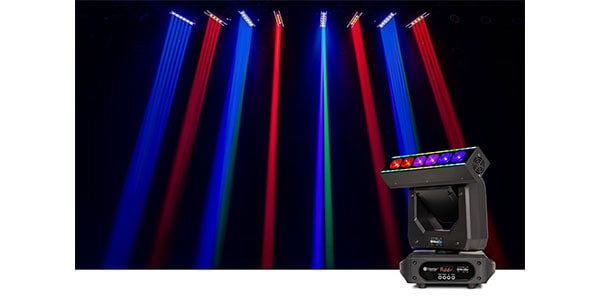

ColorKey / GrooveBar FX

This moving‑head bar features six 20W RGBW LEDs that produce tight 3° beams and dynamic sweeping effects with its infinite‑rotation head. The dual RGB strip zones support dimming and macro effects, while the built‑in FX engine offers 15 types of chases, breaths, pulses, and more. With pixel control, it enables highly detailed and expressive lighting effects.

■ Type: Lighting Effect
■ Light Source: 6 × 20W RGBW LEDs with RGB strip
■ Illuminance: 29,200 lux @ 2m
■ Beam Angle: 3.4°
■ Strobe: 0–20 Hz
■ Dimmer: 0–100% smooth linear dimming
■ Pan: 540° (fine adjustment supported)
■ Tilt: 180° (fine adjustment supported)
■ Head Rotation: Infinite rotation
■ DMX Channels: 23 / 40 channels
■ Control Modes
- DMX512
- Master/Slave
- Auto
- Sound Active

■ DMX Connections: 3‑pin DMX IN/OUT
■ Power Consumption: 150W
■ Power Supply : AC100–240V, 50/60Hz
■ Dimensions: 28.5 × 17.5 × 33.5 cm
■ Weight: 4.9 kg
