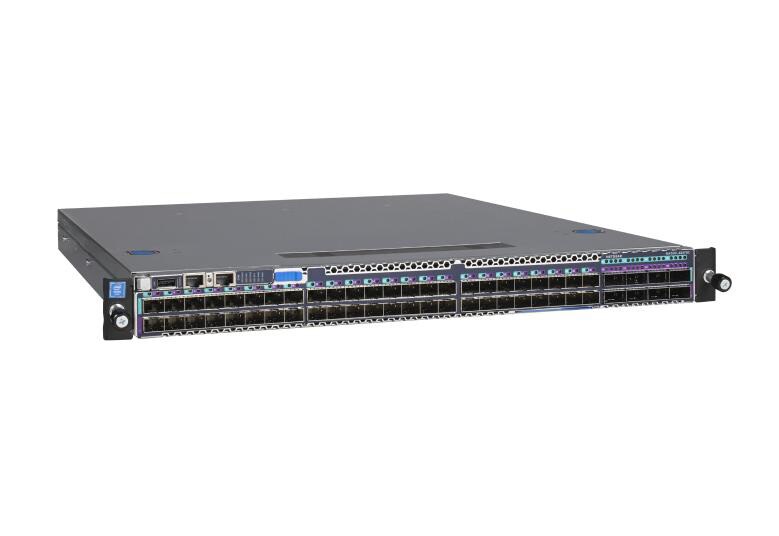

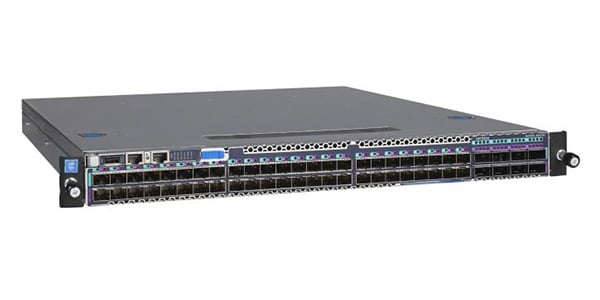

NETGEAR / ProAV dedicated M4500-48XF8C (XSM4556)

The NETGEAR/ProAV dedicated M4500-48XF8C (XSM4556)[LF] is a L3 fully managed switch with 8 x 100G QSFP28 ports and 48 x 25G SFP28 ports.

[This product is for SDVoE/ProAV only. Please contact our sales department for purchasing information.]
The M4500 series combines the configurability of a matrix switcher with the power and scalability of Ethernet, supporting hundreds of AV over IP endpoints. Equipped with IGMP Plus, it significantly simplifies system construction while reducing costs.
■Product Specifications
・Noise Level: 68.0dB@25℃
・Maximum Power Consumption: 394W
・25G SFP28 Ports: 48 (10G/25G)
・100G QSFP28 Ports: 8 (100G/50G/40G)
・Power Supply and Fans: Two power supply modules and six fan trays installed
・Management: CLI only (local console, TELNET port: 1223, SSH port: 1234)
・Management Ports: 1G Ethernet service port (OOB, RJ45) for out-of-band management, RS232 straight-through serial RJ45 for local management console
・Form Factor: Full rack size (1U, 508mm depth), two mounting ears (front), rail kit (rear)
・Energy Conservation Law Notice: As this is a Layer 3 switch, it is not subject to the Energy Conservation Law.
