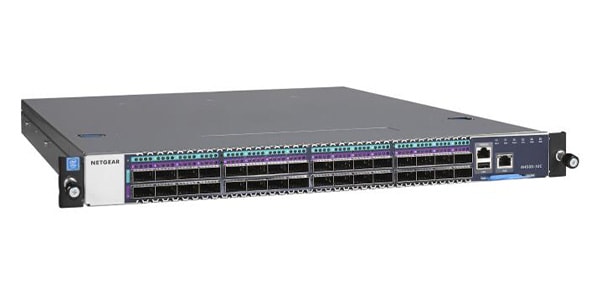

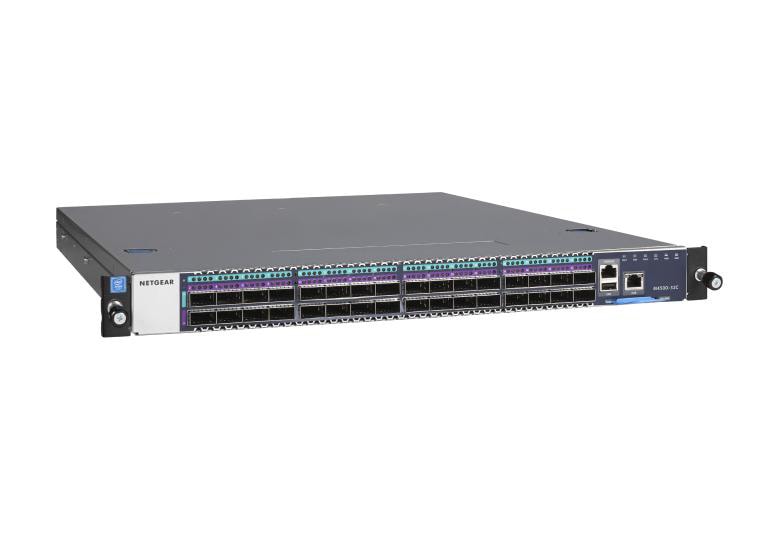

NETGEAR / ProAV dedicated M4500-32C (CSM4532)

The NETGEAR/ProAV dedicated M4500-32C (CSM4532)[LF] is a 100G QSFP28 x 32 L3 fully managed switch.

[This product is for SDVoE/ProAV only. Please contact our sales department for purchasing information.]
The M4500 series combines the configurability of a matrix switcher with the power and scalability of Ethernet, supporting hundreds of AV over IP endpoints. Equipped with IGMP Plus, it significantly simplifies system construction while reducing costs.
■Product Specifications
- Noise Level: 64.0dB @ 25°C - Noise level is reduced when using two PSUs.
Maximum Power Consumption: 426W
100G QSFP28 Ports: 32 QSFP28 ports (100G/50G/40G)
PSU and Fans: Two modular power supply units and six modular fan trays installed
Management: CLI only (local console, TELNET port: 1223, SSH port: 1234)
Management Ports: 1G Ethernet service port (OOB, RJ45) for out-of-band management, RS232 straight-through serial RJ45 for local management console
Form Factor: Full rack size (1U, 508mm depth), two mounting ears (front), rail kit (rear)
Energy Conservation Law Notice: As this is a Layer 3 switch, it is not subject to the Energy Conservation Law.
