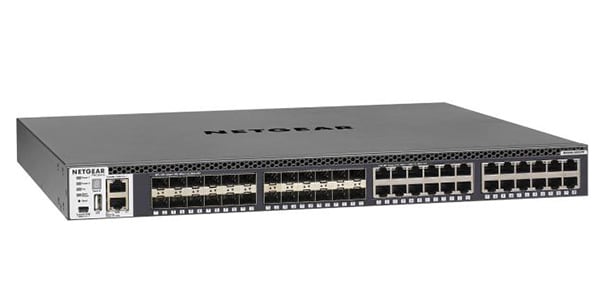

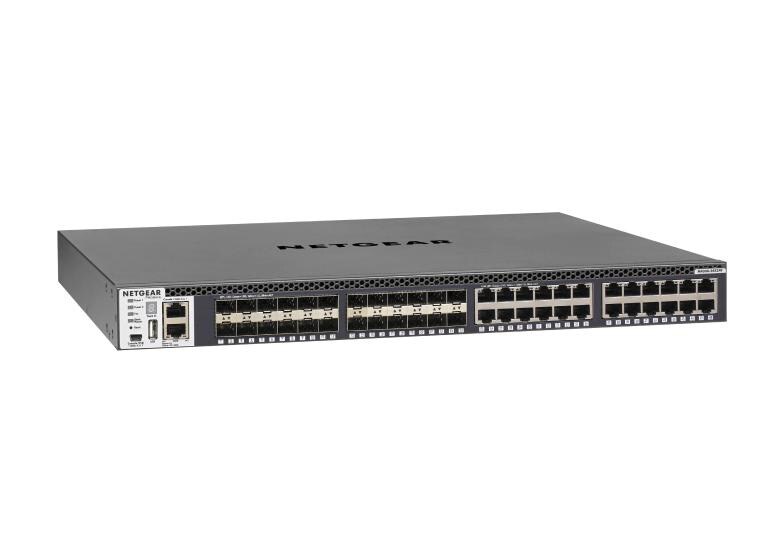

NETGEAR / M4300-24X24F (XSM4348S)

NETGEAR/M4300-24X24F (XSM4348S)[LF] is a stackable L3 fully managed switch with 24 10G RJ-45 and 24 10G SFP+ slots.

Stackable, ideal for IT cores and AV-over-IP deployments

■Product Specifications
・24 x 10G RJ-45 ports
・24 x 10G SFP+ slots
・1 x Power Supply Bay (pre-installed with one APS250W)
・Switching capacity: 960Gbps
・Operating noise: 35.8dB
・Maximum power consumption: 161W
*Power supply redundancy is possible by adding the separately sold power supply module (APS250W-100AJS). Maximum power consumption remains unchanged even with redundancy.
*PTP-TC (PTPv2) not supported.
Management options: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab. Out-of-band 1G port (front panel).
Console: RJ-45 RS232 (front panel).
Console: Mini-USB (front panel).
Storage: USB (front panel).
Dual firmware image and configuration file storage enables updates with minimal service interruption.
Energy Conservation Law Notice: As this is a Layer 3 switch, it is not subject to the Energy Conservation Law.
