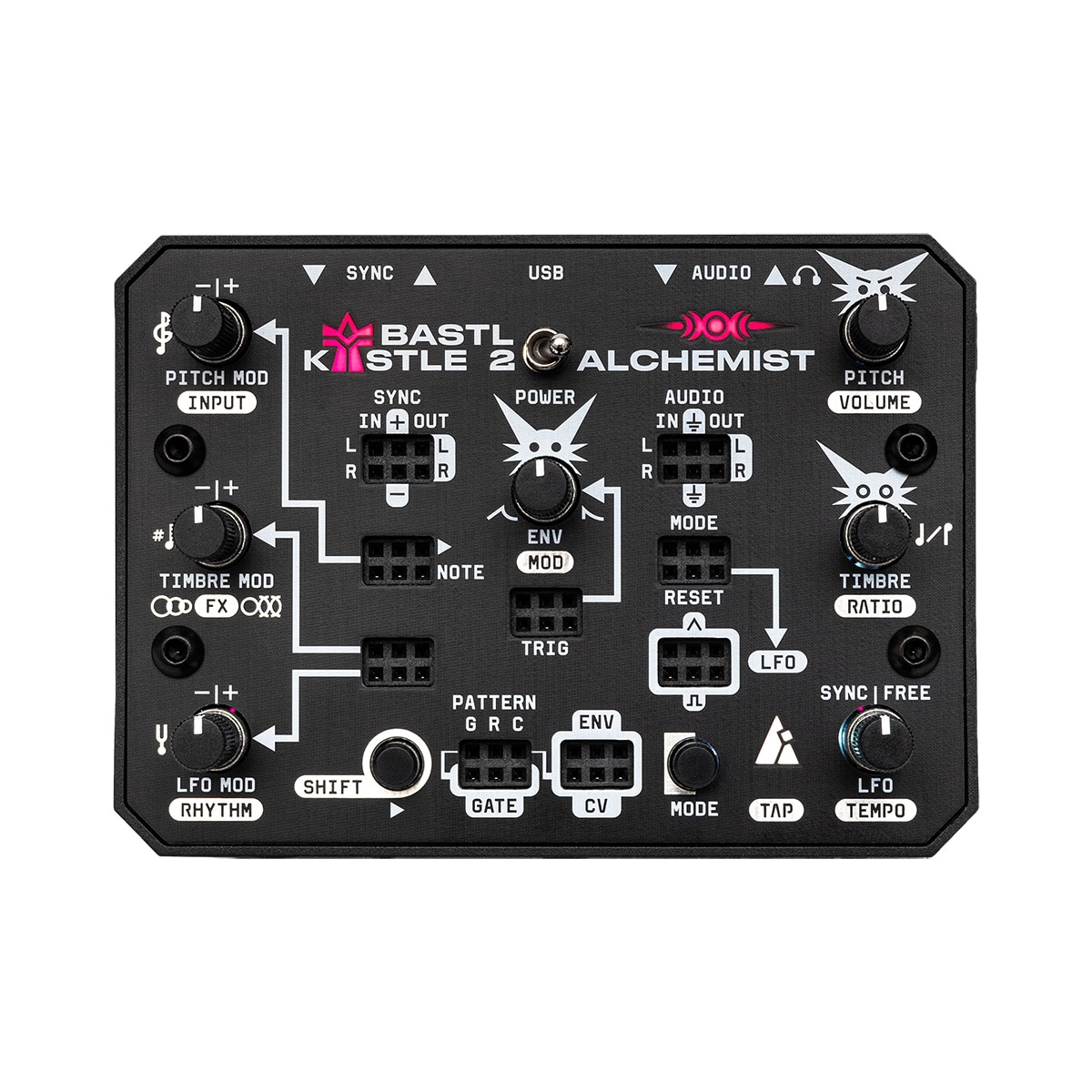

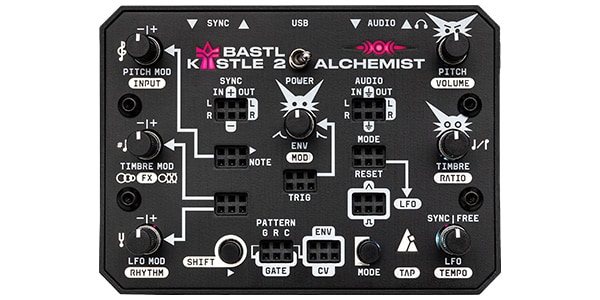

BASTL INSTRUMENTS / KASTLE 2 ALCHEMIST

Kastle 2 Alchemist is an instrument based on patchable hybrid synthesis. Monophonic yet endlessly discovering melody and harmony, it captivates you with astonishing magic. By patching control signals to its two PITCH MOD inputs to build programmable sequences, you can maintain your preferred scale while unfolding a world of melodic inspiration beyond classic arpeggios.

DETAIL
5 Synthesis Modes
Kastle2 Alchemist features a carefully tuned, wide tonal range. Its five synthesis modes—FILTER, FM, HYPERSINE, SUPERSAW, and GLITCHNOISE—accessible via the main TIMBRE sweep, can be further refined using the RATIO control.

The ENV macro knob acts on various parts of the synth and sequence engine to maximize musicality. You can also continuously morph between synthesis modes to access highly unique sounds.

Furthermore, the dual FX section allows you to apply effects! You can dissolve arpeggios into echoing reverberations with a spacious delay, or color your sound with effects like chorus, flanger, distortion, and comb filter, each custom-tuned for each synthesis mode.

Using the PITCH SLIDE macro applies pitch envelopes and portamento, granting access to sounds with a rubber-like, smooth texture.

You can also customize rhythms and scales using a web-based app.

The smallest modular synth that fits in your pocket!
The Kastle 2 Alchemist is a compact, portable instrument powered by 3 AA batteries or USB-C. Take it anywhere and let it inspire you anytime.



It excels at sessions with other portable gear, allowing you to sync via sync in/out ports, mix external signals with the Alchemist's output using the audio input, or route them through the built-in effects.

SPECIFICATION
Features
5 Synth Modes
・ FILTER
・ FM
・ SUPERSAW
・ HYPERSINE
・ GLITCHNOISE
Hybrid Synthesis
・ 4 Oscillators
・ Feedback FM
・ RAW Waveform Mixing
・ Ring Modulation
・ Track & Hold
・ Stereo Noise (with Track & Hold)
・ Stereo filter
・ Transient shaper
Dual FX section
・ Left channel: Delay
・ Right channel: Chorus/Flanger/Distortion
Stereo audio processing: 44kHz / 16-bit
PITCH knob: Range ±3 octaves from base note
PITCH MOD attenuator knob: For pitch modulation
・ NOTE Input: Quantized pitch with selectable scale (updated by trigger)
・ PLAY Input: Generates/modifies 3rd, 5th, or octave above NOTE; triggers envelope on change; time quantizes to PLAY GRID ? Ideal for arpeggios!
・ User-defined scales (Web app compatible)
・ BANK+PITCH MOD: Change quantized scale
・ BANK+TIMBRE MOD: Adjust root note
・ BANK+LFO MOD: Fine tuning
・ BANK+PITCH: Change octave & preview
TIMBRE Knob: Main tone sweep
・ Sweep adjustment via RATIO (Oscillator detune ratio & waveform mix ratio)
・ Trigger sound with SHIFT button
・ Trigger sound via TRIGGER input
・ TIMBRE MOD input (with attenuation)
MODE input (with attenuator): Change synth MODE via CV
ENV knob
・ Turn right to adjust decay; TIMBRE focuses on transients
・ Turn left to adjust Attack & Decay, TIMBRE focuses on BODY
・ Left/right extremes activate DRONE mode
・ Longer decay settings slow down arpeggio
・ MODE MORPHING moves left
・ ENV MOD input (with attenuator)
・ ENV MOD updates only when triggered
・ Patchable ENV output for envelope
LFO
・ Triangle wave / Pulse wave output
・ Reset input
・ Mod with attenuator
・ Synchronized or free-running
Tempo Generator: Tap tempo / Divider / External clock input
Pattern Generator (Tempo Sync): GATE & CV output, patch programmable
GATE Generator: User-programmable rhythm patterns (web app compatible)
Stereo Input (up to +12dB input gain), handles signals up to 6 Vpp
Input can be mixed with outputs or routed to internal effects
Stereo Output: Drives headphones up to 250Ω
Analog SYNC Input
Analog SYNC Output
Modular I/O connection via SYNC jack right channel
USB MIDI Input (Clock, Note, CC, Pitch Bend)
10 micro patch cables included
USB-C (for firmware updates and power supply)
Powered by 3 AA batteries (compatible with both rechargeable and non-rechargeable types)
Power consumption: Approx. 100–150mA (Approx. 15–18 hours of use with 3 AA batteries)
