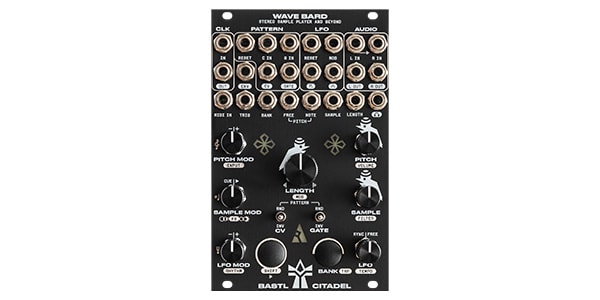

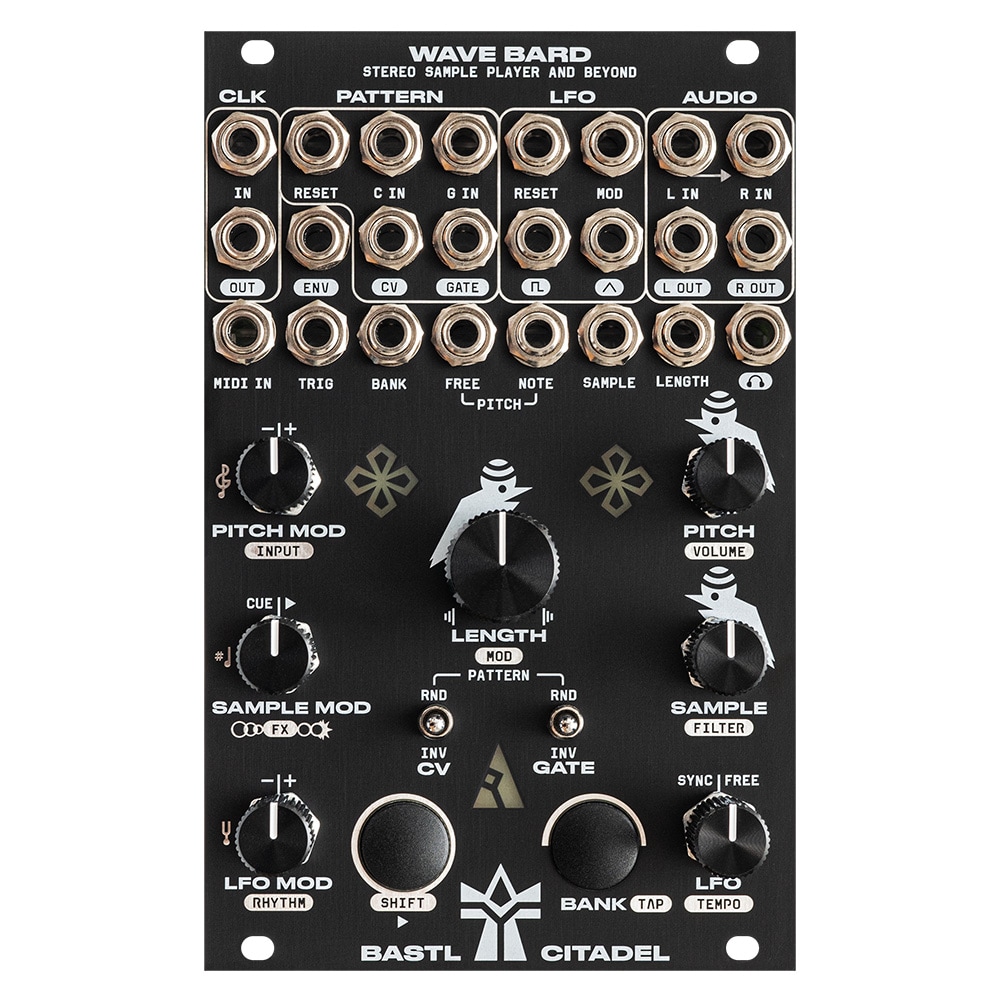

BASTL INSTRUMENTS / Citadel Wave Bard

Wave Bard is an experimental sound module that lets you freely manipulate stereo samples. It features a web editor for uploading and editing your own samples, along with diverse modulation functions including quantized pitch, reverse playback, built-in LFOs, and a pattern sequencer. This unit enables flexible sound design that sparks creativity.

DETAIL
Beats & Melodies
Samples are organized by bank and can be selected/sequenced using knob control or CV from the built-in pattern generator or LFOs.
Using the LENGTH knob and Wave Bard's unique reverse envelope, you can even play sounds in reverse!

This module is more than just a beat machine.
Play melodic samples with quantized scales and add color to your sound using the built-in filter, delay, and chorus/flanger effects.

Furthermore, using the web-based app, you can load not only your own samples but also rhythm and scale data.

Midi Inside Out
The Citadel Wave Bard isn't just a soundbox either.

Connect it to the USB port on the module's rear panel, and it functions as a powerful MIDI controller and sequencer.

Send precisely generated USB MIDI data to your DAW or USB MIDI devices, discovering new ways to play and interact through a uniquely modular interface.

Additionally, Citadel Wave Bard can receive TRS MIDI via its front panel and send/receive USB MIDI through the rear USB connector!

SPECIFICATION

Specification Overview
● 8 samples per bank (adjustable from 3 to 32 samples in the editor)
● 6 factory preloaded banks (expandable to 32 banks via the Editor)
● Load user samples via a web-based application
● Sample time: 89 seconds mono, 44 seconds stereo (at 44kHz). Longer sample times possible by lowering the sampling rate
● Stereo audio processing: 44kHz / 16-bit

Pitch
● PITCH knob with ±2 octave range (4 octaves total)
● Modulate pitch with PITCH MOD attenuator knob
● NOTE input: Quantized pitch in selectable scales (updated by trigger)
● FREE input: Continuous, non-quantized pitch modulation
● User-defined scales configurable via web app
● Change quantizer scale with BANK+PITCH MOD
● Adjust root note with BANK+SAMPLE MOD
● Fine-tune with BANK+LFO MOD
● Change octave and preview with BANK+PITCH

Sample
● Select from 8 samples with SAMPLE knob
● Press SHIFT button to trigger selected sample
● Trigger sample playback via TRIGGER input
● SAMPLE MOD input features attenuation and two modes
● PLAY: Directly trigger sample with CV modulation
● CUE: Select sample with CV, playback waits for trigger input
● BANK input (with attenuation) switches sample banks using CV

Envelope
● LENGTH knob: Turn right to adjust decay, turn left to reverse sample and add attack
● Sample is not retriggered during attack
● LENGTH MOD input (with attenuator)
● LENGTH MOD updates only upon trigger
● Patchable ENV output for envelope

Effects / LFO / Pattern
● Stereo delay or chorus/flanger effect
● Resonant filter (switchable low-pass/high-pass)
● LFO: Triangle wave/pulse output, reset input, modulation with attenuator, sync or free-run mode
● Tempo generator: Tap tempo, divider, external clock input
● Pattern Generator: Tempo sync compatible, GATE/CV output, patch programmable
● GATE Generator: User-configurable rhythm patterns via web app

Input/Output
● Stereo DC-coupled input (Euro Rack level), gain adjustment (max +6dB), -10V to +10V compatible
● Input signal can be mixed at output or routed through internal effects
● DC-coupled stereo output (Euro Rack level, -5V to +5V)
● Stereo headphone output (drives up to 250Ω)
● Analog SYNC input/output

MIDI / USB
● TRS MIDI input (supports clock, notes, CC, pitch bend)
● USB-C port (rear): For firmware updates, USB MIDI I/O, sample uploads

Technical Specifications:
● 16HP
● 10-pin power connector with PTC fuse and diode protection
● Depth: 24mm

Current Consumption:
● +12V: Max 60mA (without headphones) / Max 90mA (with headphones at max)
● -12V: Max 20mA

Inputs:
● FREE IN / NOTE IN: -0.2V to 7V
● CLK IN, RESET IN, C IN, G IN: 0V to 5V
● LFO MOD, BANK IN, SAMPLE IN, LENGTH IN, LFO RESET, TRIG IN: -5V to +5V
●L/R IN: -10V to +10V

Output:
●CLK OUT, ENV OUT, CV OUT, LFO TRI OUT, LFO PULSE OUT: 0V to +5V
●L/R OUT: -5V to +5V
●Headphone Output: 2Vpp (Line Level Compatible)
