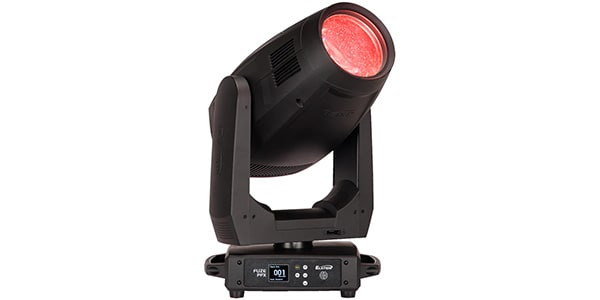

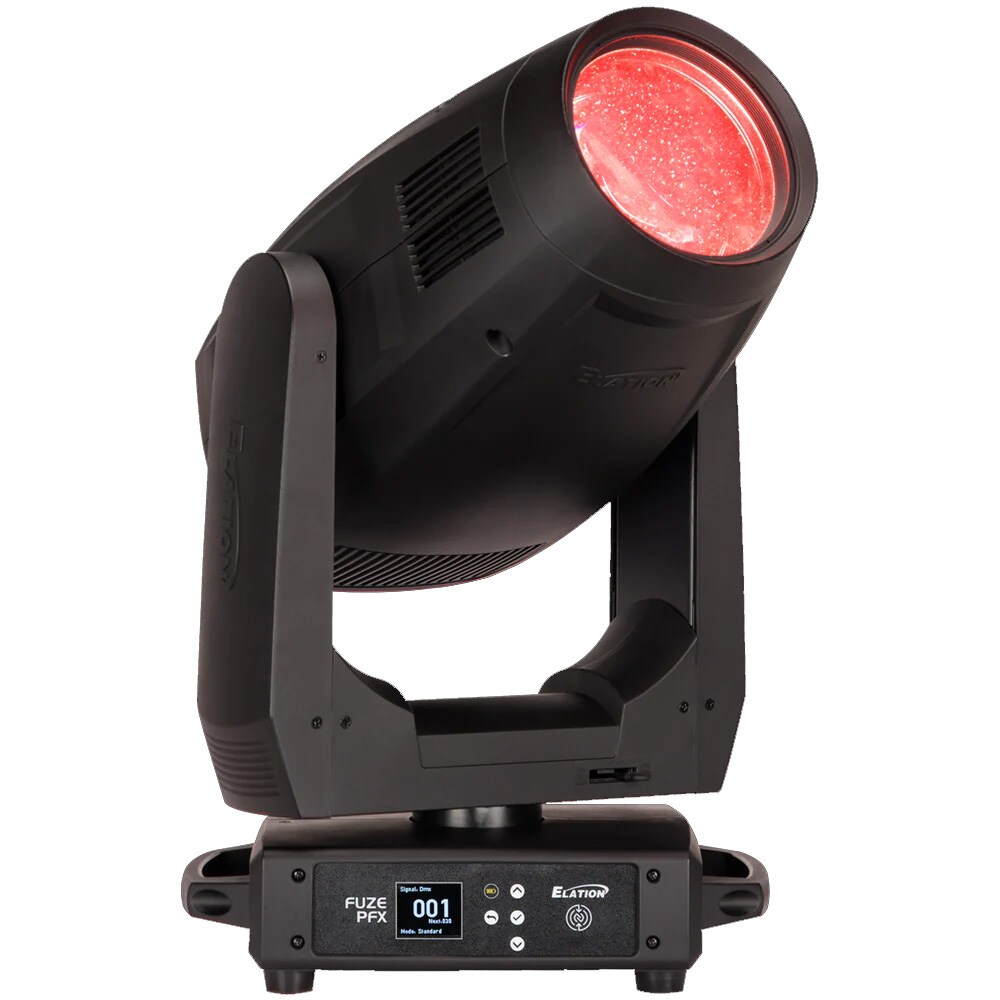

ELATION / FUZE PFX

The FUZE PFX™ is a compact yet high‑output multi‑purpose LED framing fixture. Its 400W white LED engine delivers over 15,000 lumens, enabling a wide range of effects from tight beams and precise framing to broad washes. With its highly efficient optical design, it offers exceptional flexibility and power, making it ideal for stages, events, and installation applications.

■ SOURCE
- 400W 6,600K Bright White LED Engine
- 20,000 Hour Average LED Life*
* Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

■ PHOTOMETRIC DATA
- 15000 Total Lumen Output
- CRI 72 (Filter CRI 80, CRI 90)
- Zoom Range 3° - 53°
- Beam Angle -
- Field Angle -

■ EFFECTS
- Motorized Zoom
- 4 Rotating Full Blackout Framing Blades
- +/- 60° Framing Index
- 2 Variable Frost Filters (Light and Wash)
- Dual Independent Prisms (6 Facet linear & 6 Facet round)
- Motorized Iris
- Variable 16-bit Dimming Curves
- High Speed Electronic Shutter and Strobe
- Pan Angle: 540°
- Tilt Angle: 270°

■ COLOR
- CMY Color Mixing
- Linear CTO Color Correction
- 7 Dichroic Colors including UV Filter
- High CRI Filter 80+90

■ GOBOS
- 7 Rotating / Indexing Interchangeable Glass Gobos
- 11 Static Metal Gobos

■ CONTROL / CONNECTIONS
- DMX Channels
- 16-bit Pan, Tilt, and Dimming Control
- DMX Adjustable LED Frequency
- RDM (Remote Device Management)
- 4 Button Touch Control Panel
- Full Color 180° Reversible LCD Menu Display
- Locking 5pin XLR Connector In/Out
- IP65 Locking Power Connector In/Out

■ SIZE / WEIGHT
- Length: 14.3” (362mm)
- Width: 9.2" (233mm)
- Vertical Height: 25.14" (637mm)
- Weight: 50 lbs. (22.7kg)

■ ELECTRICAL / THERMAL
- AC 100-240V - 50/60Hz
- 600W Max Power Consumption
- 14°F to 113°F (-10°C to 45°C)
- BTU/hr (+/- 10%) 2047

■ APPROVALS / RATINGS
- CE | cETLus | FCC | UKCA | IP20
