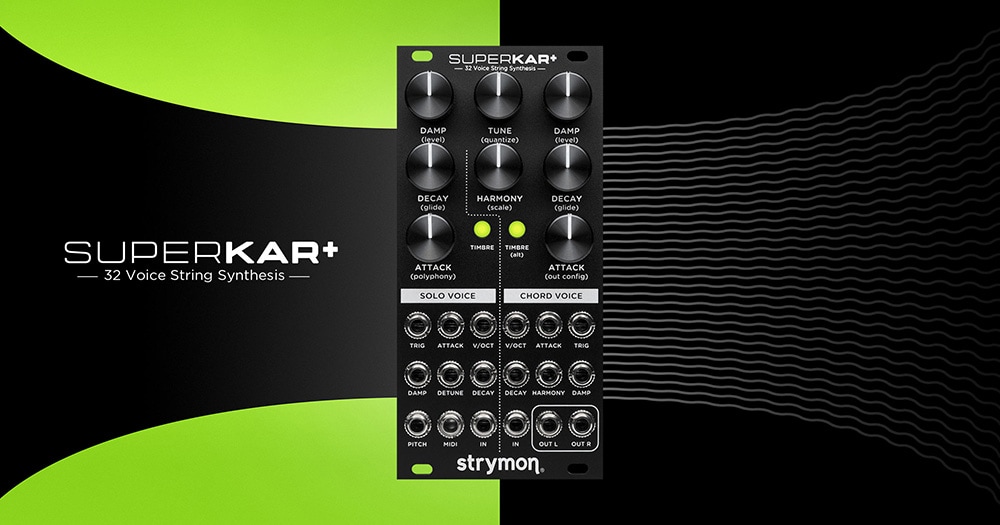

STRYMON / SUPERKAR+

SuperKar+ is a Euro Rack voice module featuring Karplus-Strong synthesis. It reproduces a wide range of sounds, from plucked and bowed strings, struck and blown pipes and tubes, and percussive textures, to legato melodies and smart harmonizing chords. It delivers the most intuitive and compelling sounds of Karplus-Strong synthesis.

Karplus-Strong is a type of delay feedback synthesizer where every tone and texture is in a state of constant flux. SuperKar+ is an instrument with a highly engaging response, capable of generating infinite subtle yet dramatic tonal shifts through slight variations in attack/decay time and damping, while randomly detuning each note to produce authentic-sounding tones.

Karplus-Strong-based voice module
Two independent voice channels ? Solo voice and chord voice
Each voice is polyphonic up to 16 notes
Solo voice plays sustainable single notes simultaneously
Chord voice plays chord structures based on the root of the received V/Oct (Volt per Octave) CV
Chord voice supports fixed pitches and utilizes smart harmony
Selectable wide/narrow stereo, split voice, or mono output
Control the solo voice via MIDI input to achieve velocity-sensitive 16-part polyphonic sound (When using MIDI, disconnect the solo voice TRIG and solo voice V/Oct CV)
Solo voice tuning remains stable over 6 octaves via CV and 8 octaves via MIDI; chord voice tuning remains stable up to 5 octaves.

Product Concept

Surprisingly powerful, captivatingly simple and intuitive.
With its instantly understandable interface, a single SuperKar+ module can generate music beyond your imagination. Through CV connections, harness unimaginable musical and tonal variations to create richly resonant arrangements. Packing enough power to be the center of infinite sonic exploration, SuperKar+ condenses all these elements into a compact 12HP form factor.

Self-Contained Voice Module
Thanks to the characteristics of Karplus-Strong synthesis, SuperKar+ requires no dedicated VCA or amp envelope. Each voice—solo and chord—features independent attack, decay, and damping. Furthermore, this module includes an internal mixer with independent output levels for both voices, plus multiple stereo and mono audio output modes.

Two instruments in one: independent melody and chord
SuperKar+ is divided into two parts—a solo voice and a chord voice—meaning two distinct voices that can be played simultaneously or independently as needed. Both voices can be individually triggered and pitch-adjusted via CV (Control Voltage), while the solo voice can be polyphonically controlled via MIDI.

Both voices can select independent tones, each with its own level control, and can be routed to separate audio outputs as needed.

Product Specifications
Inputs/Outputs, Switches

Stereo Inputs/Outputs
Extensive Parameter CV Controls
USB Jack for Firmware Updates (Rear Panel)
Audio Quality

520MHz ARM Superscalar Processor
32-bit Floating Point Processing
Input-to-Output Signal-to-Noise Ratio: 108 dB (A-Weighted)
DAC S/N ratio: 111 dB (A-weighted)
Power Supply & Other

+12V rail: 120mA
-12V rail: 120mA
+5V rail: 0mA
Rack Width: 12hp
Rack Depth: 38mm
Designed and built in the USA
