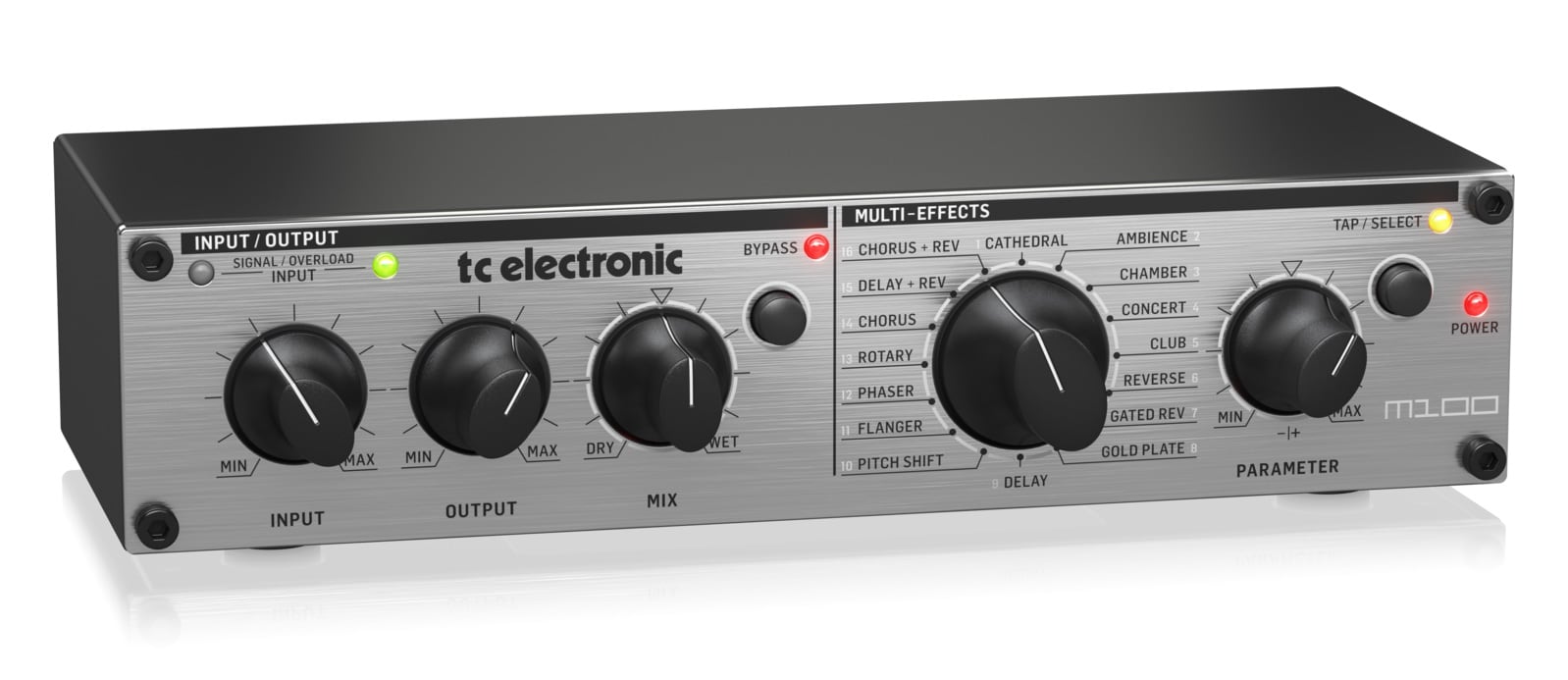

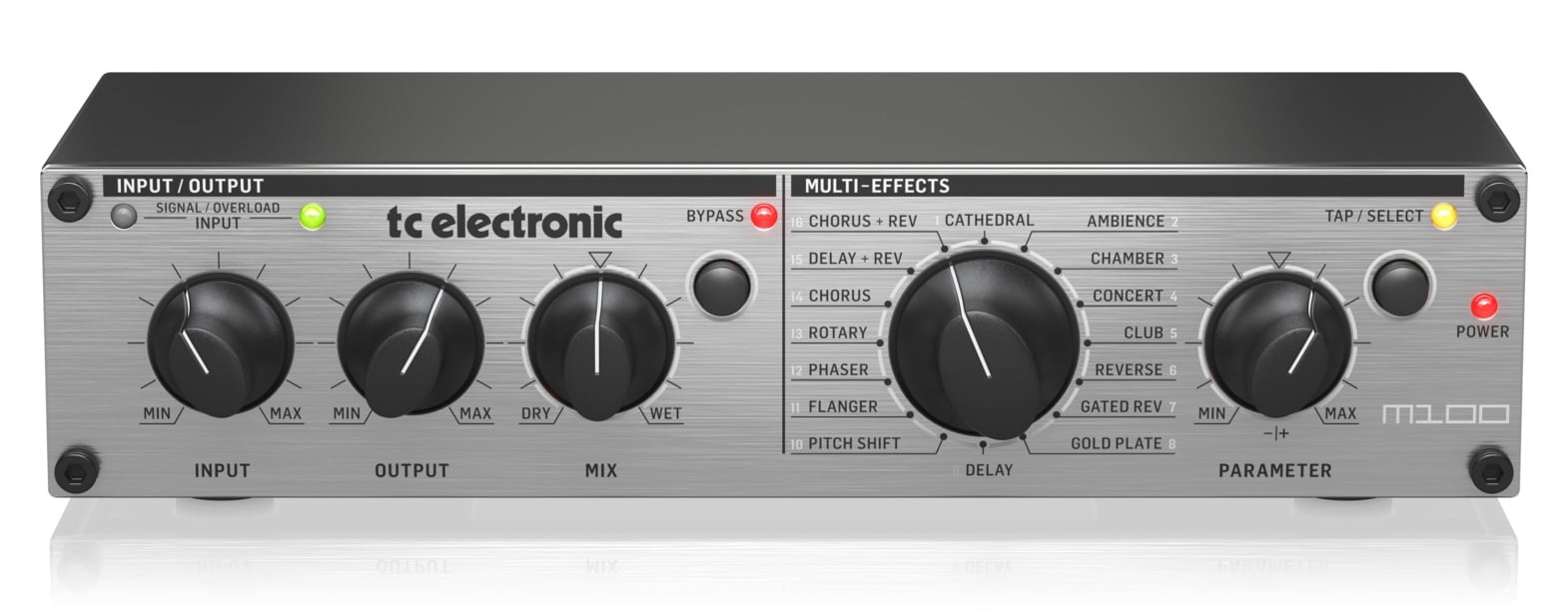

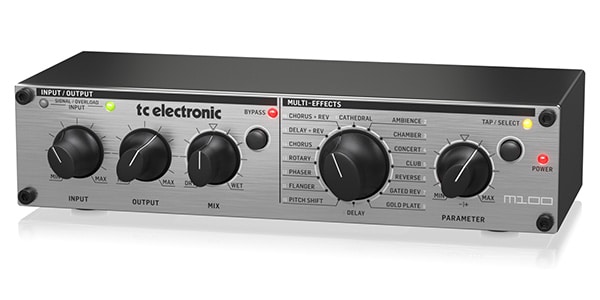

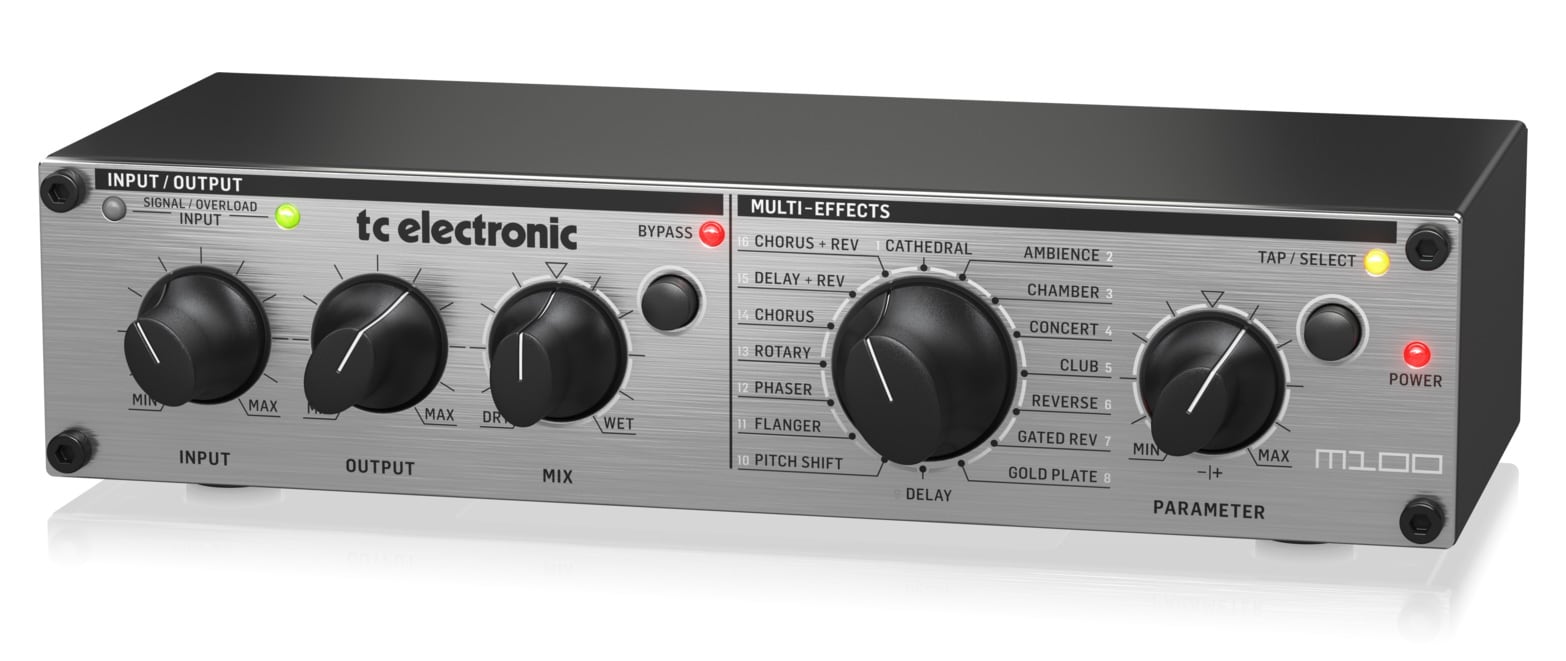

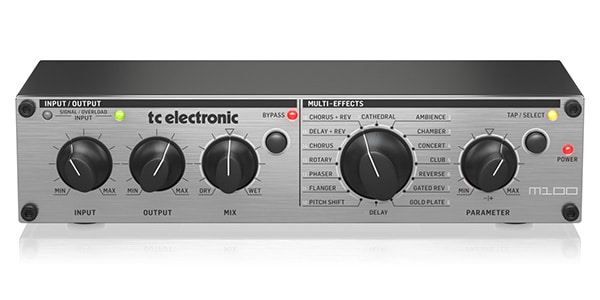

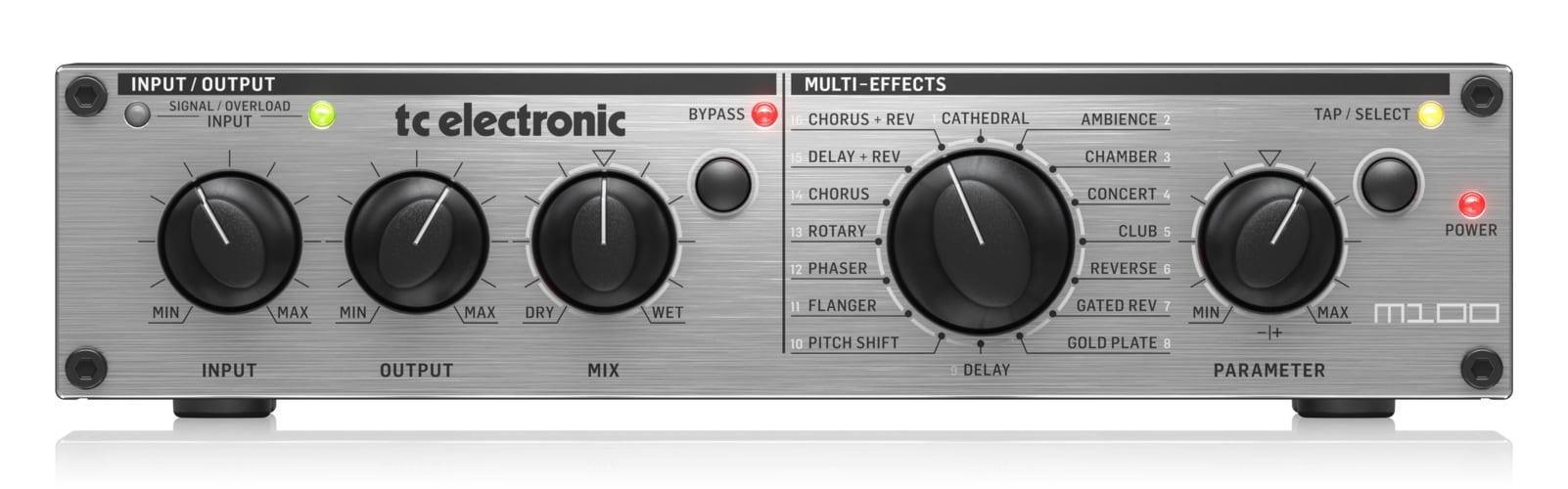

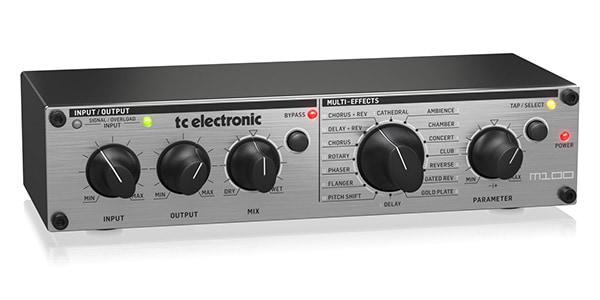

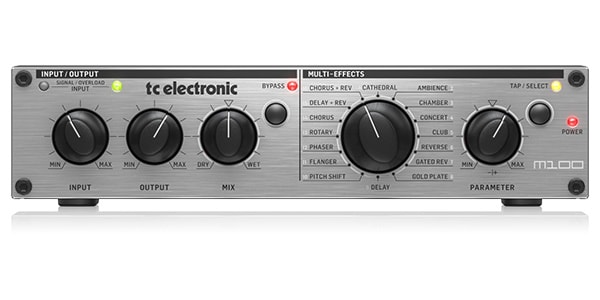

TC ELECTRONIC / M100

The TC ELECTRONIC/M100 is a compact yet powerful multi-effects processor that brings studio-quality sound to the palm of your hand.

With 16 premium reverb and effects, intuitive controls, and stereo inputs and outputs, the M100 easily adds depth, color, and a professional finish to any performance or recording environment.

From rich hall reverb and shimmering plate reverb to deep chorus and delay, the M100 delivers legendary TC Electronic sounds in a versatile unit that fits neatly into rack or desktop environments.

■Features


? Stereo multi-effects processor for studio and stage use


? Features 16 award-winning TC effects: Reverb, Delay, Chorus, Flanger, Phaser, Rotary Speaker, Pitch Shifter, and Multi-Effects


? Wide range of parameter control with versatile editing and tap/select functions


? Stereo input level control with LED level indicator


? Perfect level adjustment with dedicated mix balance and output controls


? High-resolution 24-bit AD/DA converters



Easy effect ON/OFF control via additional footswitch connector



MIDI control for CC and firmware updates


■SPECS

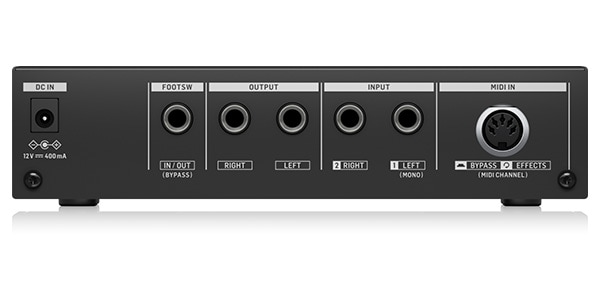

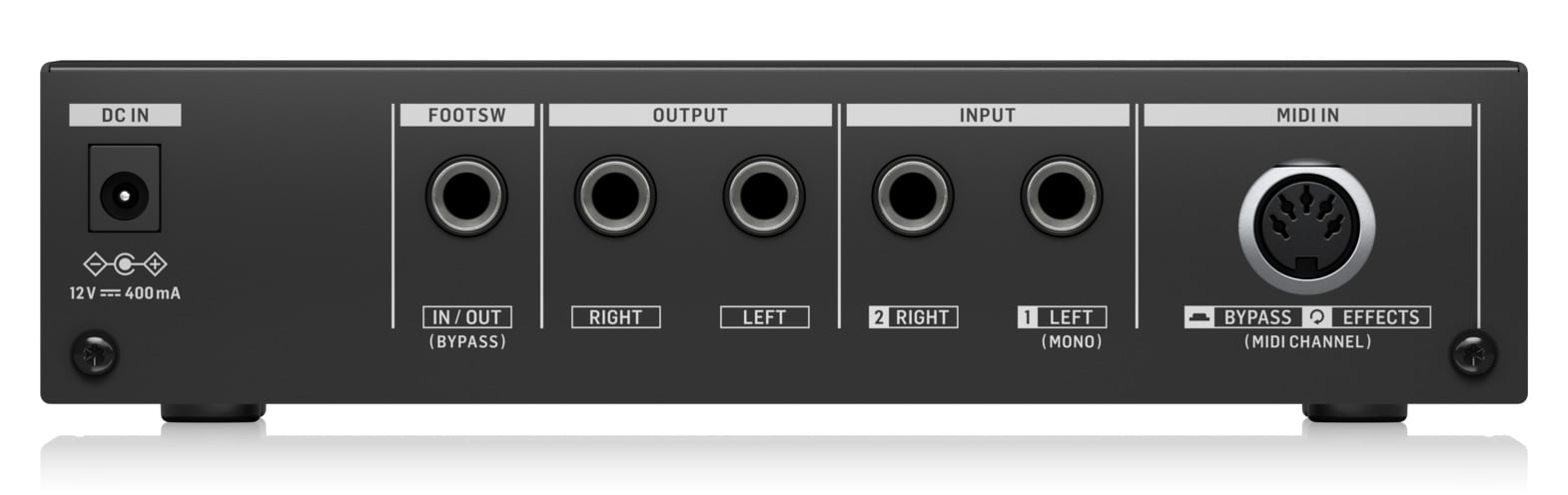

Input/Output


? Input Type: 1/4-inch TS connector, unbalanced


? Input Impedance: Approx. 7.5 kΩ


? Output Type: 1/4-inch TRS connector, impedance balanced


? Output Impedance: Approx. 220 Ω


? Maximum Output Level: +10 dBu


* Footswitch Connector: 1/4-inch TS connector.

Digital Processing

* Converter: 24-bit ΔΣ, 128x oversampling.

* Sampling Rate: 48 kHz.

System Specifications

* Frequency Response: 10 Hz to 22 kHz, -3 dB.

* Dynamic Range: 96 dB, 10 Hz to 22 kHz.

* Distortion: 0.01% typ. @ 0 dBFS.

* S/N Ratio: 10 Hz to 22 kHz > 86 dB @ 0 dBu (A-weighted).

Power Supply and Chassis

* Power Connection: External power supply, 12 VDC, 400 mA

* Power Consumption: Approx. 3.5 W

* Dimensions (Height x Width x Depth): 46 x 191 x 99 mm

* Weight: 0.6 kg
