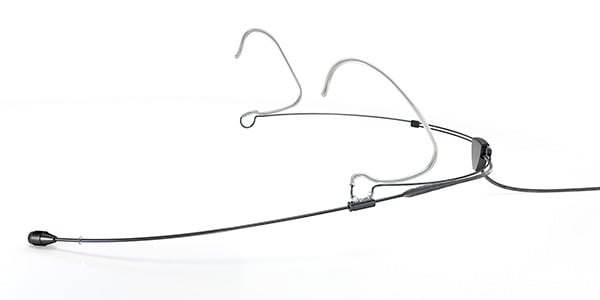

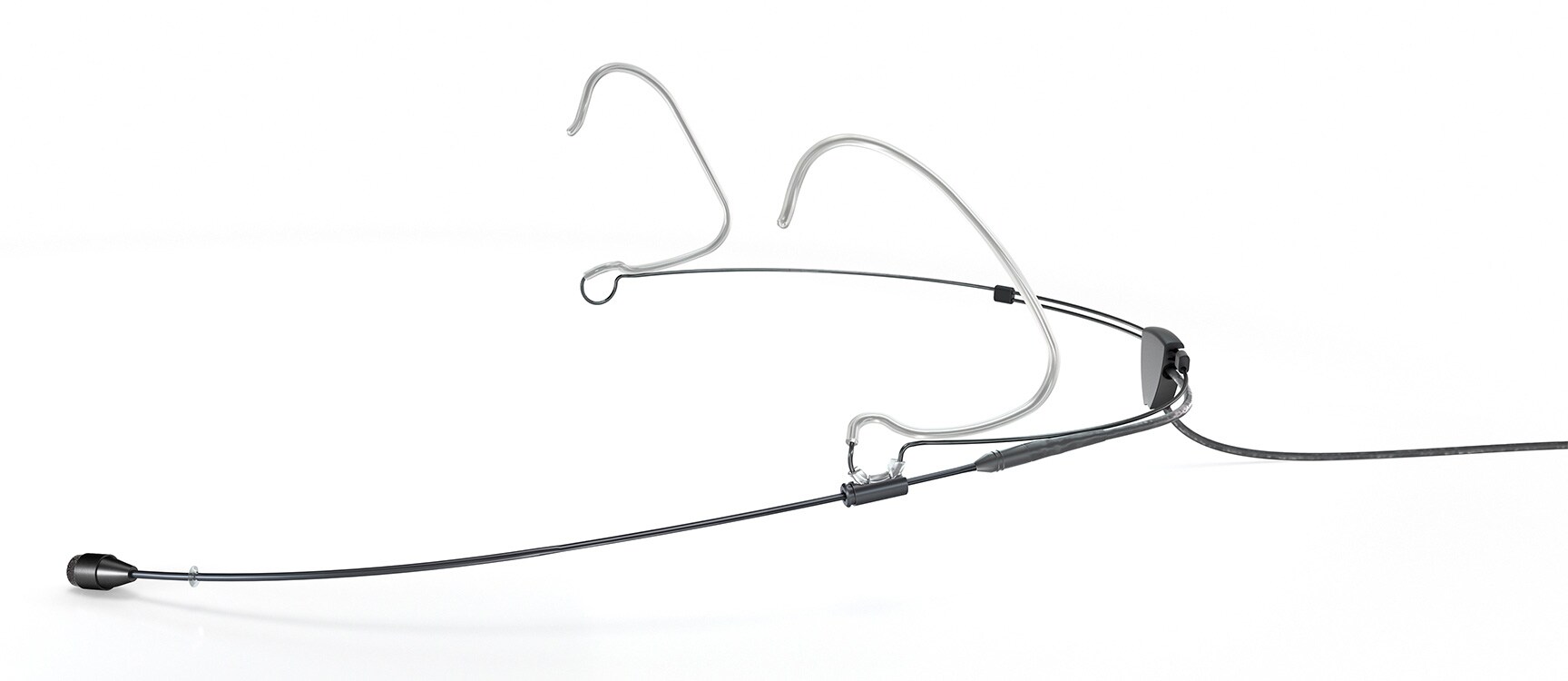

DPA / 4466-OP-R-B03

Equipped with CORE+ technology to minimize distortion. The high-performance frame provides stability, flexibility, and durability, preventing microphone shift and boom rotation even during intense performances, maintaining stability even after extended use. The boom position can be adjusted up and down using the sliding lock.

◆High durability for even the toughest environments
- The microphone body is water-repellent nano-coated, and the amplifier is hermetically sealed, achieving high durability and meeting IP58 standards*.

Dustproof Level 5: Harmful dust particles cannot enter the microphone.

Waterproof Level 8: Water will not leak into the microphone even when continuously submerged in water.
*Testing was conducted by DPA Microphones at Force Technology, a third-party testing organization in Denmark.
- The microphone capsule and grid are made of metal with a PVD coating that is impact-resistant and highly abrasion-resistant.

◆Excellent maintainability
- The microphone capsule can be cleaned with pure water.
- The boom, cable, and headband are all detachable.

◆Wireless compatibility
- Using a separately sold wireless adapter, the microphone can also be used with various wireless microphones. Direct-mount adapters for major wireless systems such as Shure and Sennheiser are also available.

[Product Specifications]
■Type: Headset Microphone
■Polar Pattern: Omnidirectional
■Cartridge: Prepolarized Condenser
■Frequency Range (±2dB): 40 Hz - 20 kHz
・Soft Boost Grid: 3dB boost @ 8-20kHz
・High Boost Grid: 10dB boost @ 12kHz
■Sensitivity (±3dB @ 1kHz): -44dB re. 1V/Pa
■Equivalent Noise Level (A-weighted): 26dB(A) re. 20μPa
■Total Harmonic Distortion (THD 0.5%): 133dB SPL RMS, 136dB SPL Peak
■Total Harmonic Distortion (THD 1%): 136dB SPL RMS, 139dB Peak SPL
■Dynamic Range: 111dB
■Maximum SPL: 144dB
■Output Impedance: MicroLock: 30-40Ω, DAD9001: 100Ω
■Cable Length: Up to 300m (using DAD6001-BC)
■Power Supply: Wireless: 5V-10V, Wired (DAD9001): Phantom DC48V
■Color: Black
■Microphone Diameter: 5.4mm
■Cable Length: 1.3m (φ1.6mm)
■Temperature: -40°C to 45°C
■Relative Humidity: Up to 90%
■Output Connector: LEMO 3-Pin
■Accessories
・Windscreen x 3
・Makeup Cover x 1
・Carrying Pouch
