TOA / IR-500R

This is a receiver for infrared tuners that can receive six channels. It can be mounted on a wall or electrical box. It can also be mounted on a microphone stand using the separately sold microphone stand mounting bracket.

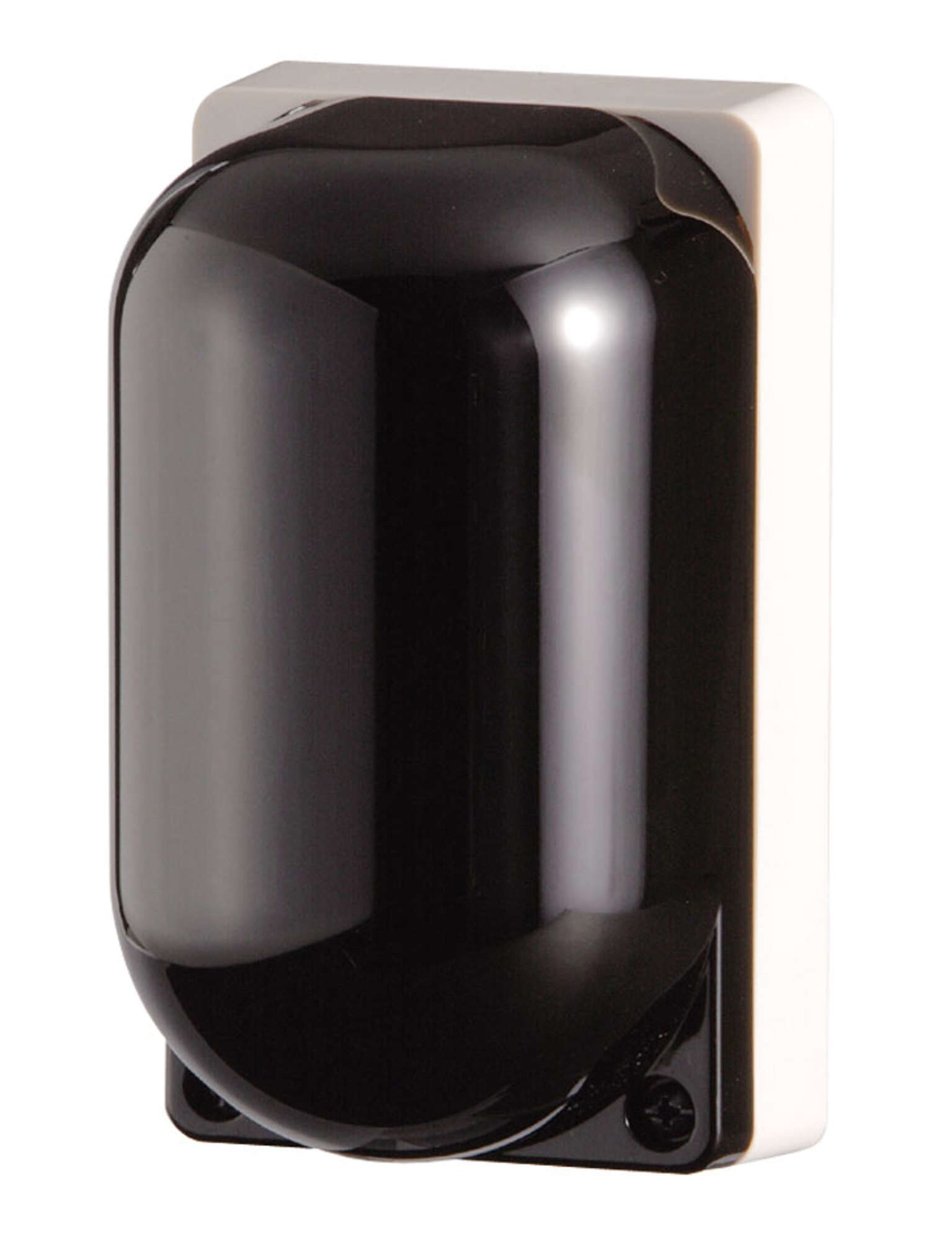

■ Infrared Receiver, Wall-Mounted
This receiver is specifically designed for infrared tuners and can receive six channels. It can be mounted on a wall or electrical box. It can also be mounted on a microphone stand using the separately sold microphone stand mounting bracket.

Power Supply: DC24V (supplied from infrared tuner)
Current Consumption: Max. 40mA
Wavelength: 870nm
Carrier Frequency
Channel A: 3.100MHz
Channel B: 3.350MHz
Channel 1: 4.100MHz
Channel 2: 4.725MHz
Channel 3: 5.225MHz
Channel 4: 5.600MHz
Receiving Angle: Vertical: 80° (can be tilted 30° downward), Horizontal: 80° (can be tilted 30° left and right)
Communication Area: Approximately 15m (in an unobstructed space)
Connection Terminal: 75Ω BNC Jack
Operating Temperature Range: 0° to 40°
Operating Humidity Range: 30%-85%RH (no condensation)
Finish: Filter: Polycarbonate, visible light cut filter
Base: ABS resin, off-white (approximate Munsell 5Y8.8/1.2N)
Dimensions: 70(W) x 120(H) x 72(D) mm
Weight: 220g (unit only)

*Optional: Microphone stand mounting bracket → IR-500MB
