ELATION / Proteus Atlas

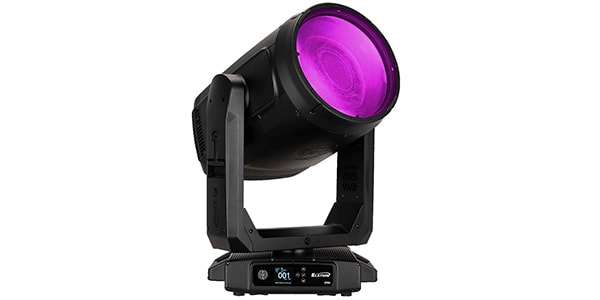

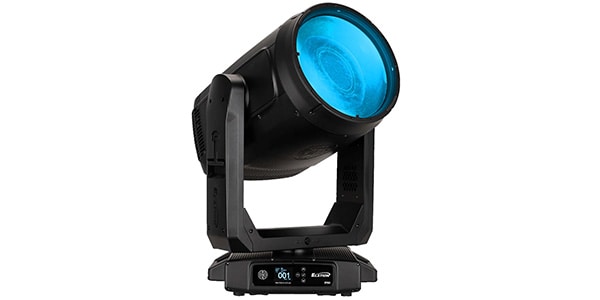

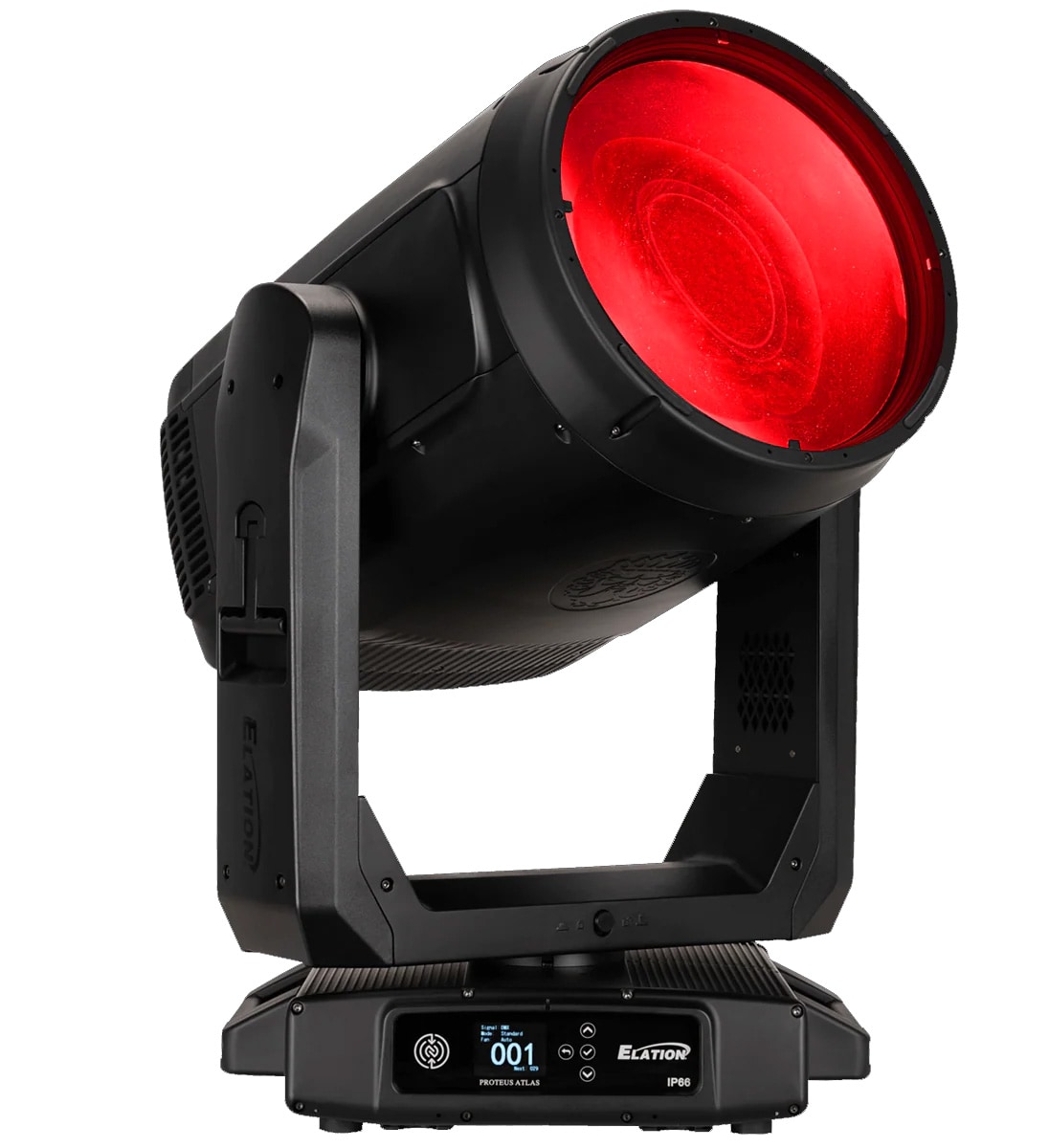

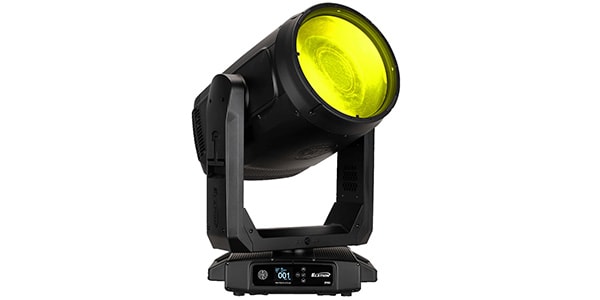

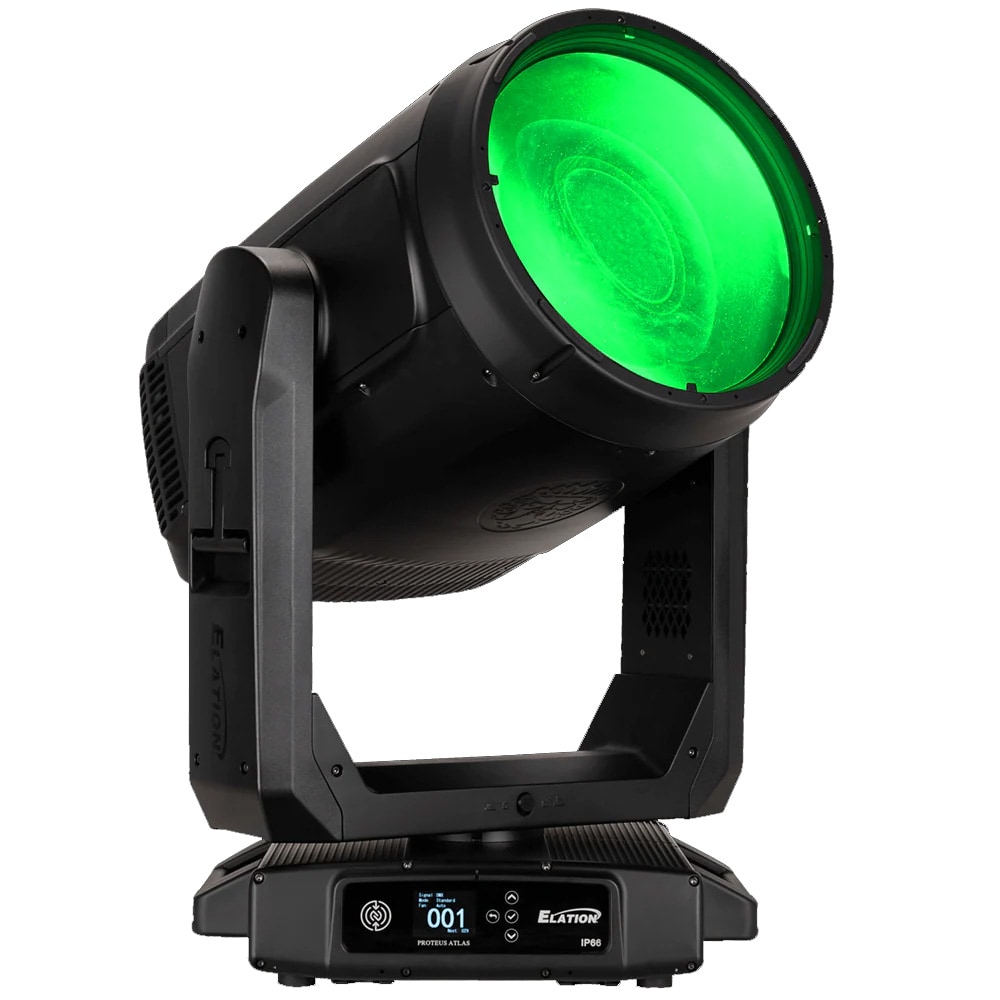

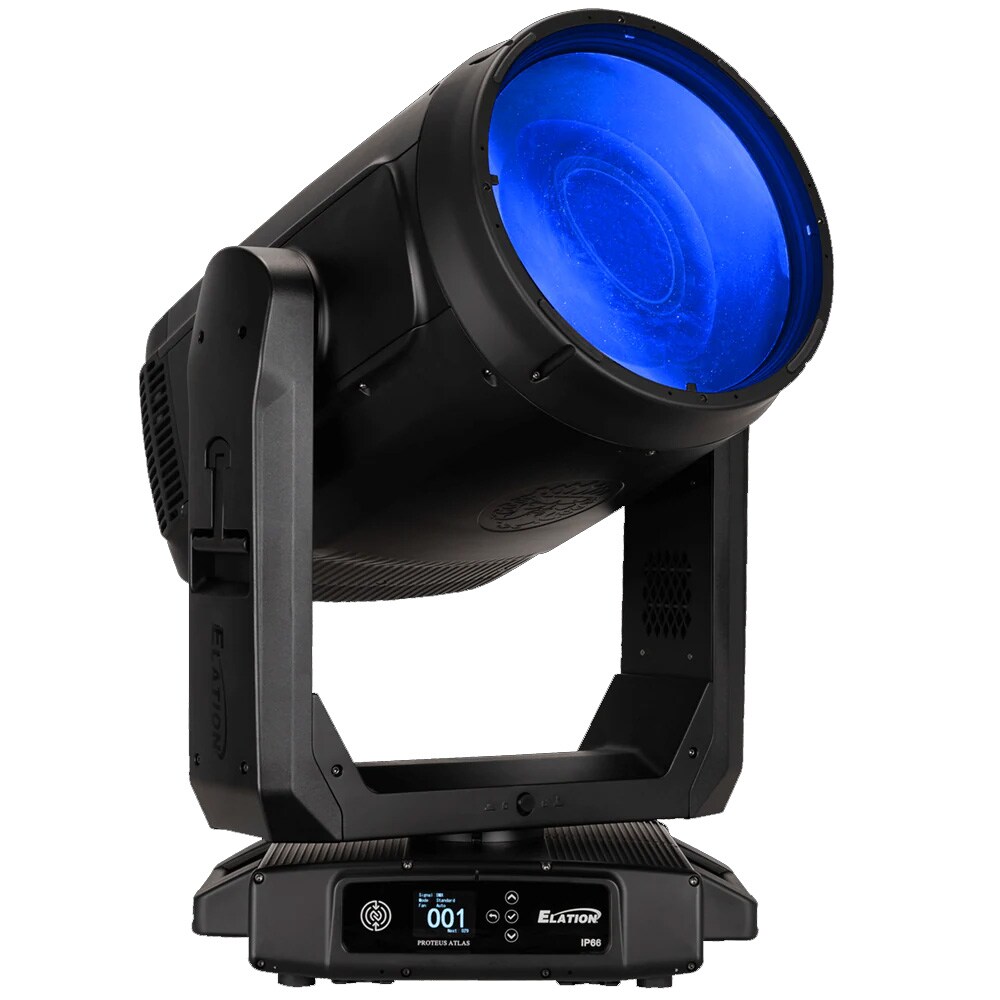

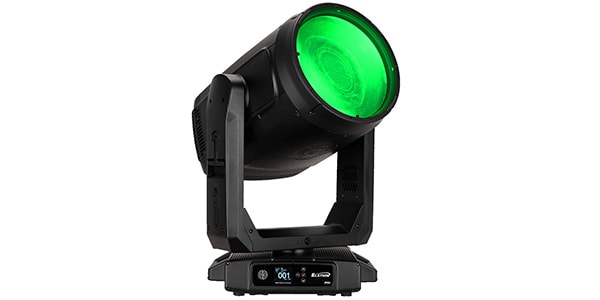

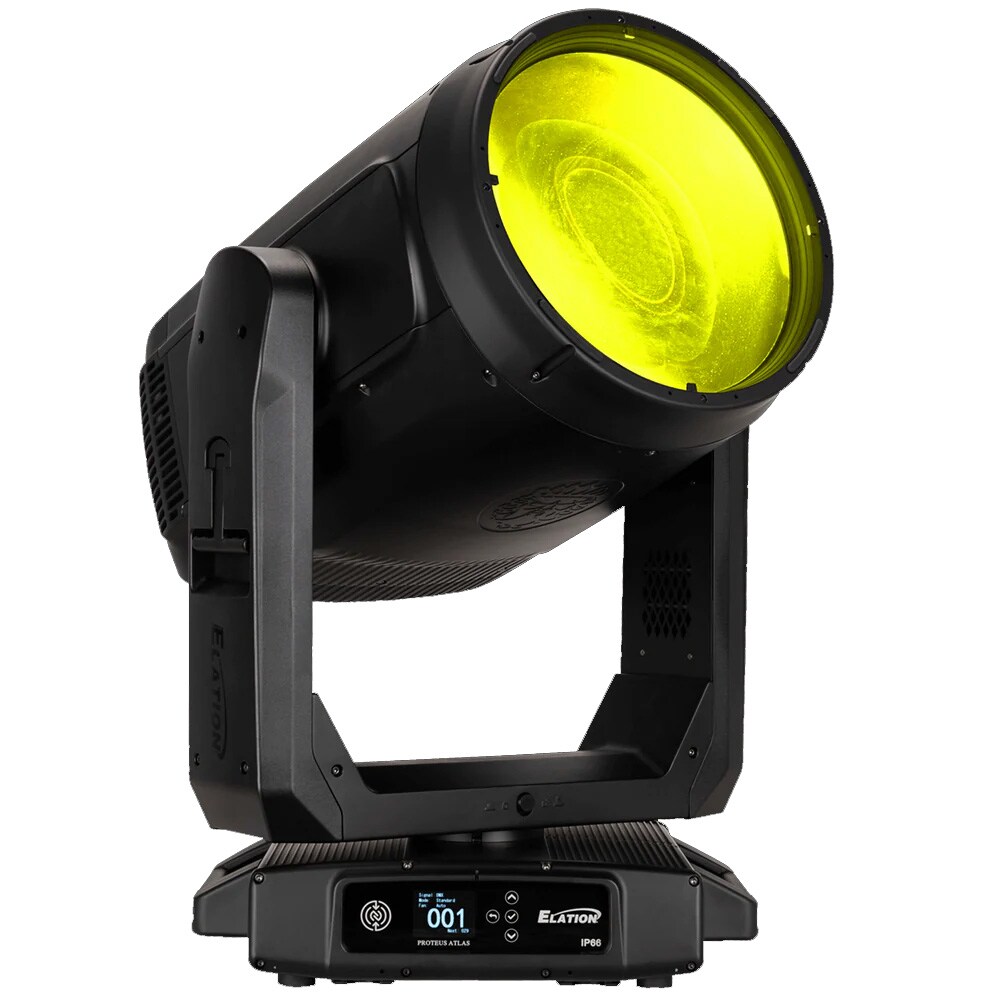

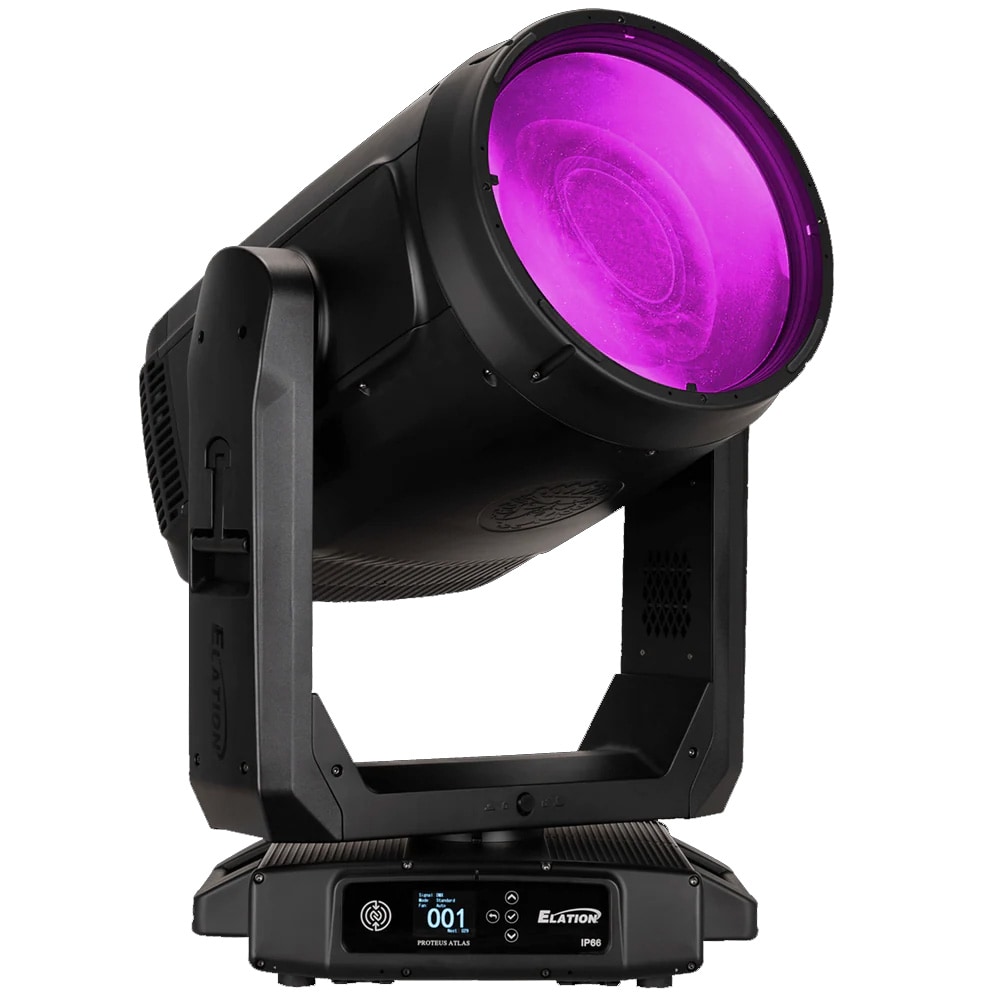

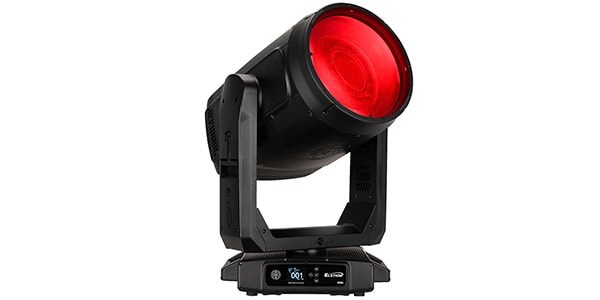

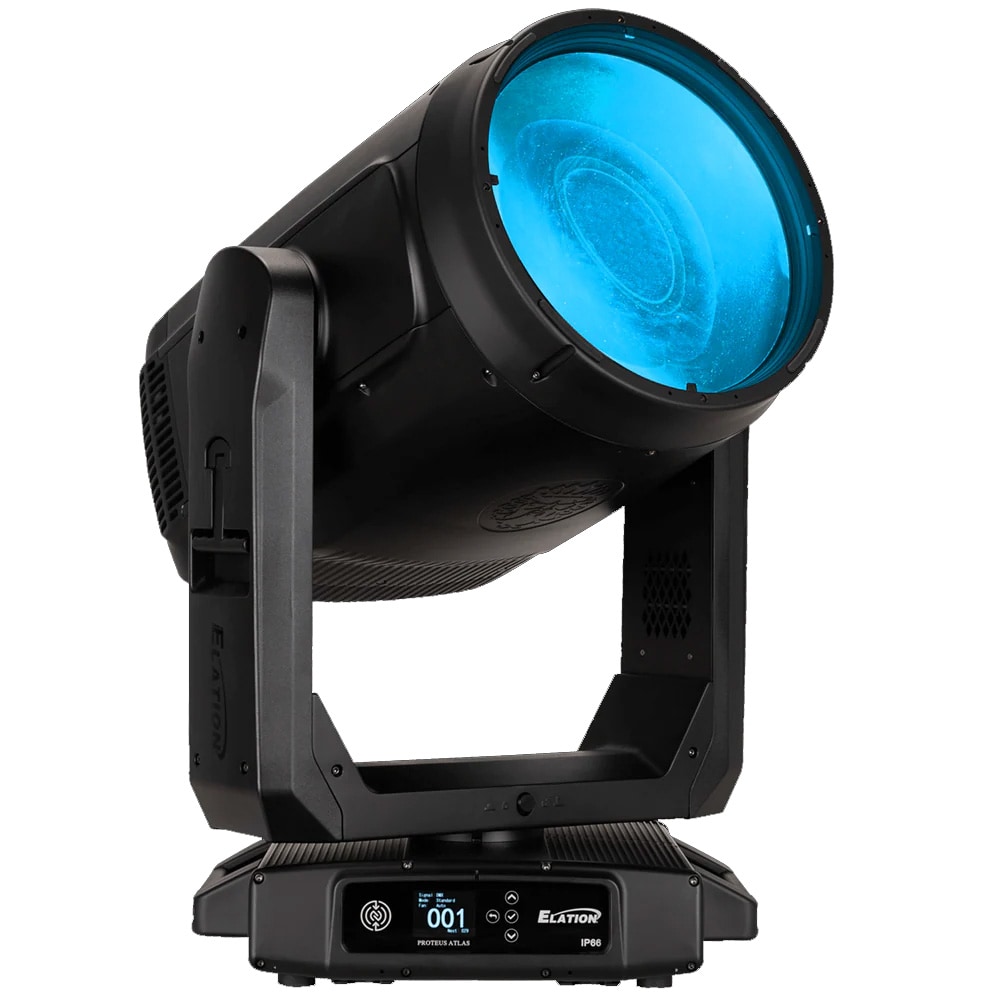

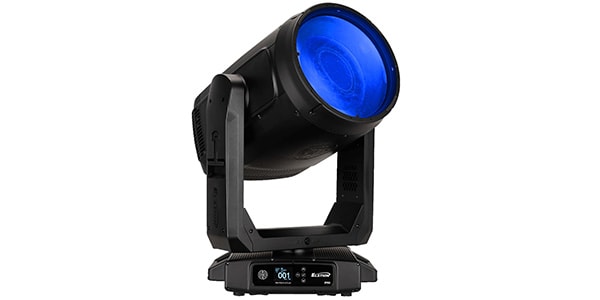

＜＜Aug 2025 New Product！＞＞ The PROTEUS ATLAS is an outdoor-compatible moving light. With its powerful beam and waterproof design, it delivers everything from vivid effects to soft atmospheres with ease.

■ Light Source
- 500W Laser Illuminated Lighting Instrument Engine (LILI)
- Color Temperature: 9000K, Color Rendering Index (CRI): 70
- Lamp Life: Approximately 12,000 hours

■ Photometry Data
- 1,000,000 lux (distance: 20 meters)
- 100,000 lux (distance: 100 meters)
- Beam Angle: 0.6°-8.5°

■ Effects
- Dual Frost (hot spot beam, wash effect)
- High-speed Zoom
- Focus Function
- 2x3-plane Prism (dual-plane arrangement)
- Digital Shutter & Strobe
- Pan Angle: 360°/540°
- Tilt Angle: 250°

■ Color
- Full CMY Color Mixing System
- 25-position color wheel

■ Gobos
- 2 gobo wheels
- 13 interchangeable metal gobos with rotation and indexing
- 26 static metal gobos

■ Control/Connection
- 2 DMX channel modes (26ch/36ch)
- Touch panel (6 buttons)
- Full-color 180° rotatable LCD menu display
- Supports DMX, RDM, Art-Net, and sACN protocols
- NFC compatible
- IP65 5-pin DMX input/output
- IP65 RJ45 Ethernet input/output
- IP65 locking power input

■ Size/Weight (approximate)
- Length: Approx. 370mm
- Width: Approx. 508mm
- Height: Approx. 800mm
- Weight: Approx. 56.3kg

■ Electrical/Thermal Specifications
- Power: AC 100, 50/60Hz
- Maximum power consumption: 670W
- Operating temperature range: -20°C to 45°C

■ Certifications/Protection rating
- CE | cETLus | UKCA | FCC | IP66
