ELATION / KL Par Compact

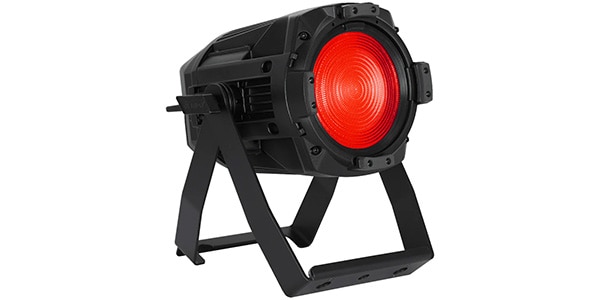

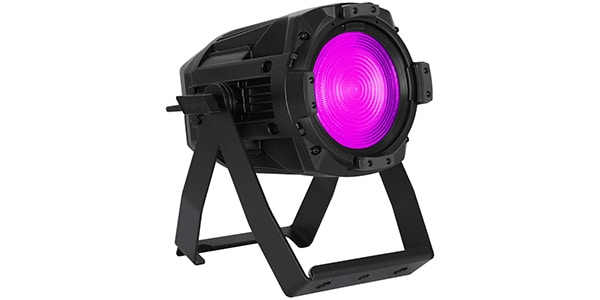

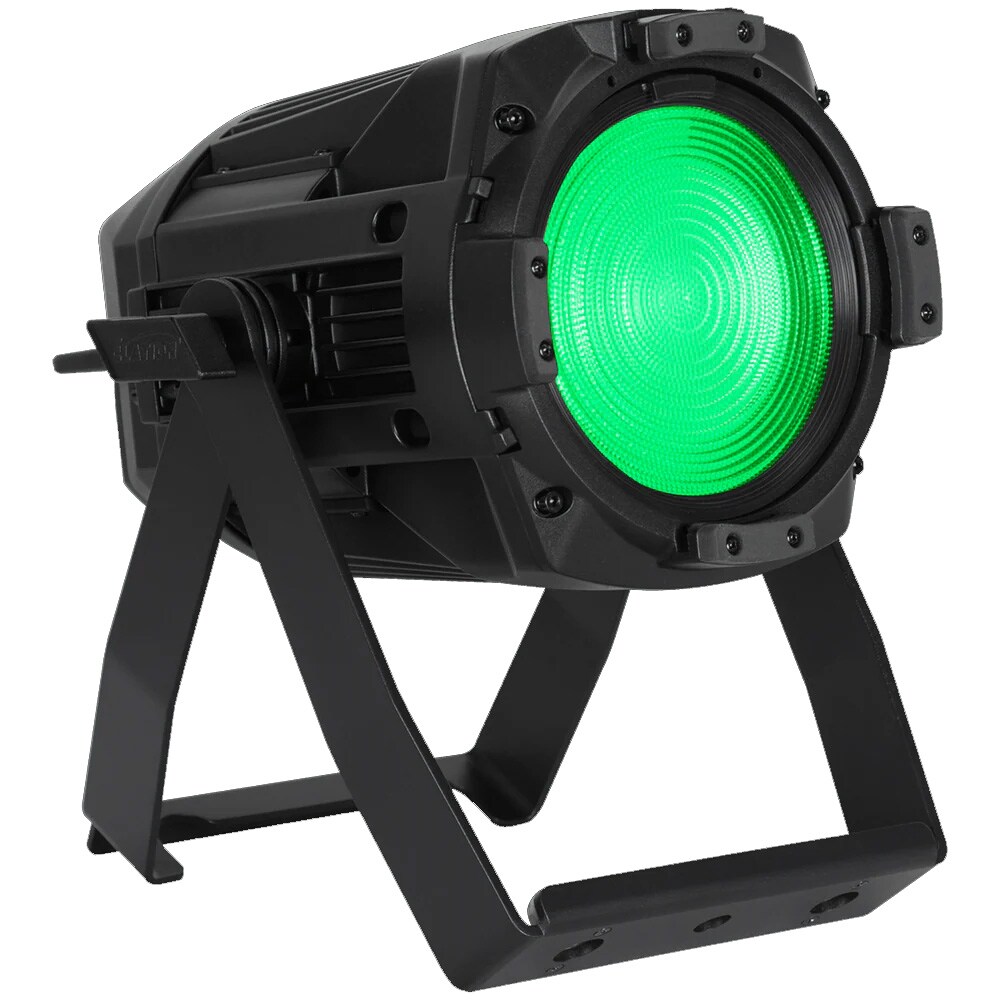

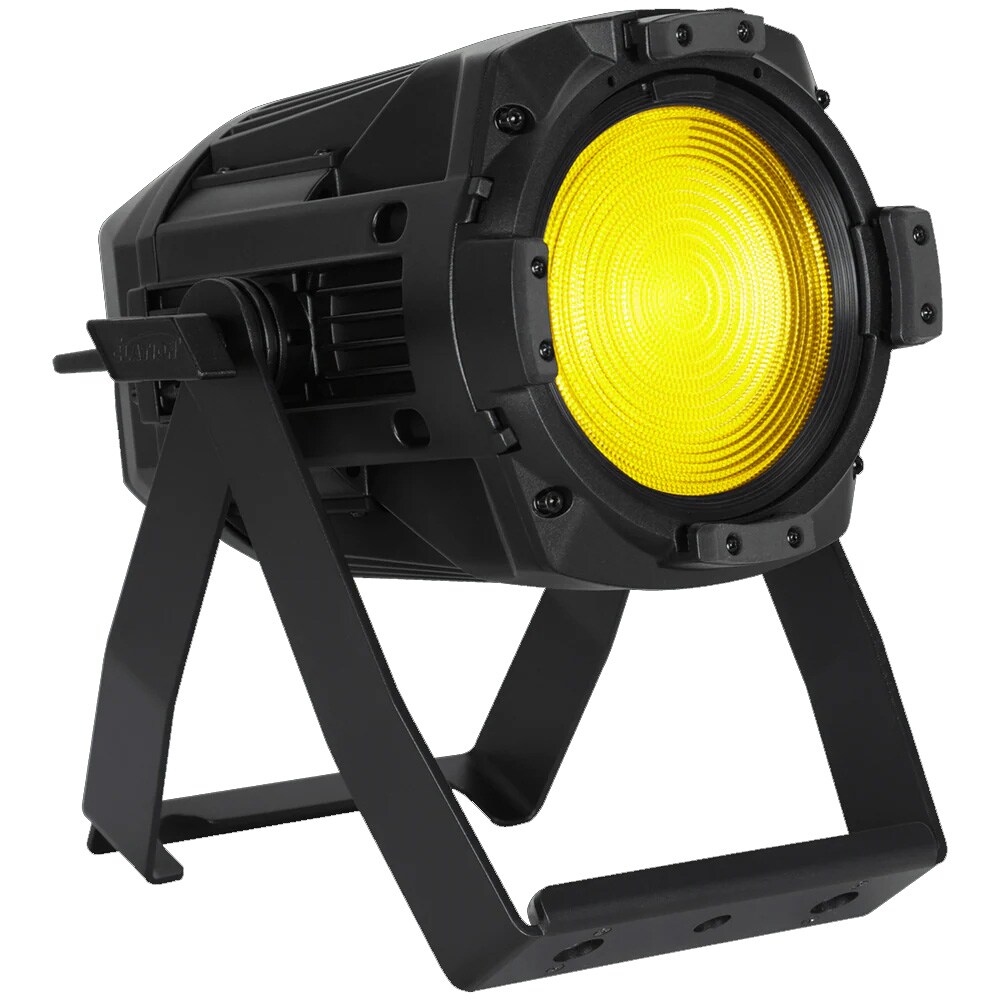

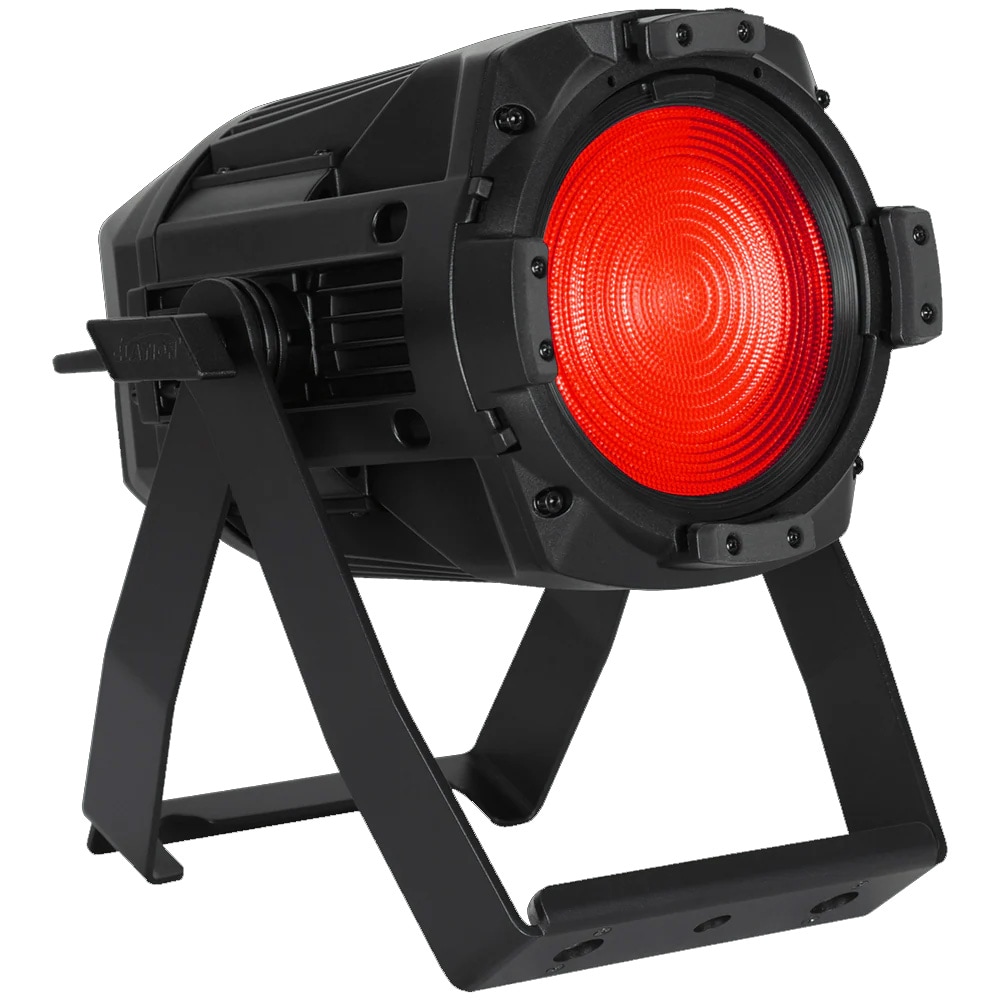

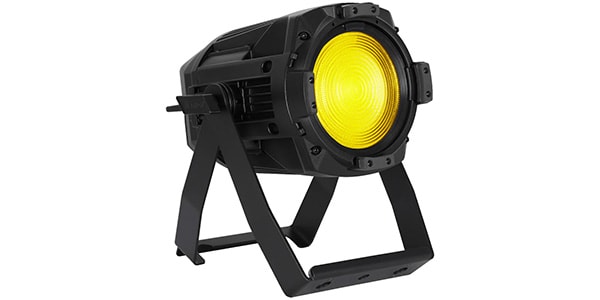

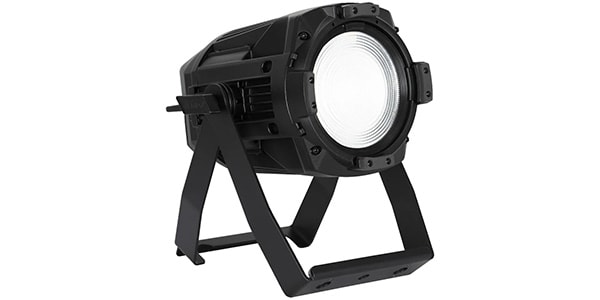

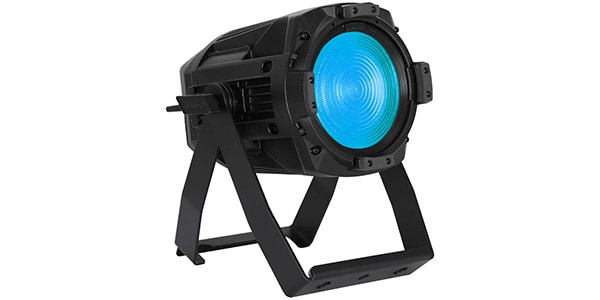

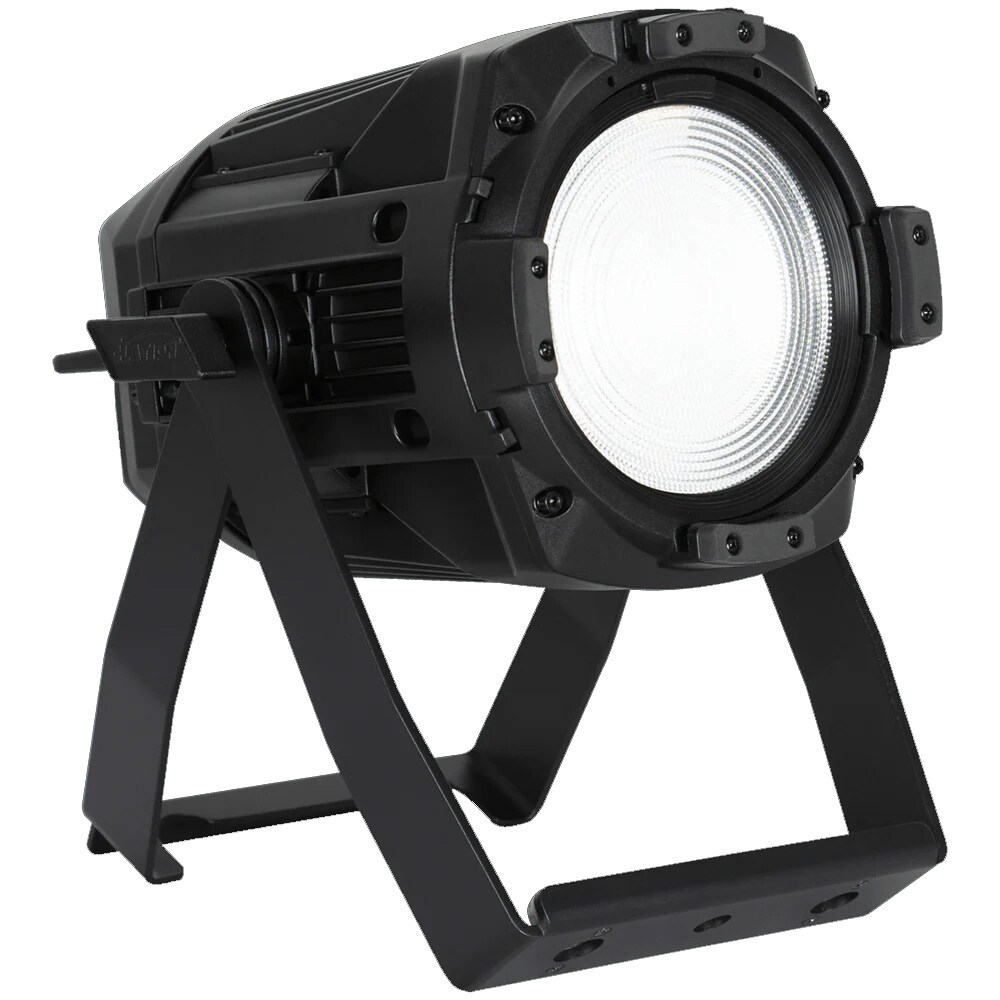

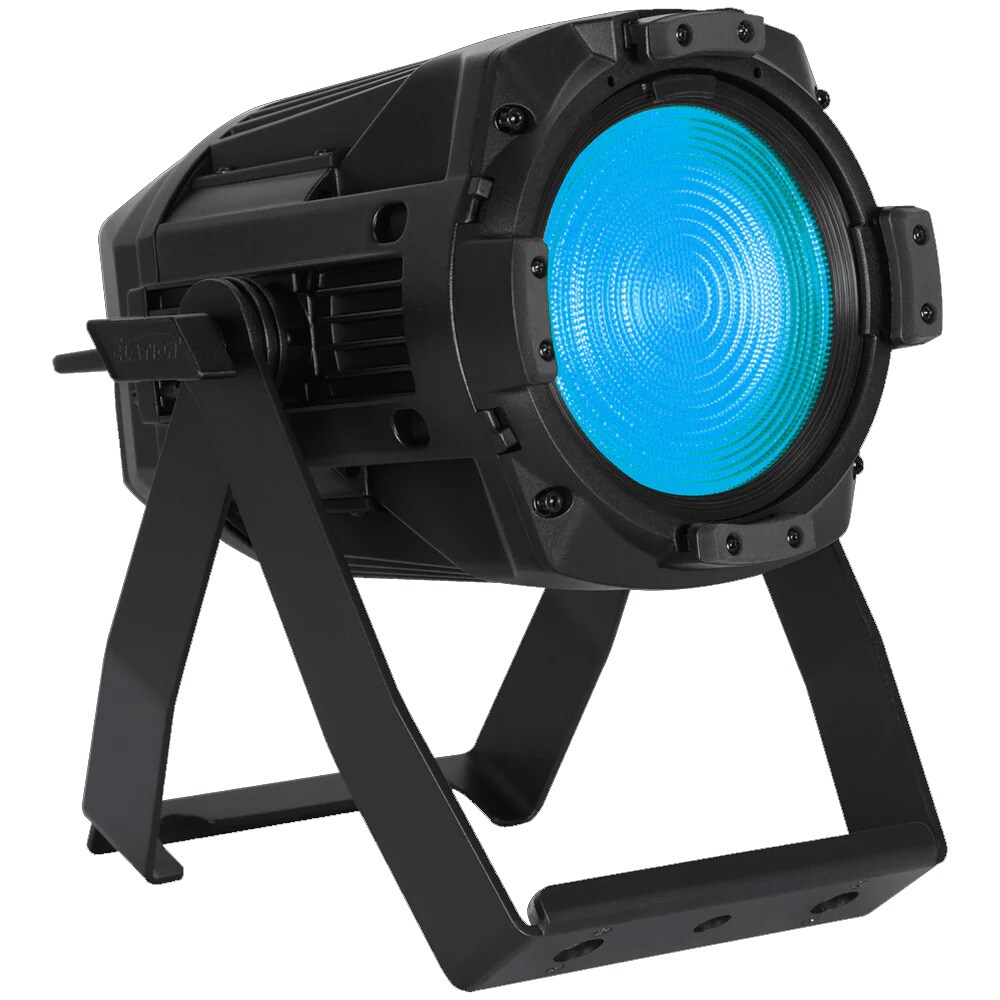

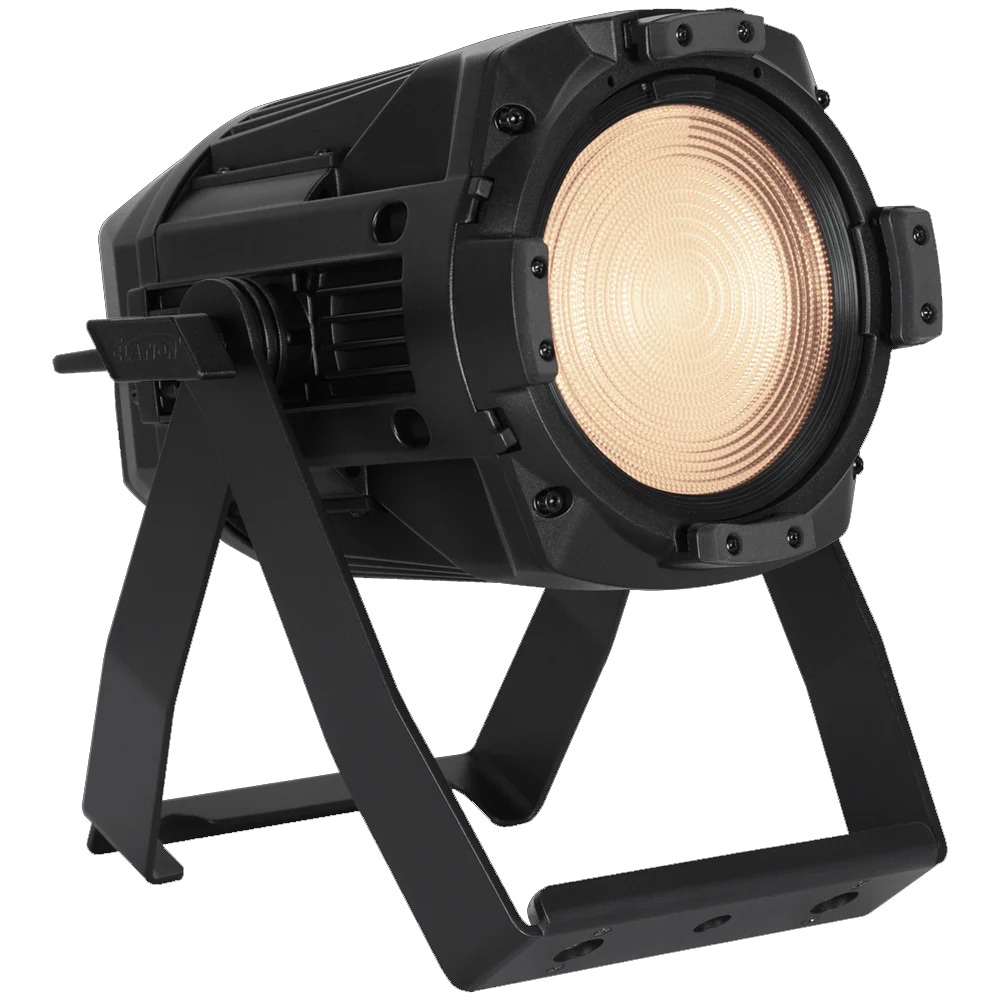

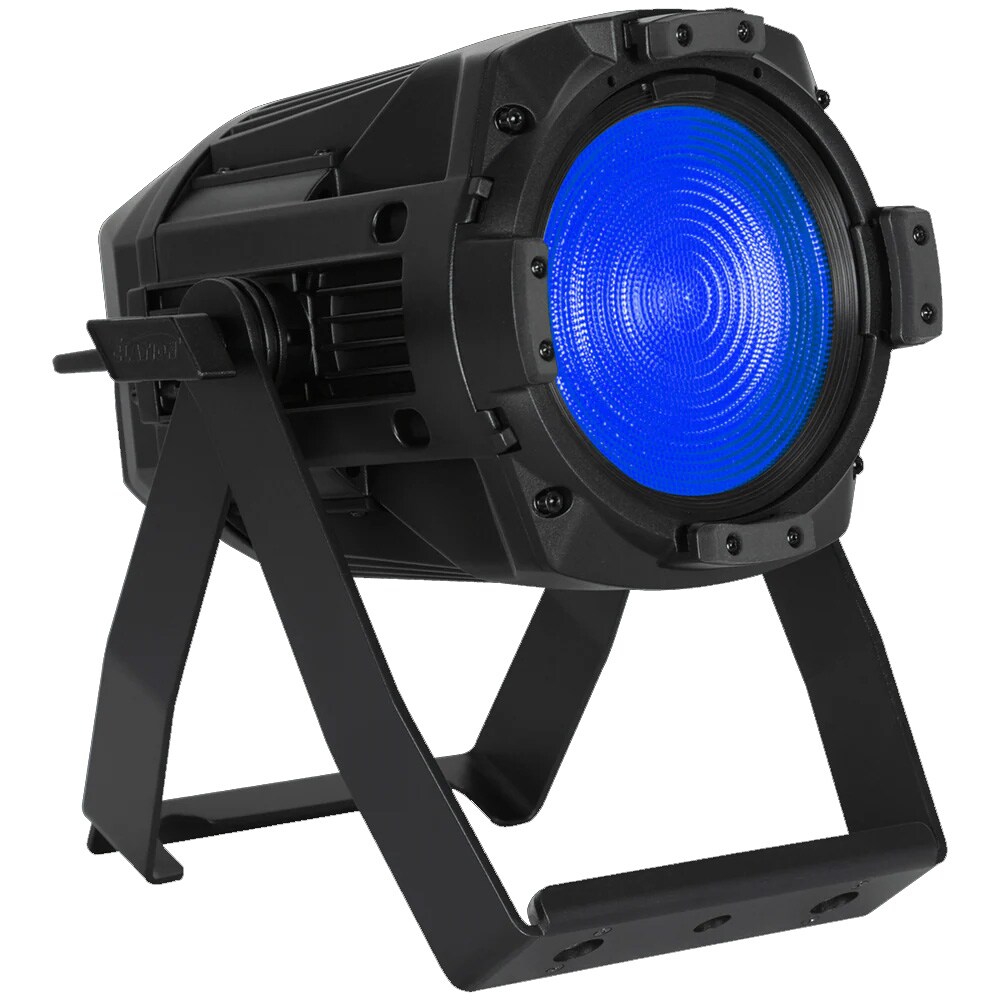

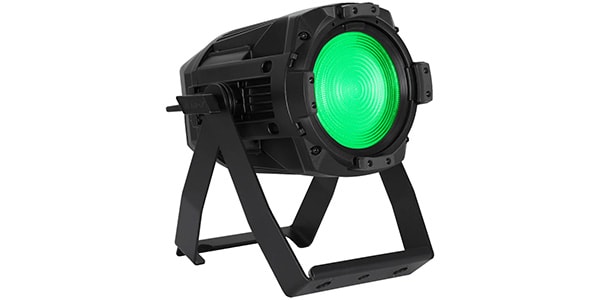

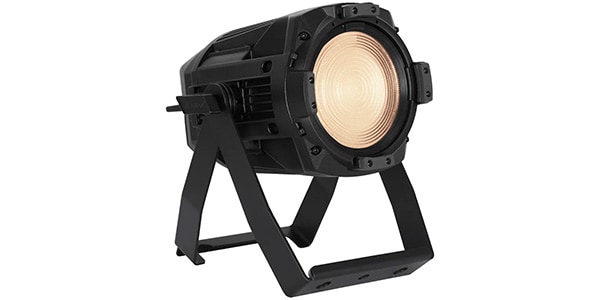

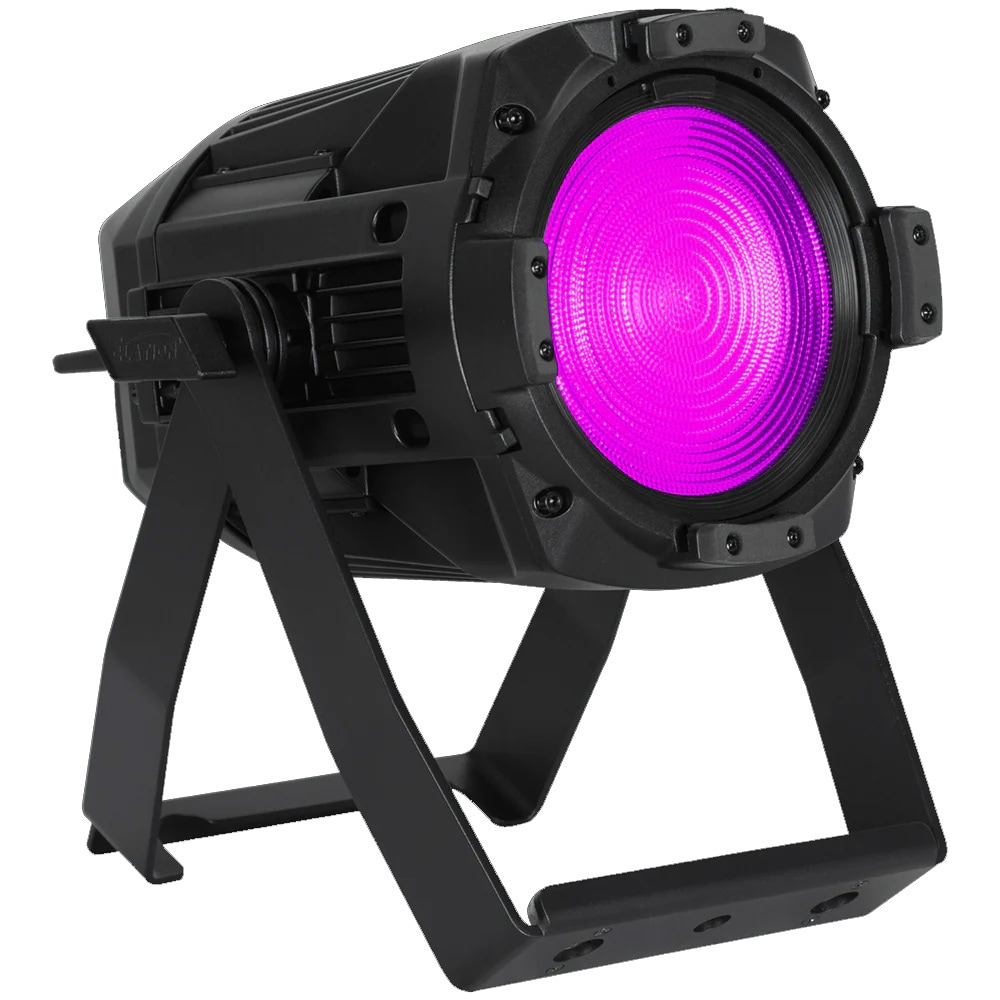

＜＜Aug 2025 New Product！＞＞ The KL PAR IP COMPACT is a compact, high-performance LED light that can be used indoors or outdoors. It is IP65 waterproof and boasts an RGBMA engine that delivers a maximum brightness of 5,474 lumens. Its high color reproducibility and CCT adjustment function make it ideal for video and stage productions. Its flexible operation allows for easy setup.

■ Light Source
- 150W 6000K RGBMA LED engine
- Average LED lifespan: Approximately 30,000 hours
*Lifespan may vary depending on environmental conditions, voltage, usage patterns (on/off frequency), control/dimming method, etc.

■ Photometry Data
- Total Luminous Flux: 5,700 lumens (integrating sphere measurement)
- CRI (Color Rendering Index): 94.9
- TLCI (Television Lighting Consistency Index): 95

■ Included Lens (Beam Angle)
- VNSP: 10°
- NSP: 22°
- MFL: 30°
- WFL: 55°

■ Effects
- Variable Strobe Speed: 1-20Hz
- Dim-to-Warm / Red Shift Emulation
- Variable 16-bit Dimming Mode & Curve

■ Color
- RGBMA Color Array
- CMY Emulation
- Variable CCT (Color Temperature): 2400K-8500K (16-bit control)
- Green/Magenta Shift
- Virtual Gel Swatchbook

■ Control / Connection
- DMX Channel Modes: 8 (1, 4, Channels 6, 10, 11, 19, 9, and 15)
- Manual and DMX-controlled dimming and color settings
- Single touch bar encoder
- 4-button control panel, LED display
- RDM
- NFC configuration support

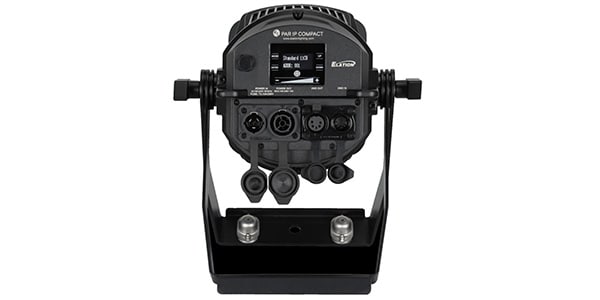

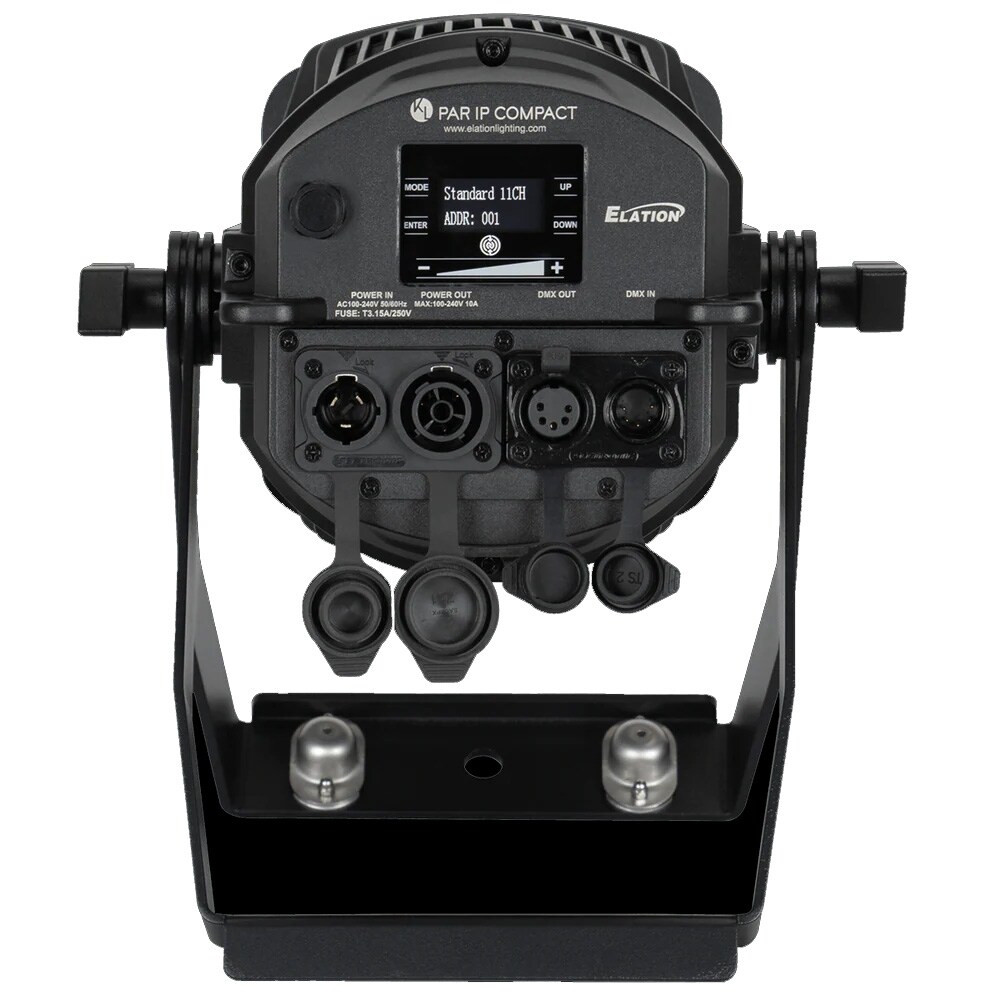

- IP65 5-pin DMX input/output, IP65 locking power cable input/output

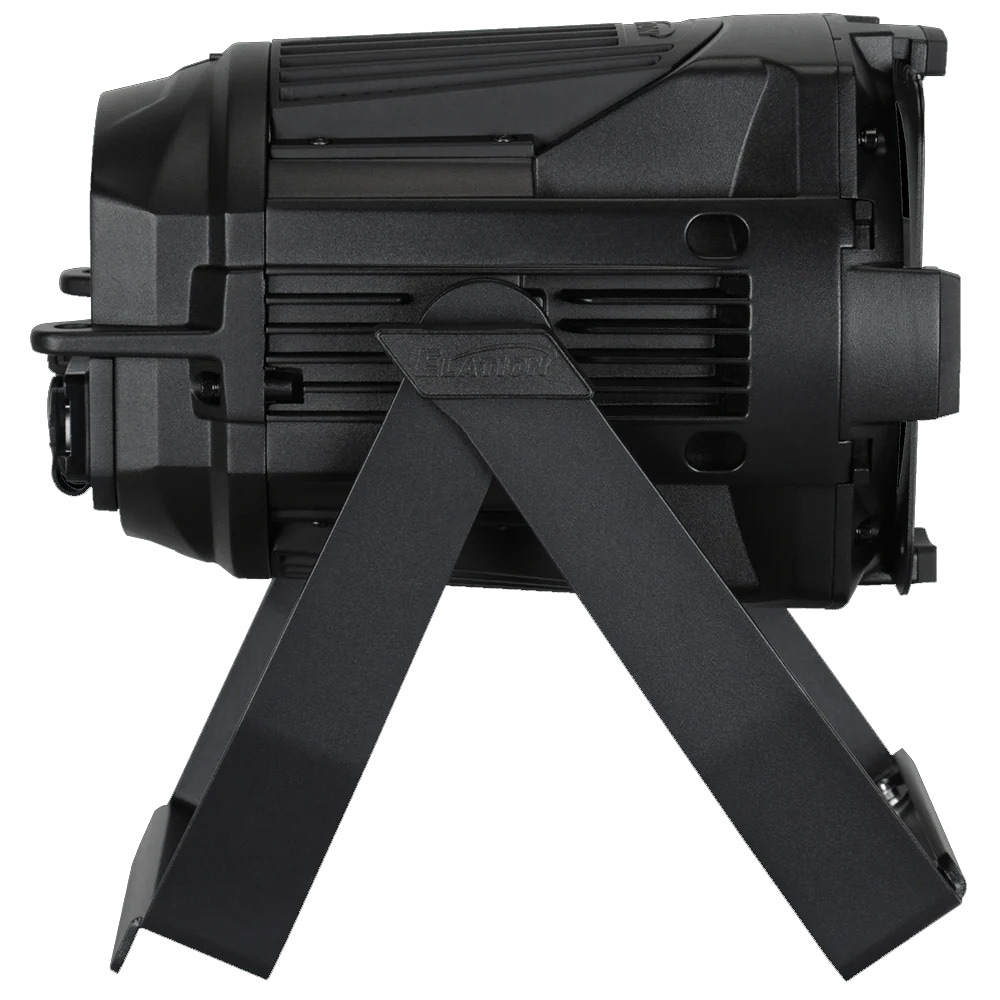

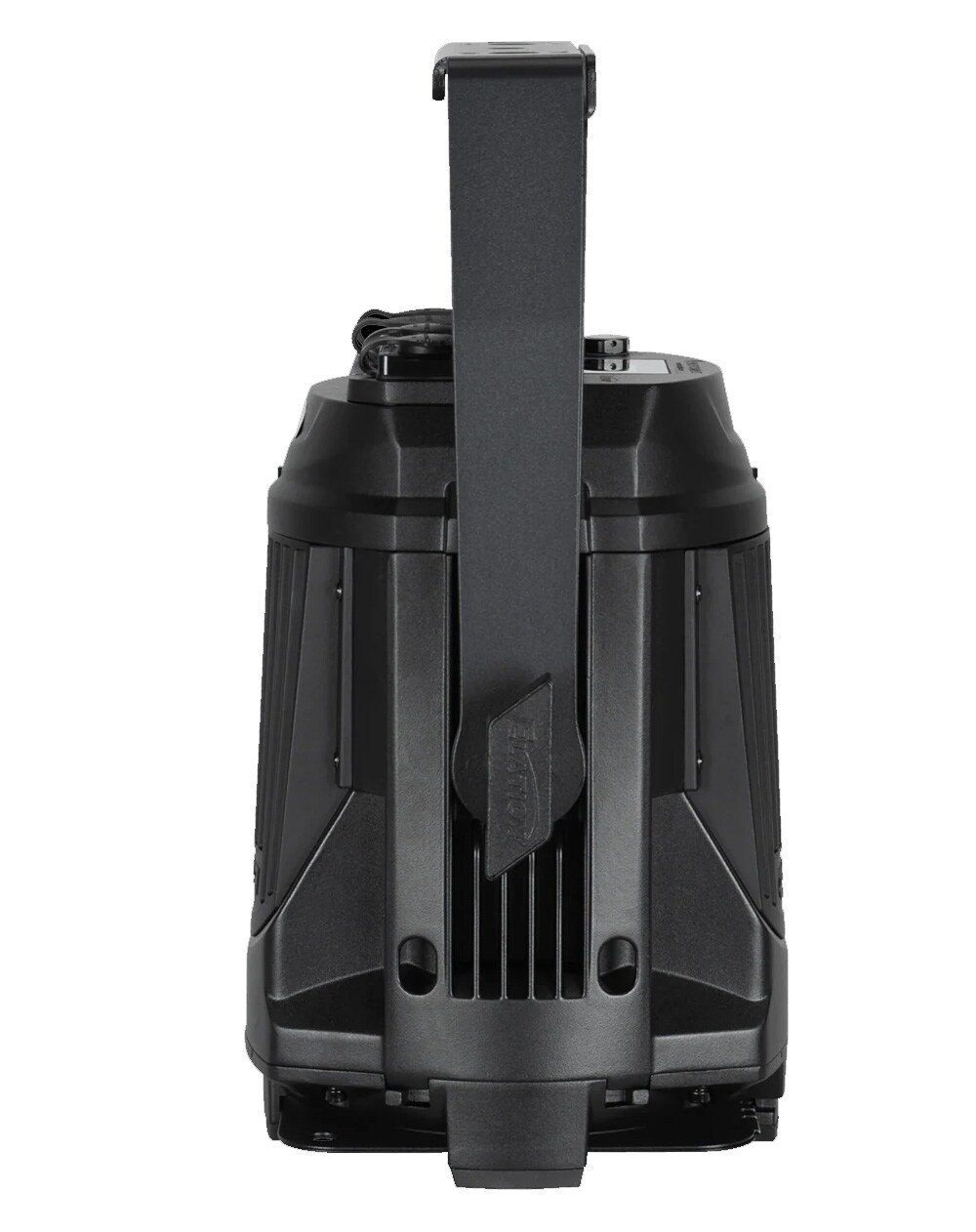

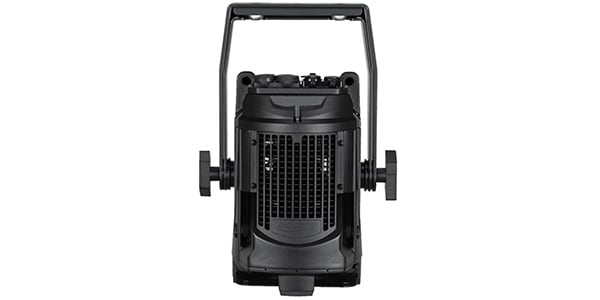

■ Size/Weight
- Unit Length: 183mm
- Yoke Horizontal Length: 362mm
- Width: 257mm
- Unit Height: 183mm
- Yoke Vertical Height: 361mm
- Weight: Approximately 5.5kg

■ Electrical/Thermal Specifications
- Power Supply: AC 100/50/60Hz
- Maximum Power Consumption: 200W
- Operating Temperature Range: -15°C to 45°C (5°F to 113°F)

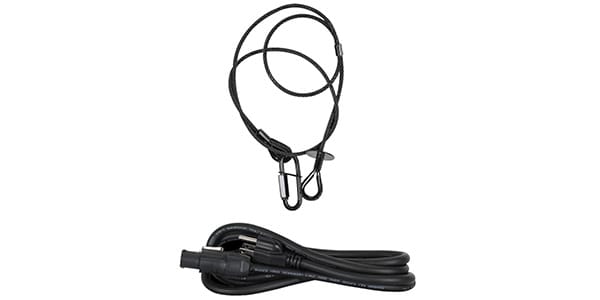

■ Accessories
- Gel Frame
- Safety Cable

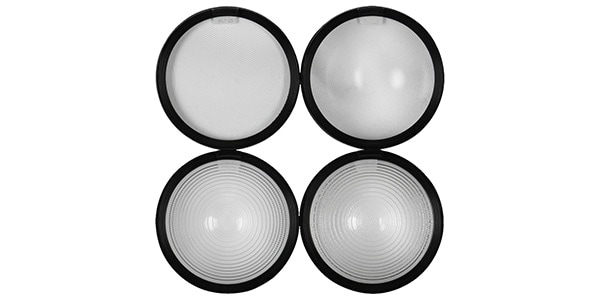

- 4 Lenses (10°, 22°, 30°, 55°)
- IP65 Locking Power Cable

■ Optional Accessories
- 6.25"" Barn Door
- Omega Bracket
- ​​4-Wire Hardwired Mounting Plate (HWP404)
- 2-Wire Hardwired Mounting Plate (HWP202)

■ Certifications/Protection Ratings
- CE | cETLus | IP65 | FCC | UKCA
