Franklin Audio / SS-6MKII

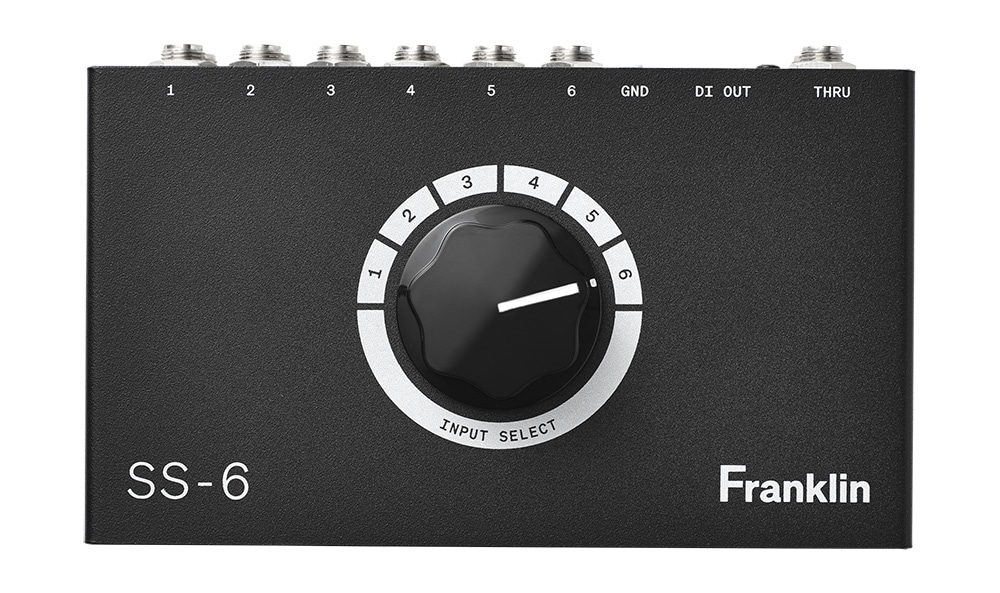

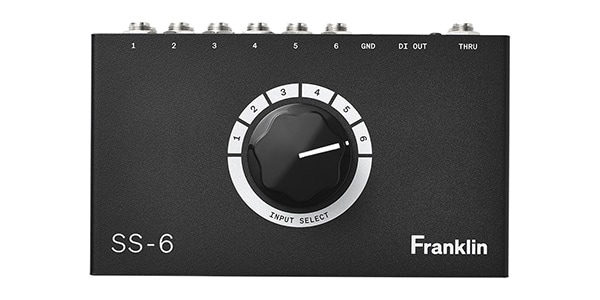

The SS-6 MKII is a passive DI box with six switchable stereo inputs. It allows you to connect multiple instruments at once and easily switch between them with a single selector. Equipped with a custom transformer, it delivers clear sound quality and noise-free output. It also features a thru-out terminal for flexible routing.

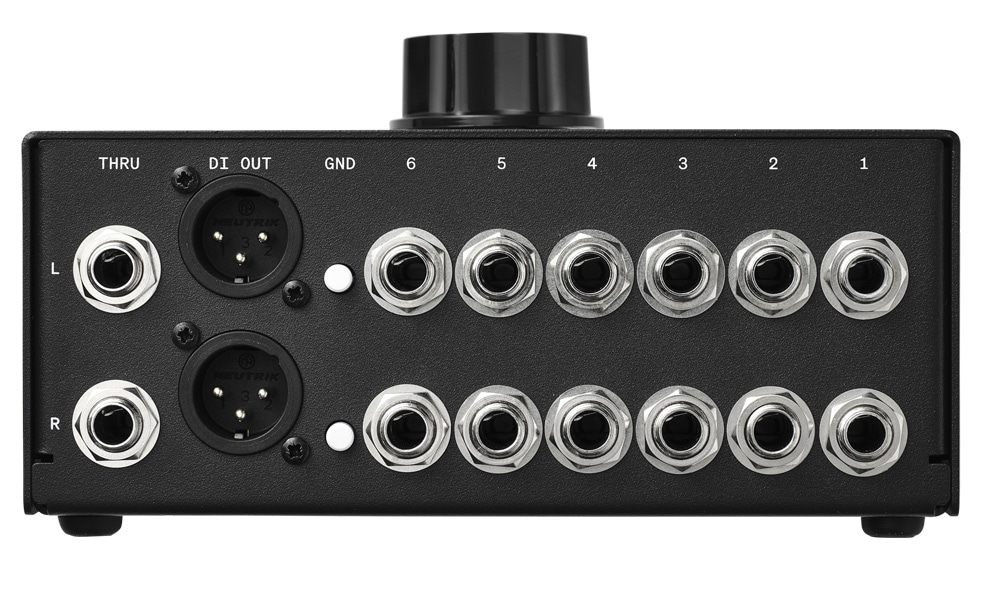

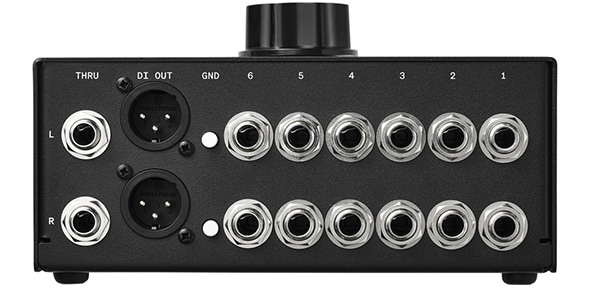

■Input: 6 x Stereo / 12 x Mono TS Jacks

■Output: Stereo Balanced XLR + Stereo Thru TS Jack

■Passive configuration with Franklin Audio custom transformers

■Heavy-duty 1.5mm folded steel enclosure

■Designed and handmade in Sydney

■Frequency response: 10Hz-40kHz +/-1dB

■S/N ratio: >90dB

■THD: <0.001%

■DI circuit attenuation: 20dB

■Weight: 1.25kg

■Dimensions: 165mm(L) x 100mm(D) x 92mm(H)
