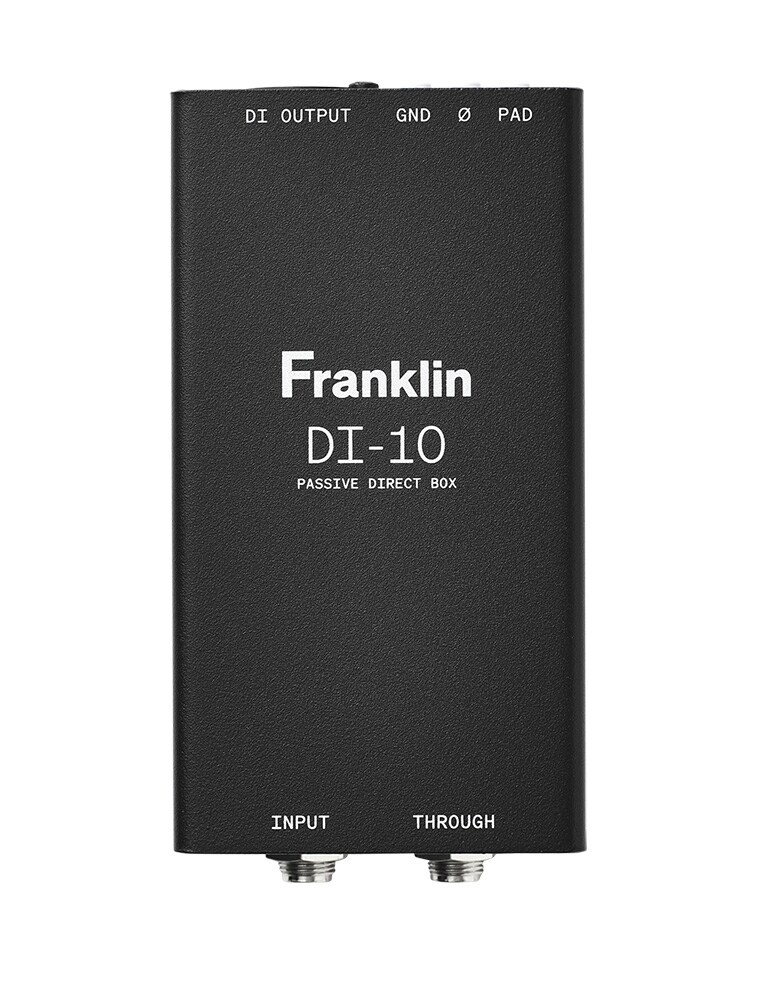

Franklin Audio / DI-10

The DI-10 is a passive DI box equipped with a custom Franklin Audio ""FA-2"" transformer. It delivers high-quality sound without requiring a power supply, faithfully reproducing the natural tone of guitars and basses. Its compact, low-profile design makes it exceptionally easy to handle in studios and on stage. A simple yet highly reliable unit.

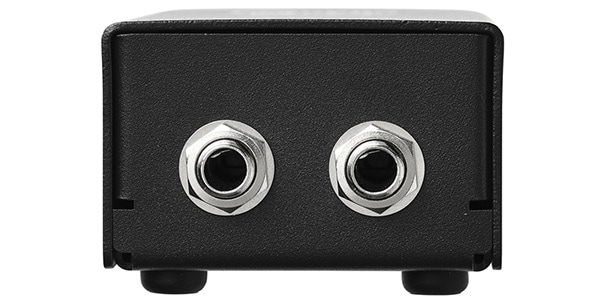

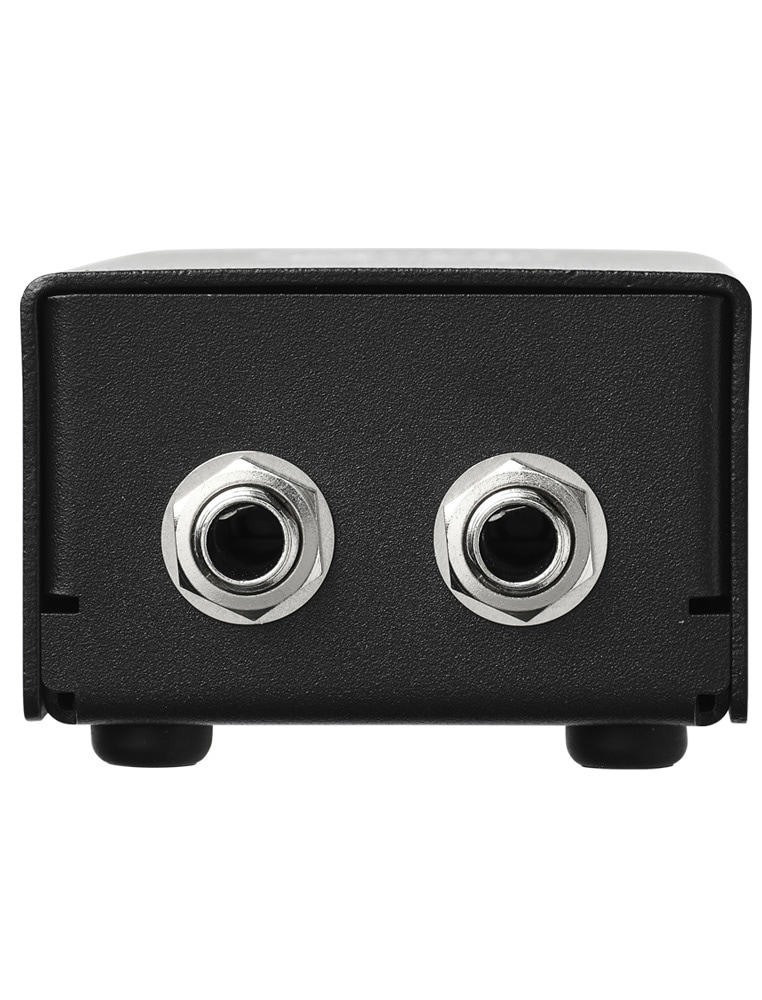

■Input: 1 x TS 1/4″ Neutrik? instrument jack

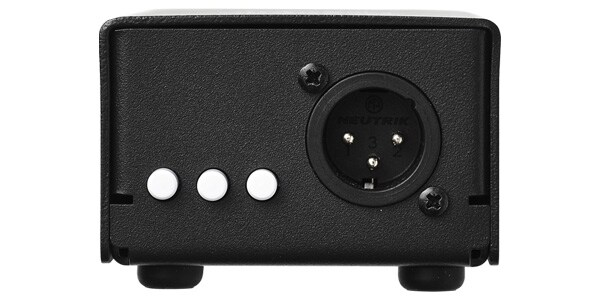

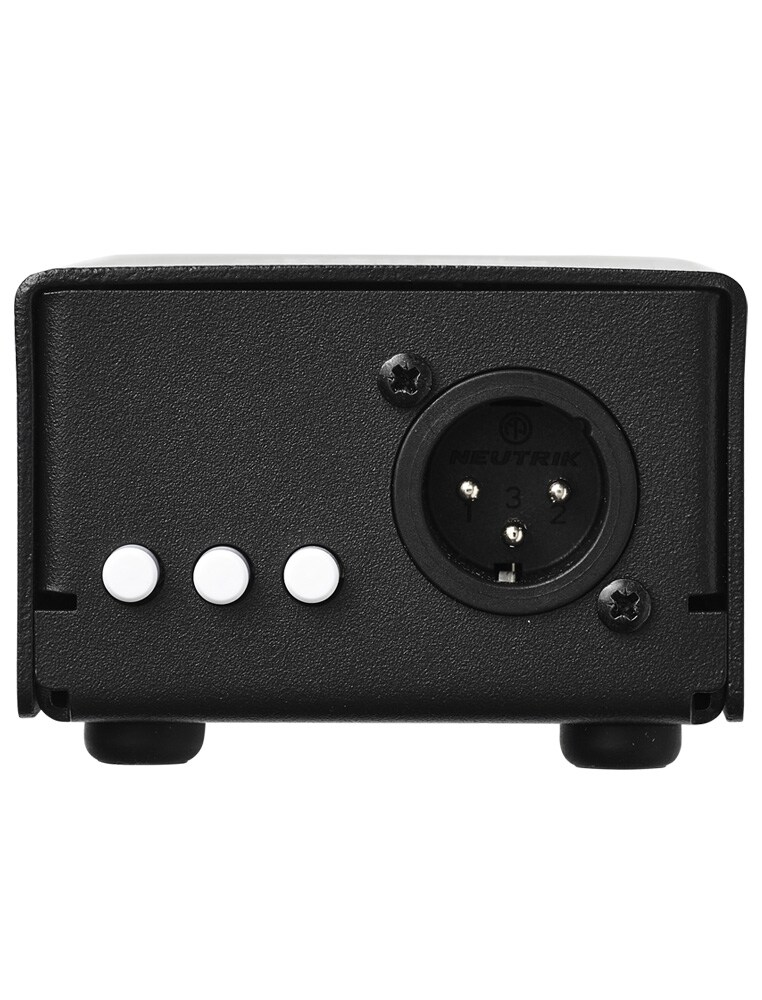

■Output: 2 x Mono Neutrik? balanced XLR connectors + 1 x TS 1/4″ Neutrik? thru-jack

■Passive configuration with Franklin Audio custom transformer

■Heavy-duty 1.5mm folded steel enclosure

■Designed and handmade in Sydney

■Weight: 0.236kg

■Dimensions: 116mm(L) x 95mm(D) x 63mm(H)
