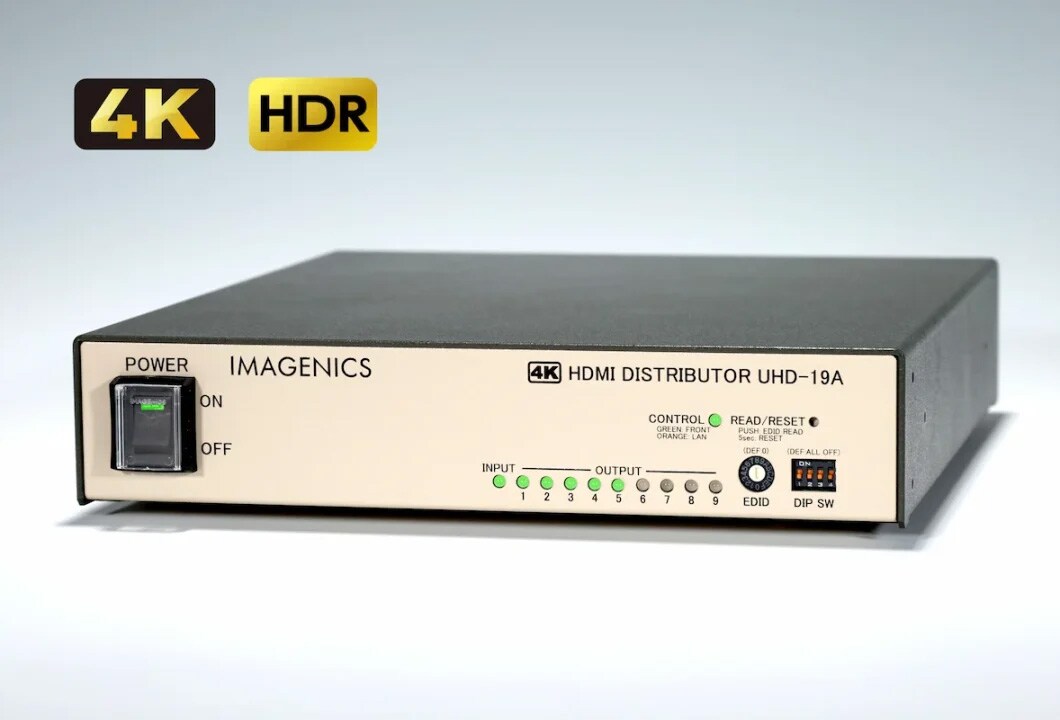

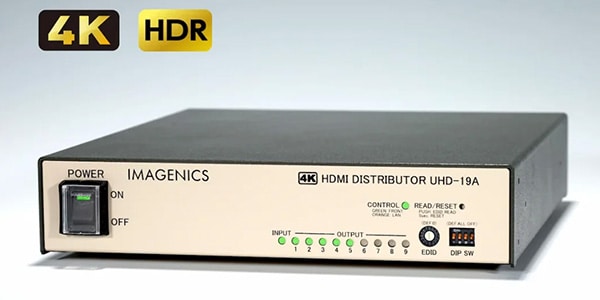

IMAGENICS / UHD-19A

＜＜Aug 2025 New Product！＞＞ This multi-functional HDMI splitter with one input and nine outputs supports 4K resolution HDMI signals. Each output channel is equipped with 4K → FHD down-conversion and color space conversion.

■1 Input, 9 Output HDMI Splitter
■Video Signal Format
TMDS Single Link Signal (HDMI and DVI)
Supported Resolutions: 480i–1080p, 4K60/4:4:4/VGA–UXGA, and WUXGA (Reduced Blanking)
Supported Pixel Clock Rates: 25MHz–600MHz
Supported TMDS Data Rates: 0.75Gbps–18Gbps
HDCP 1.4/2.2 Support, Deep Color (up to 36-bit), HDR Support
■Video Input Terminal:

HDMI Type A 19-pin Connector (x1)

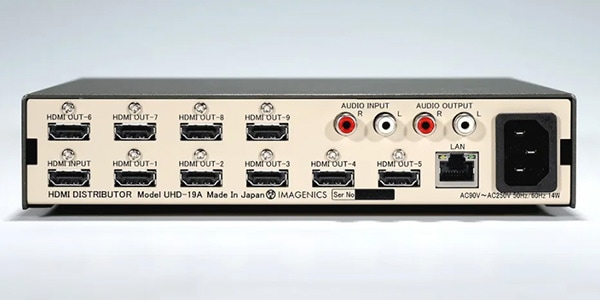

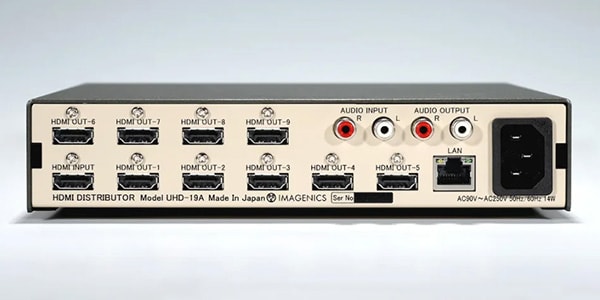

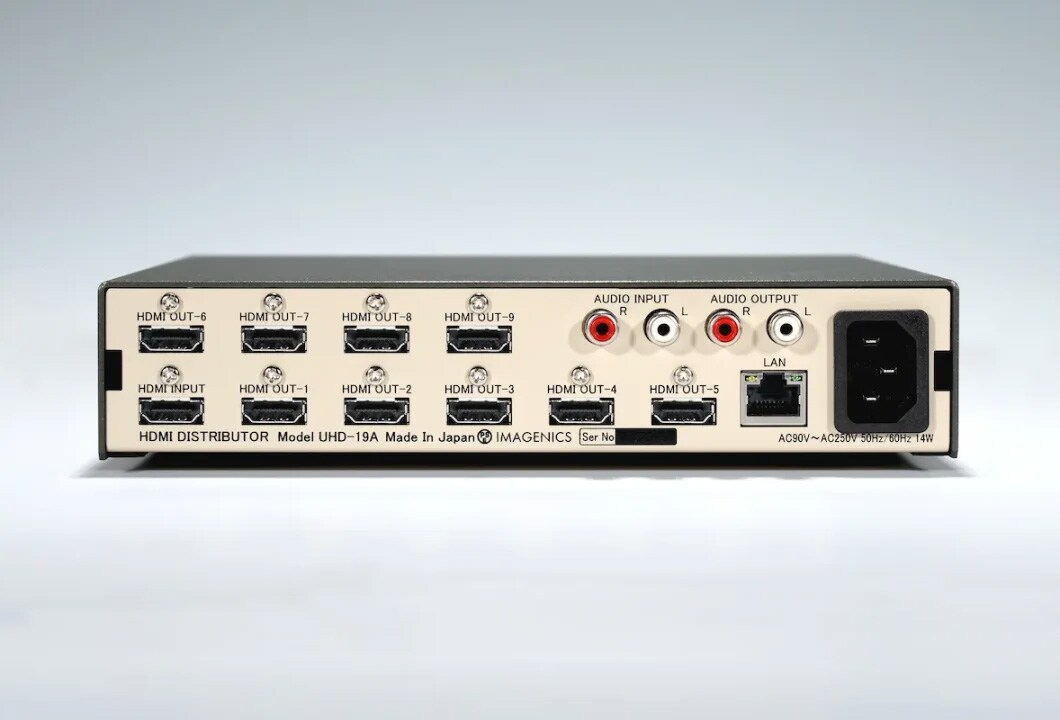

■Video Output Terminal:

HDMI Type A 19-pin Connector (x9)
■Size: 210(W) x 44(H) x 230(D) mm (excluding protrusions)
■Weight: Approx. 1.9 kg
■Accessories:
Japan-use power cable (with 3P-3SL and 3P-2P conversion plugs) 1 cable
HDMI Cable Lock Kit (CL-2) - 10 pairs
■1 Input 9 Output HDMI Splitter
■Video Signal System
TMDS Single Link Signal (HDMI and DVI)
Supported Resolutions: 480i-1080p, 4K60/4:4:4/VGA-UXGA, and WUXGA (Reduced Blanking)
Supported Pixel Clock Rates: 25MHz-600MHz
Supported TMDS Data Rates: 0.75Gbps-18Gbps
HDCP 1.4/2.2 Supported, Deep Color (up to 36-bit), HDR Supported
■Video Input Terminal:

HDMI Type A 19-pin Connector (x1)
■Video Output Terminal:

HDMI Type A 19-pin Connector (x9)
■Size: 210(W) x 44(H) x 230(D) mm (excluding protrusions)
■Weight: Approx. 1.9 kg
■Accessories ：
1 domestic power cable (with 3P-3SL and 3P-2P conversion plugs)
10 pairs of HDMI cable retention brackets (CL-2)
