MELLOTRON / Micro Module

The Mellotron Micro Module is a micro desktop version of the Mellotron M4000D digital Mellotron developed by Mellotron in Stockholm, Sweden. The Mellotron M4000D is a micro desktop version of the Mellotron M4000D digital Mellotron, developed by Mellotron in Stockholm, Sweden.

The body is made of sturdy and lightweight aluminum, realizing a portable size and an astonishingly light weight of 683g. The Mellotron can be easily installed anywhere and can be used anywhere. In the studio, the Mellotron fits beautifully around a desk thanks to its compact size, and can be used to instantly start up original tape sounds for production purposes. For live performances, the Mellotron can be combined with your MIDI keyboard or stage piano to deliver authentic Mellotron sounds at will. Smooth tone switching with no load times makes it suitable for a wide range of applications, from production to performance.

The Mellotron Micro Module is the smallest and lightest design in the Mellotron series to date. It can be installed anywhere, even in limited work space or mobile environments. The Mellotron Micro Module may be compact in size, but at the heart of it is a high-definition sound engine, similar to the M4000D/Micro, that contains all of the iconic sounds of the Mellotron series. The Mellotron's iconic sounds are fully integrated into the instrument. No complicated menu operations are required, allowing anyone to concentrate on playing and creating sounds right away.


Uncompressed 24-bit sampling from legendary master tapes
100 legendary sounds from Mellotron & Chamberlin
100 legendary sounds from the vast collection of Mellotron and Chamberlin master tapes copyrighted by Mellotron, Inc. The 100 legendary sounds are carefully selected from Mellotron's vast collection of copyrighted Mellotron and Chamberlin master tapes. Every key has been carefully sampled in uncompressed 24-bit without compromise. The master tapes were played back on the company's brand new Mellotron MkVI, and the audio was recorded at 7.5 to 9.0 seconds of audio without looping, making it the best-sounding audio in the world. Flash memory is used for file storage, eliminating annoying loading times and allowing for instantaneous switching of many tones.

The Mellotron Micro Module can be operated in the same way as a tape playback Mellotron (M400 or Mk VI). Just as the original allows simultaneous playback of adjacent tracks (track A and B, or track B and C) depending on the position of the tape head, the Mellotron Micro Module allows the mix balance of each track to be adjusted using the Mix knob. The Mellotron Micro Module has a Mix knob that allows the user to adjust the mix balance of each track.

The Mellotron Micro Module is not equipped with a sound card slot and is not compatible with the Mellotron Sound Card series.

Models and number of voices
Mellotron Mk I: 15 voices
Mellotron Mk II: 18 voices
Mellotron M300: 6 voices
Mellotron M400: 26 voices
Chamberlin M1: 17 voices
Chamberlin Music Master: 18 voices

Mellotron Mellotron Sound Card 01
Playlist mode for convenient performance
Favorites function and sorting for quick access to the sounds you want
Mellotron Micro Module allows you to assign any sound to track A/B and play it respectively Mellotron Micro Module has a manual mode for assigning and playing any sound on track A/B. The Mellotron Micro Module has a Manual Mode, in which any sound can be assigned to Track A/B, and a List Mode, in which all sounds assigned to Track A/B can be memorized and managed at once, making it convenient for live performances. In manual mode and list mode, sounds can be sorted by model and tone category, including the favorite function, making it easy to select sounds according to the application.

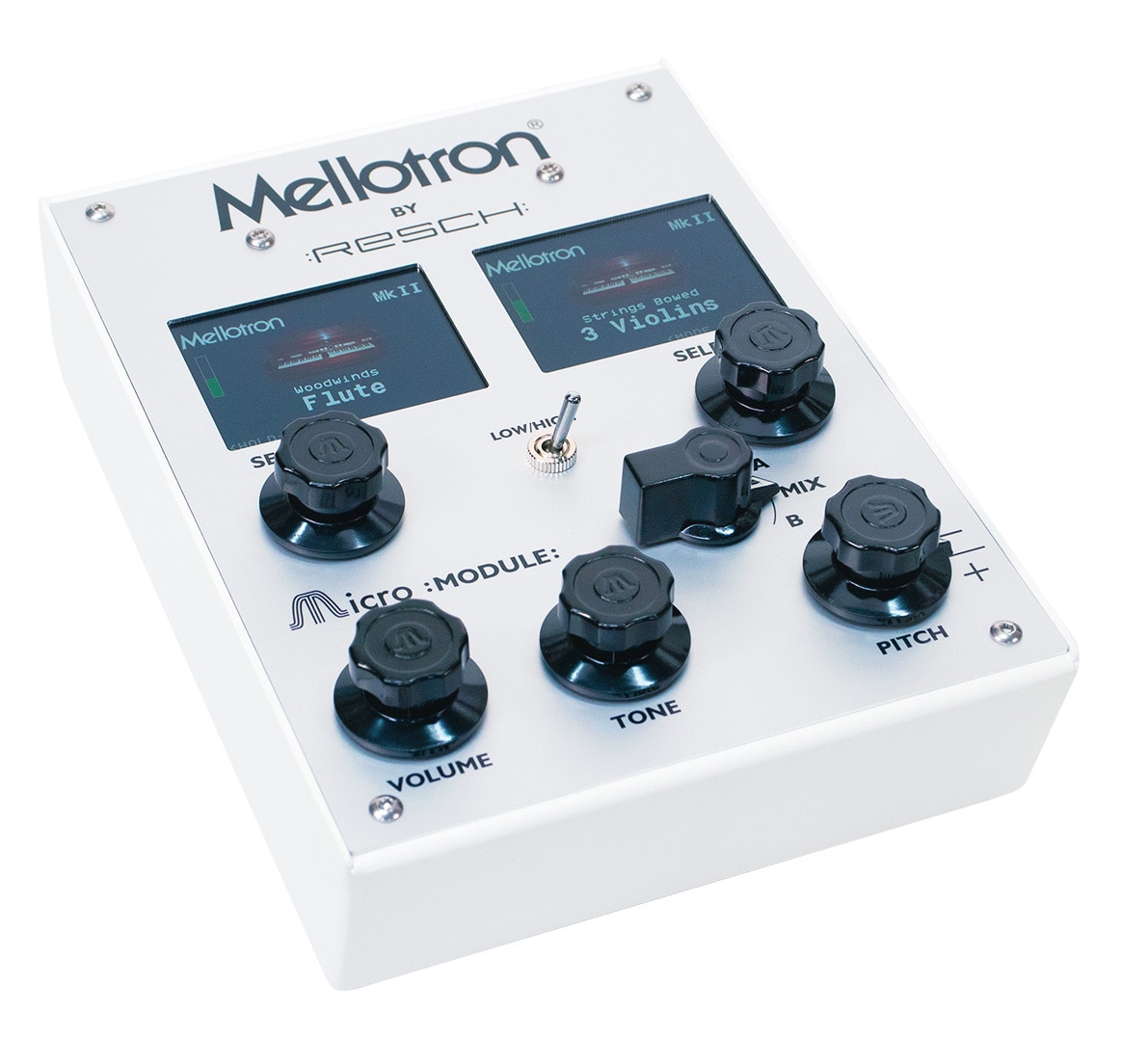

Control Panel
Equipped with two highly visible TFT color LCDs
The control panel is equipped with two TFT color LCDs that display beautiful images. The control panel is equipped with two TFT color LCDs that display beautiful graphics of the sampling source and selected parameters.

Hi/Low switch
The Mellotron Micro Module is equipped with a Hi/Low switch, similar to the M4000D series. It replicates the tape playback speed changes of the original Mellotron, with the Low position lowering the pitch by one octave and doubling the playback time. This is different from a simple transpose, and brings about a rich textural change unique to tape.

Specifications
Product Details

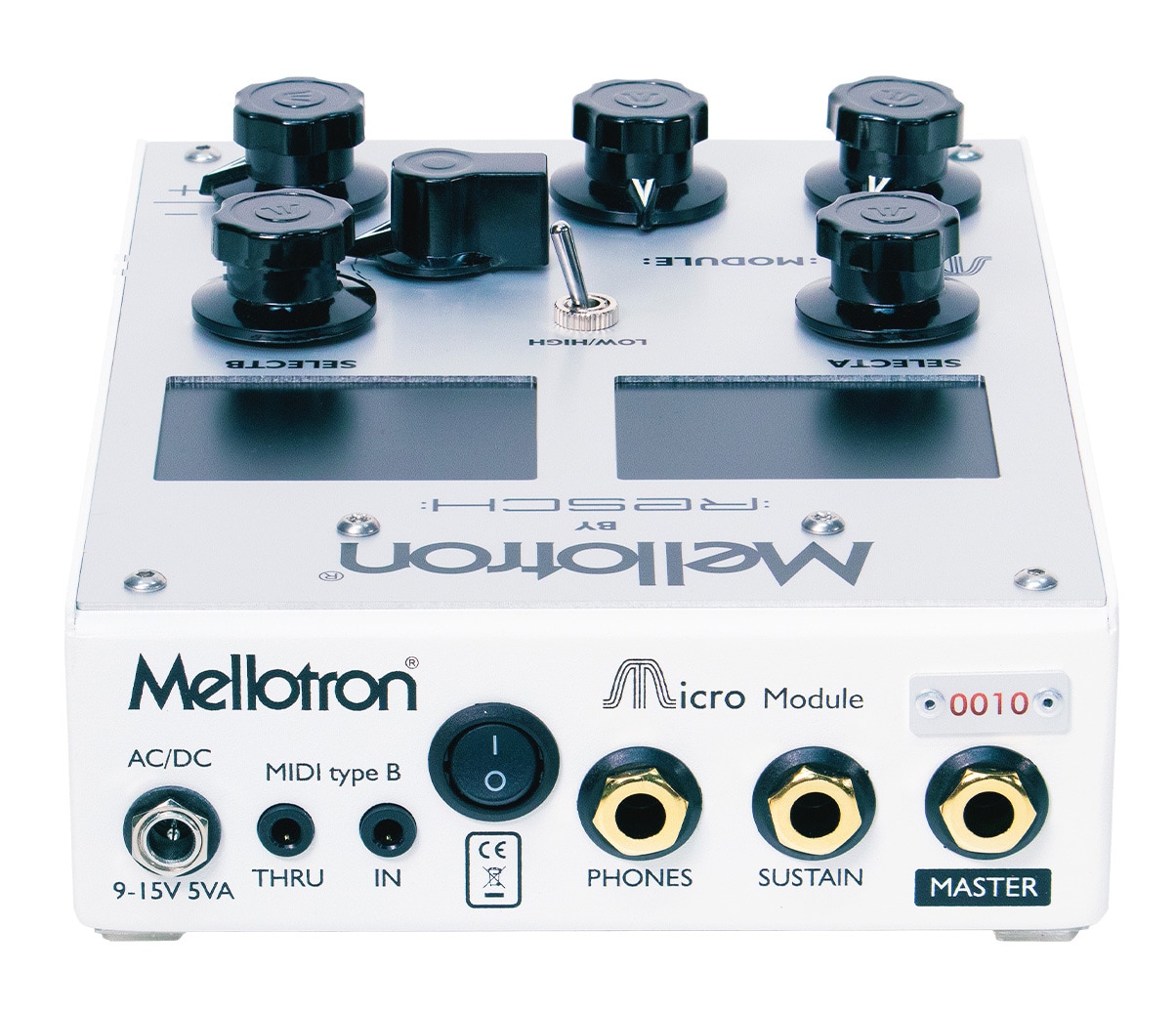

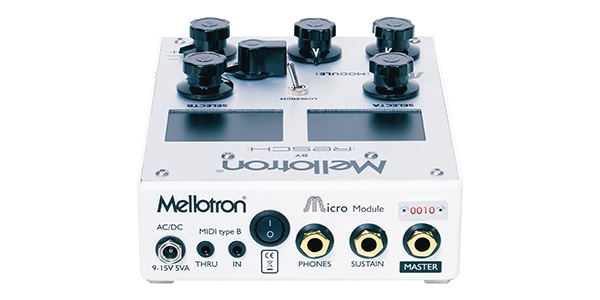

Audio: 6.3mm Standard Jack Unbalanced Line Output (MASTER), Phone Output
MIDI Connectors: IN, THRU (both TRS Type-B)
Other Connectors: Sustain Pedal
Dimensions: 133 ( w) x 187 (d) x 64 (h) mm (largest part)
Weight: 683 g
